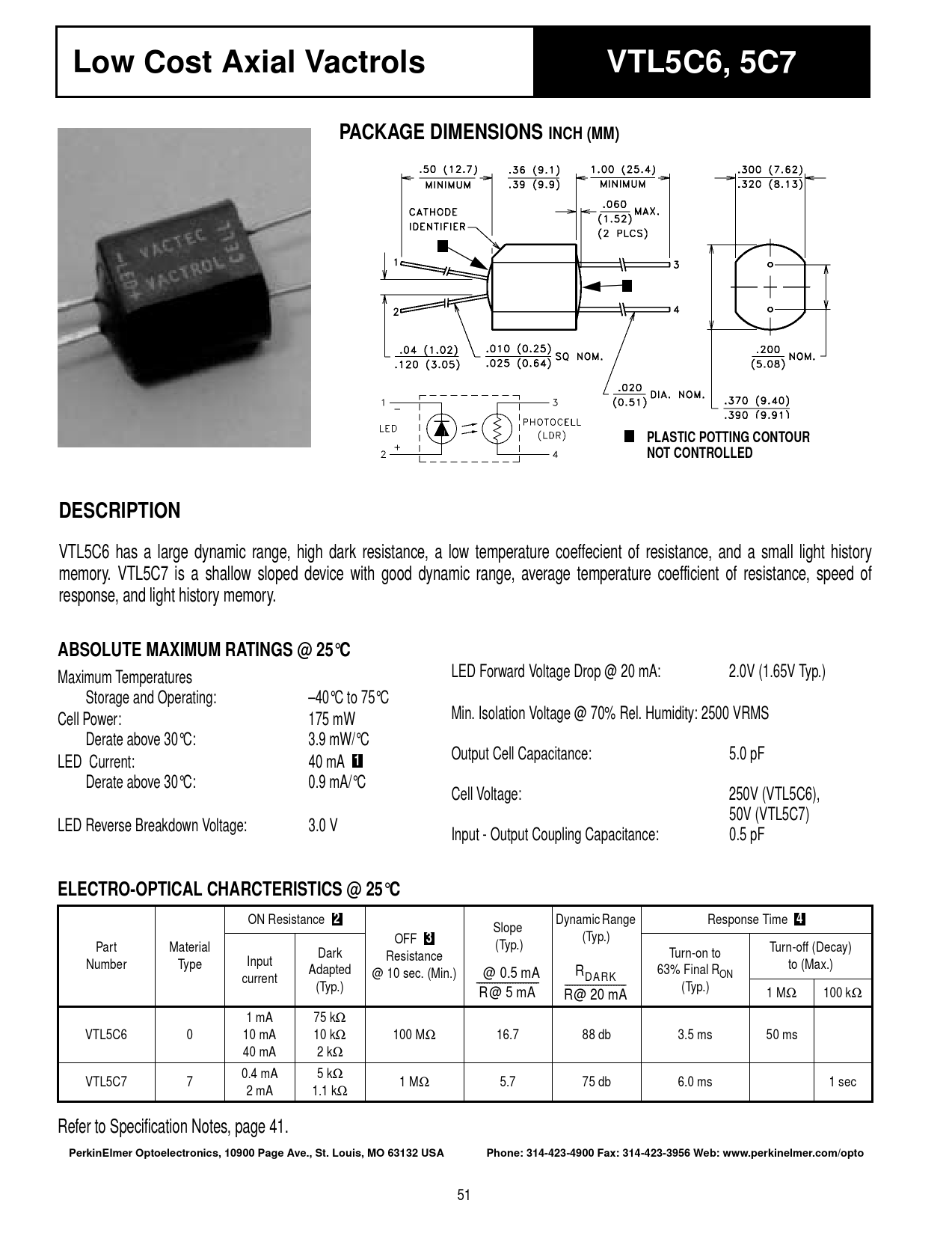

Low Cost Axial Vactrols VTL5C6, 5C7 PACKAGE DIMENSIONS INCH (MM) PLASTIC POTTING CONTOUR NOT CONTROLLED DESCRIPTION
VTL5C6 has a large dynamic range, high dark resistance, a low temperature coeffecient of resistance, and a small light history memory. VTL5C7 is a shallow sloped device with good dynamic range, average temperature coefficient of resistance, speed of response, and light history memory.
ABSOLUTE MAXIMUM RATINGS @ 25°C
Maximum Temperatures LED Forward Voltage Drop @ 20 mA: 2.0V (1.65V Typ.) Storage and Operating: –40°C to 75°C Cel Power: 175 mW Min. Isolation Voltage @ 70% Rel. Humidity: 2500 VRMS Derate above 30°C: 3.9 mW/°C Output Cel Capacitance: 5.0 pF LED Current: 40 mA
1
Derate above 30°C: 0.9 mA/°C Cel Voltage: 250V (VTL5C6), 50V (VTL5C7) LED Reverse Breakdown Voltage: 3.0 V Input - Output Coupling Capacitance: 0.5 pF
ELECTRO-OPTICAL CHARCTERISTICS @ 25°C
ON Resistance
2
Dynamic Range Response Time
4
Slope OFF
3
(Typ.) Part Material (Typ.) Dark Turn-off (Decay) Resistance Turn-on to Number Type Input Adapted to (Max.) @ 10 sec. (Min.) R 63% Final R current @ 0.5 mA ON DARK (Typ.) ------------ ------------ (Typ.) R@ 5 mA R@ 20 mA 1 MΩ 100 kΩ 1 mA 75 kΩ VTL5C6 0 10 mA 10 kΩ 100 MΩ 16.7 88 db 3.5 ms 50 ms 40 mA 2 kΩ 0.4 mA 5 kΩ VTL5C7 7 2 mA 1.1 kΩ 1 MΩ 5.7 75 db 6.0 ms 1 sec Refer to Specification Notes, page 41.
PerkinElmer Optoelectronics, 10900 Page Ave., St. Louis, MO 63132 USA Phone: 314-423-4900 Fax: 314-423-3956 Web: www.perkinelmer.com/opto
51
