Datasheet CTX100 (Eaton) - 2
| Fabricante | Eaton |
| Descripción | LCPI Toroid power inductors |
| Páginas / Página | 6 / 2 — Product Specifications. Vertical. Horizontal. Header Mounted. OCL(1). I … |
| Formato / tamaño de archivo | PDF / 550 Kb |
| Idioma del documento | Inglés |
Product Specifications. Vertical. Horizontal. Header Mounted. OCL(1). I DC(2). I SAT(3). Volt-µsec(4). Energy(5). DCR (. )(6). Part Number
Línea de modelo para esta hoja de datos
Versión de texto del documento

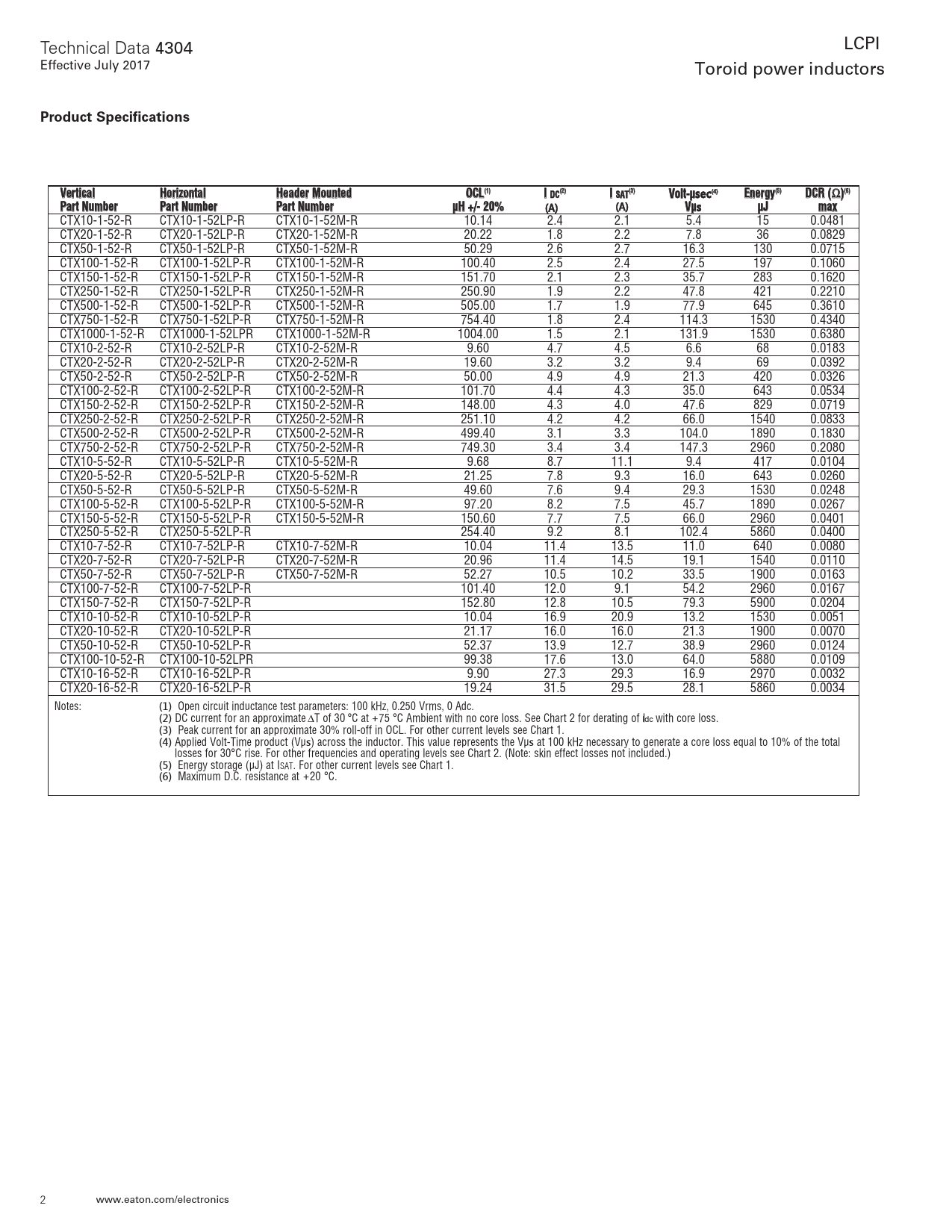

Technical Data 4304 LCPI Effective July 2017 Toroid power inductors
Product Specifications Vertical Horizontal Header Mounted OCL(1) I DC(2) I SAT(3) Volt-µsec(4) Energy(5) DCR (
Ω
)(6) Part Number Part Number Part Number µH +/- 20% Vµ (A) (A) s µJ max
CTX10-1-52-R CTX10-1-52LP-R CTX10-1-52M-R 10.14 2.4 2.1 5.4 15 0.0481 CTX20-1-52-R CTX20-1-52LP-R CTX20-1-52M-R 20.22 1.8 2.2 7.8 36 0.0829 CTX50-1-52-R CTX50-1-52LP-R CTX50-1-52M-R 50.29 2.6 2.7 16.3 130 0.0715 CTX100-1-52-R CTX100-1-52LP-R CTX100-1-52M-R 100.40 2.5 2.4 27.5 197 0.1060 CTX150-1-52-R CTX150-1-52LP-R CTX150-1-52M-R 151.70 2.1 2.3 35.7 283 0.1620 CTX250-1-52-R CTX250-1-52LP-R CTX250-1-52M-R 250.90 1.9 2.2 47.8 421 0.2210 CTX500-1-52-R CTX500-1-52LP-R CTX500-1-52M-R 505.00 1.7 1.9 77.9 645 0.3610 CTX750-1-52-R CTX750-1-52LP-R CTX750-1-52M-R 754.40 1.8 2.4 114.3 1530 0.4340 CTX1000-1-52-R CTX1000-1-52LPR CTX1000-1-52M-R 1004.00 1.5 2.1 131.9 1530 0.6380 CTX10-2-52-R CTX10-2-52LP-R CTX10-2-52M-R 9.60 4.7 4.5 6.6 68 0.0183 CTX20-2-52-R CTX20-2-52LP-R CTX20-2-52M-R 19.60 3.2 3.2 9.4 69 0.0392 CTX50-2-52-R CTX50-2-52LP-R CTX50-2-52M-R 50.00 4.9 4.9 21.3 420 0.0326 CTX100-2-52-R CTX100-2-52LP-R CTX100-2-52M-R 101.70 4.4 4.3 35.0 643 0.0534 CTX150-2-52-R CTX150-2-52LP-R CTX150-2-52M-R 148.00 4.3 4.0 47.6 829 0.0719 CTX250-2-52-R CTX250-2-52LP-R CTX250-2-52M-R 251.10 4.2 4.2 66.0 1540 0.0833 CTX500-2-52-R CTX500-2-52LP-R CTX500-2-52M-R 499.40 3.1 3.3 104.0 1890 0.1830 CTX750-2-52-R CTX750-2-52LP-R CTX750-2-52M-R 749.30 3.4 3.4 147.3 2960 0.2080 CTX10-5-52-R CTX10-5-52LP-R CTX10-5-52M-R 9.68 8.7 11.1 9.4 417 0.0104 CTX20-5-52-R CTX20-5-52LP-R CTX20-5-52M-R 21.25 7.8 9.3 16.0 643 0.0260 CTX50-5-52-R CTX50-5-52LP-R CTX50-5-52M-R 49.60 7.6 9.4 29.3 1530 0.0248 CTX100-5-52-R CTX100-5-52LP-R CTX100-5-52M-R 97.20 8.2 7.5 45.7 1890 0.0267 CTX150-5-52-R CTX150-5-52LP-R CTX150-5-52M-R 150.60 7.7 7.5 66.0 2960 0.0401 CTX250-5-52-R CTX250-5-52LP-R 254.40 9.2 8.1 102.4 5860 0.0400 CTX10-7-52-R CTX10-7-52LP-R CTX10-7-52M-R 10.04 11.4 13.5 11.0 640 0.0080 CTX20-7-52-R CTX20-7-52LP-R CTX20-7-52M-R 20.96 11.4 14.5 19.1 1540 0.0110 CTX50-7-52-R CTX50-7-52LP-R CTX50-7-52M-R 52.27 10.5 10.2 33.5 1900 0.0163 CTX100-7-52-R CTX100-7-52LP-R 101.40 12.0 9.1 54.2 2960 0.0167 CTX150-7-52-R CTX150-7-52LP-R 152.80 12.8 10.5 79.3 5900 0.0204 CTX10-10-52-R CTX10-10-52LP-R 10.04 16.9 20.9 13.2 1530 0.0051 CTX20-10-52-R CTX20-10-52LP-R 21.17 16.0 16.0 21.3 1900 0.0070 CTX50-10-52-R CTX50-10-52LP-R 52.37 13.9 12.7 38.9 2960 0.0124 CTX100-10-52-R CTX100-10-52LPR 99.38 17.6 13.0 64.0 5880 0.0109 CTX10-16-52-R CTX10-16-52LP-R 9.90 27.3 29.3 16.9 2970 0.0032 CTX20-16-52-R CTX20-16-52LP-R 19.24 31.5 29.5 28.1 5860 0.0034 Notes:
(1)
Open circuit inductance test parameters: 100 kHz, 0.250 Vrms, 0 Adc.
(2)
DC current for an approximate ∆T of 30 °C at
+
75 °C Ambient with no core loss. See Chart 2 for derating of IIdc with core loss.
(3)
Peak current for an approximate 30% roll-off in OCL. For other current levels see Chart 1.
(4)
Applied Volt-Time product (Vµ
s
) across the inductor. This value represents the Vµ
s
at 100 kHz necessary to generate a core loss equal to 10% of the total losses for 30°C rise. For other frequencies and operating levels see Chart 2. (Note: skin effect losses not included.)
(5)
Energy storage (µJ) at ISAT. For other current levels see Chart 1.
(6)
Maximum D.C. resistance at
+
20 °C. 2 www.eaton.com/electronics Document Outline Blank Page
