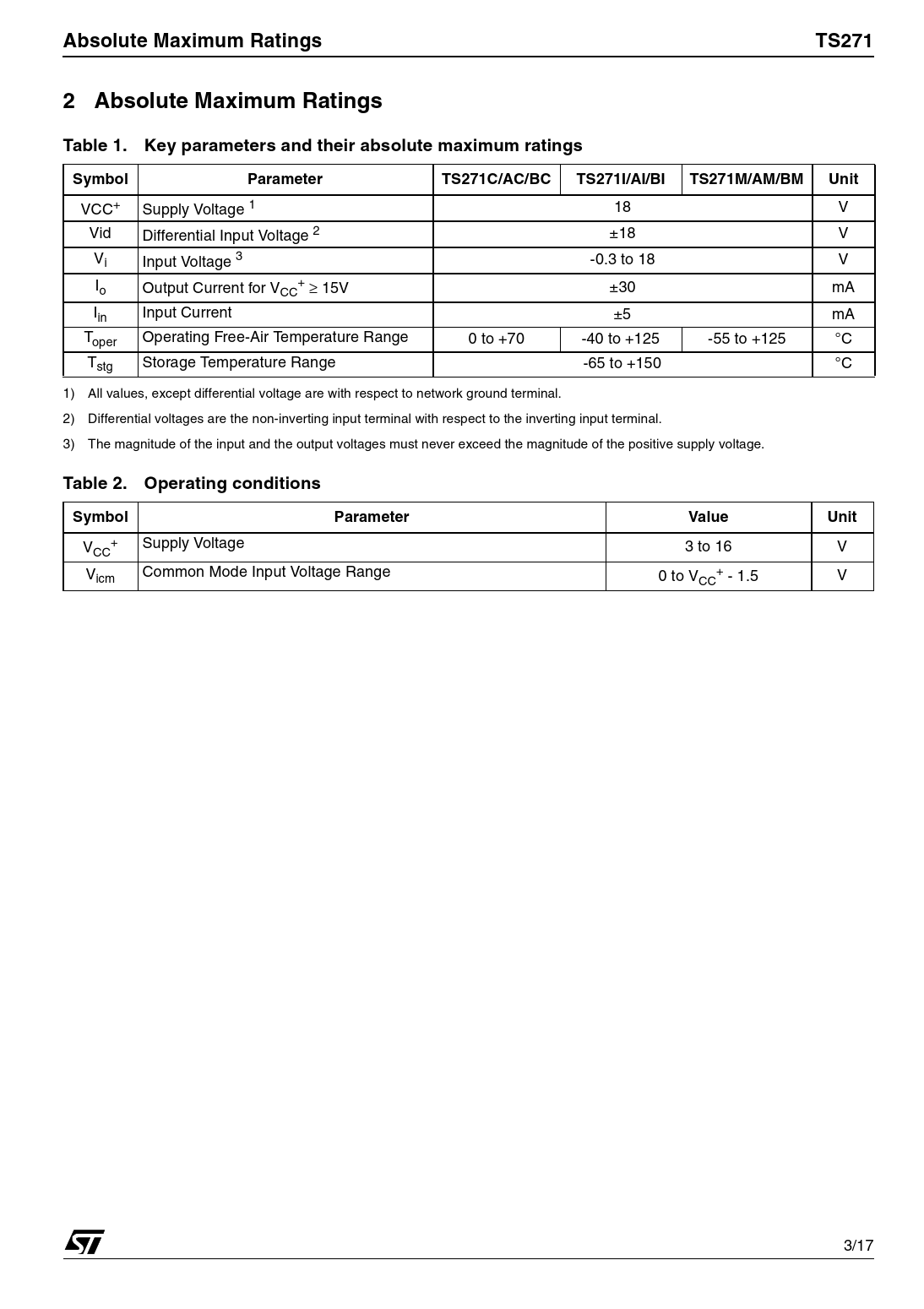

Absolute Maximum Ratings. TS271. 2 Absolute Maximum Ratings. Table 1. Key parameters and their absolute maximum ratings. Symbol
Línea de modelo para esta hoja de datos
Versión de texto del documento
Absolute Maximum Ratings TS271 2 Absolute Maximum Ratings Table 1. Key parameters and their absolute maximum ratings Symbol Parameter TS271C/AC/BC TS271I/AI/BI TS271M/AM/BM Unit
VCC+ Supply Voltage 1 18 V Vid Differential Input Voltage 2 ±18 V Vi Input Voltage 3 -0.3 to 18 V I + o Output Current for VCC ≥ 15V ±30 mA Iin Input Current ±5 mA Toper Operating Free-Air Temperature Range 0 to +70 -40 to +125 -55 to +125 °C Tstg Storage Temperature Range -65 to +150 °C 1) All values, except differential voltage are with respect to network ground terminal. 2) Differential voltages are the non-inverting input terminal with respect to the inverting input terminal. 3) The magnitude of the input and the output voltages must never exceed the magnitude of the positive supply voltage.
Table 2. Operating conditions Symbol Parameter Value Unit
V + Supply Voltage CC 3 to 16 V V Common Mode Input Voltage Range + icm 0 to VCC - 1.5 V 3/17 Document Outline 1 Block Diagram 2 Absolute Maximum Ratings 3 Electrical Characteristics 4 Electrical Characteristics 5 Electrical Characteristics 6 Package Mechanical Data 7 Revision History
VCC+ Supply Voltage 1 18 V Vid Differential Input Voltage 2 ±18 V Vi Input Voltage 3 -0.3 to 18 V I + o Output Current for VCC ≥ 15V ±30 mA Iin Input Current ±5 mA Toper Operating Free-Air Temperature Range 0 to +70 -40 to +125 -55 to +125 °C Tstg Storage Temperature Range -65 to +150 °C 1) All values, except differential voltage are with respect to network ground terminal. 2) Differential voltages are the non-inverting input terminal with respect to the inverting input terminal. 3) The magnitude of the input and the output voltages must never exceed the magnitude of the positive supply voltage.
Table 2. Operating conditions Symbol Parameter Value Unit
V + Supply Voltage CC 3 to 16 V V Common Mode Input Voltage Range + icm 0 to VCC - 1.5 V 3/17 Document Outline 1 Block Diagram 2 Absolute Maximum Ratings 3 Electrical Characteristics 4 Electrical Characteristics 5 Electrical Characteristics 6 Package Mechanical Data 7 Revision History
