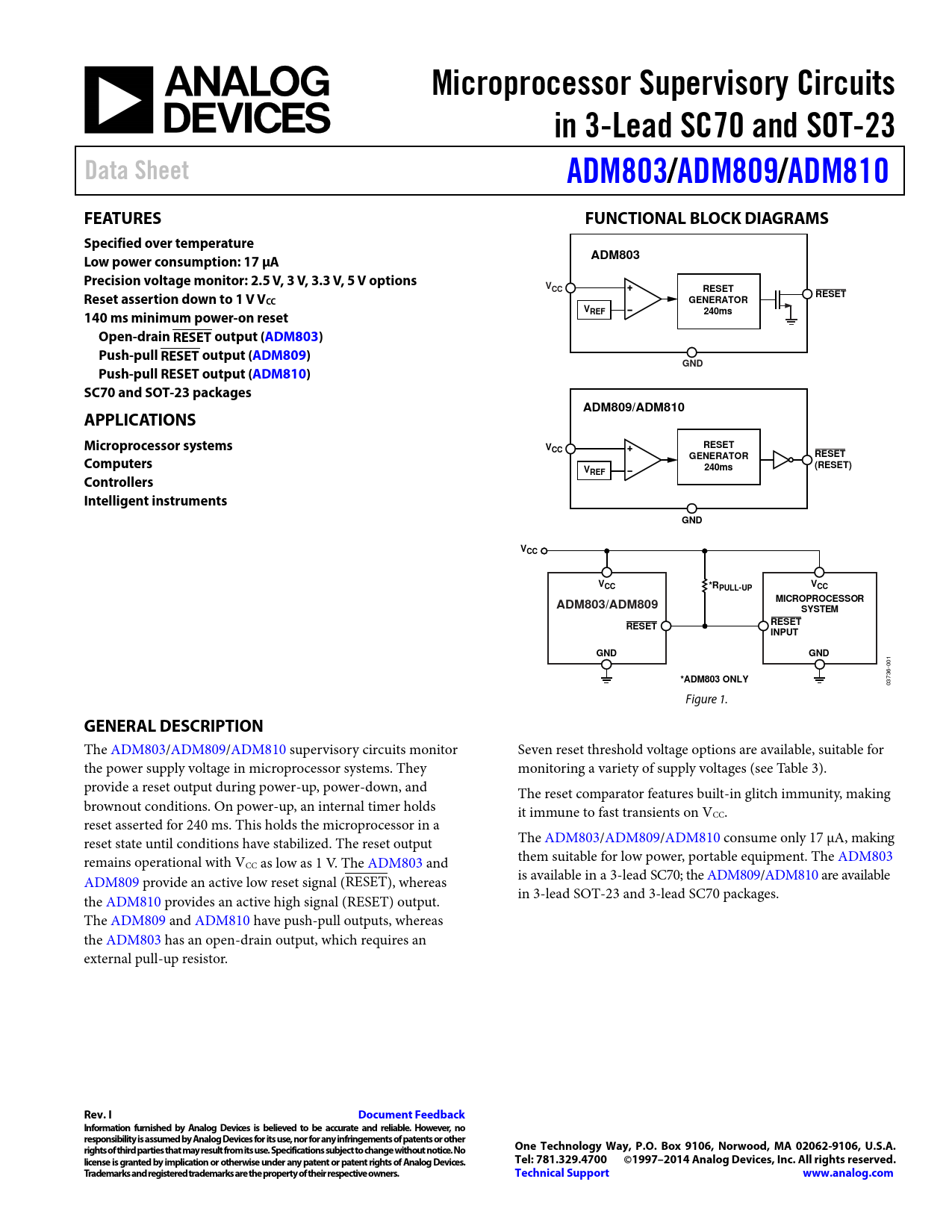

Microprocessor Supervisory Circuits. in 3-Lead SC70 and SOT-23. Data Sheet. ADM803/. ADM809/. ADM810. FEATURES
Línea de modelo para esta hoja de datos
- ADM803LAKSZ-REEL ADM803LAKSZ-REEL7 ADM803MAKSZ-REEL7 ADM803RAKSZ-REEL7 ADM803SAKSZ-REEL ADM803SAKSZ-REEL7 ADM803TAKSZ-REEL7 ADM803ZAKSZ-REEL7
- ADM809-5LARTZ-RL7 ADM809-5SAKSZ-RL7 ADM809-5SARTZ-RL7 ADM809JAKSZ-REEL7 ADM809JARTZ-REEL7 ADM809LAKSZ-REEL7 ADM809LARTZ-REEL ADM809LARTZ-REEL7 ADM809MARTZ-REEL ADM809MARTZ-REEL7 ADM809RAKSZ-REEL ADM809RAKSZ-REEL7 ADM809RARTZ-REEL7 ADM809SAKSZ-REEL7 ADM809SARTZ-REEL7 ADM809TAKSZ-REEL7 ADM809TARTZ-REEL ADM809TARTZ-REEL7 ADM809ZARTZ-REEL7
Versión de texto del documento
link to page 4
Microprocessor Supervisory Circuits in 3-Lead SC70 and SOT-23 Data Sheet ADM803/ ADM809/ ADM810 FEATURES FUNCTIONAL BLOCK DIAGRAMS Specified over temperature Low power consumption: 17 μA ADM803 Precision voltage monitor: 2.5 V, 3 V, 3.3 V, 5 V options VCC RESET Reset assertion down to 1 V V RESET CC GENERATOR V 140 ms minimum power-on reset REF 240ms Open-drain RESET output (ADM803) Push-pull RESET output (ADM809) GND Push-pull RESET output (ADM810) SC70 and SOT-23 packages ADM809/ADM810 APPLICATIONS Microprocessor systems RESET VCC RESET Computers GENERATOR (RESET) 240ms VREF Controllers Intelligent instruments GND VCC VCC *R V PULL-UP CC MICROPROCESSOR ADM803/ADM809 SYSTEM RESET RESET INPUT GND GND
001
*ADM803 ONLY
03736- Figure 1.
GENERAL DESCRIPTION
The ADM803/ADM809/ADM810 supervisory circuits monitor Seven reset threshold voltage options are available, suitable for the power supply voltage in microprocessor systems. They monitoring a variety of supply voltages (see Table 3). provide a reset output during power-up, power-down, and The reset comparator features built-in glitch immunity, making brownout conditions. On power-up, an internal timer holds it immune to fast transients on VCC. reset asserted for 240 ms. This holds the microprocessor in a reset state until conditions have stabilized. The reset output The ADM803/ADM809/ADM810 consume only 17 μA, making remains operational with V them suitable for low power, portable equipment. The ADM803 CC as low as 1 V. The ADM803 and ADM809 provide an active low reset signal (RESET), whereas is available in a 3-lead SC70; the ADM809/ADM810 are available the ADM810 provides an active high signal (RESET) output. in 3-lead SOT-23 and 3-lead SC70 packages. The ADM809 and ADM810 have push-pull outputs, whereas the ADM803 has an open-drain output, which requires an external pul -up resistor.
