Datasheet STB75NF75, STP75NF75, STP75NF75FP (STMicroelectronics) - 8
| Fabricante | STMicroelectronics |
| Descripción | N-channel 75V -0.0095Ω -80A -TO-220 -TO-220FP -D2PAK STripFET II Power MOSFET |
| Páginas / Página | 16 / 8 — Electrical characteristics. STB75NF75 - STP75NF75 - STP75NF75FP. Figure … |
| Formato / tamaño de archivo | PDF / 428 Kb |
| Idioma del documento | Inglés |
Electrical characteristics. STB75NF75 - STP75NF75 - STP75NF75FP. Figure 13. Source-drain diode forward
Línea de modelo para esta hoja de datos
Versión de texto del documento

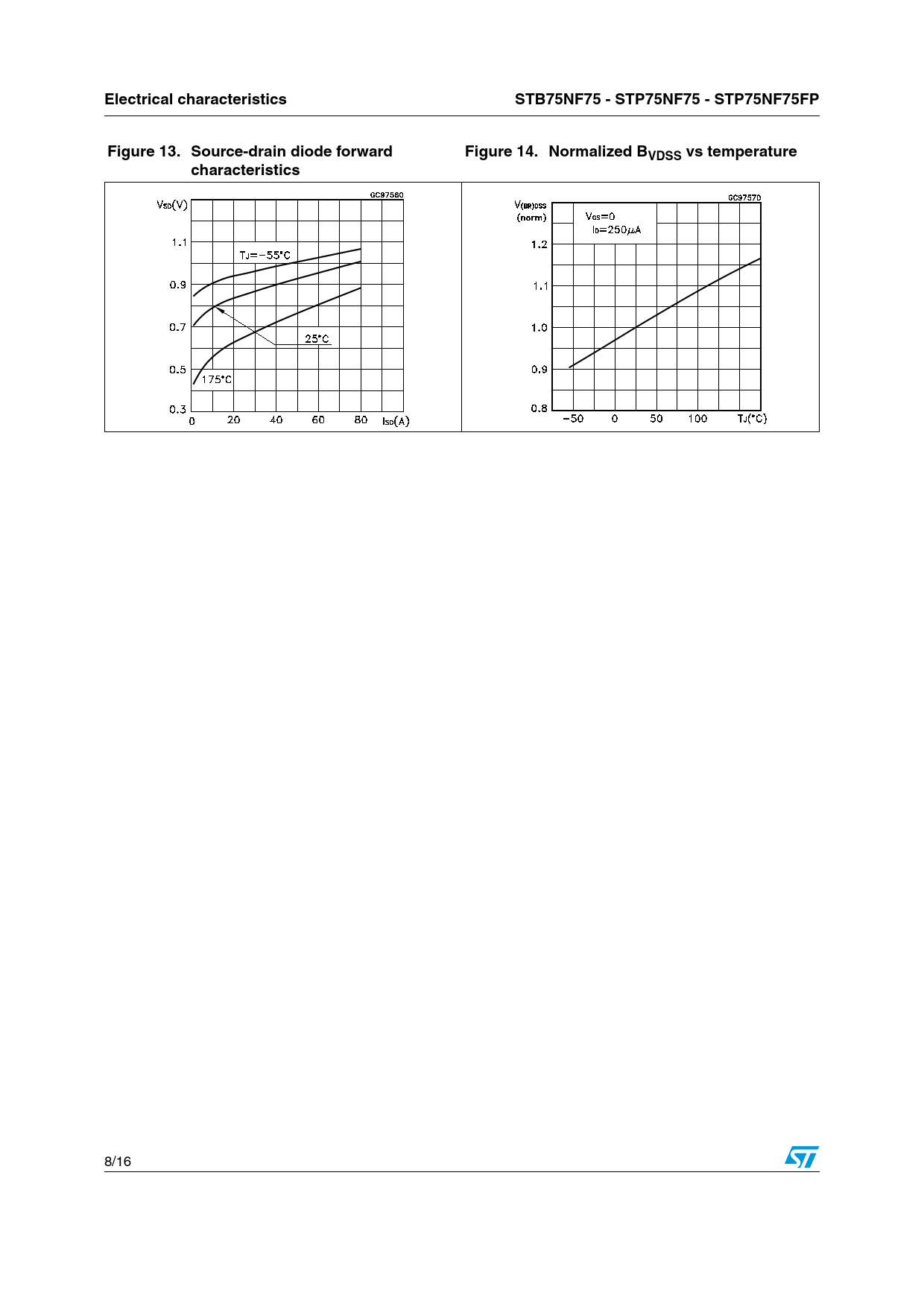

Electrical characteristics STB75NF75 - STP75NF75 - STP75NF75FP Figure 13. Source-drain diode forward Figure 14. Normalized BVDSS vs temperature characteristics
