Datasheet MT3608 (Aerosemi Technology) - 2
| Fabricante | Aerosemi Technology |
| Descripción | High Efficiency 1.2MHz 2A Step Up Converter |
| Páginas / Página | 7 / 2 — ABSOLUTE MAXIMUM RATINGS. PACKAGE/ORDER INFORMATION. PIN DESCRIPTION. … |
| Formato / tamaño de archivo | PDF / 622 Kb |
| Idioma del documento | Inglés |
ABSOLUTE MAXIMUM RATINGS. PACKAGE/ORDER INFORMATION. PIN DESCRIPTION. PIN. NAME. FUNCTION. Aerosemi Technology Co., Ltd
Línea de modelo para esta hoja de datos
Versión de texto del documento

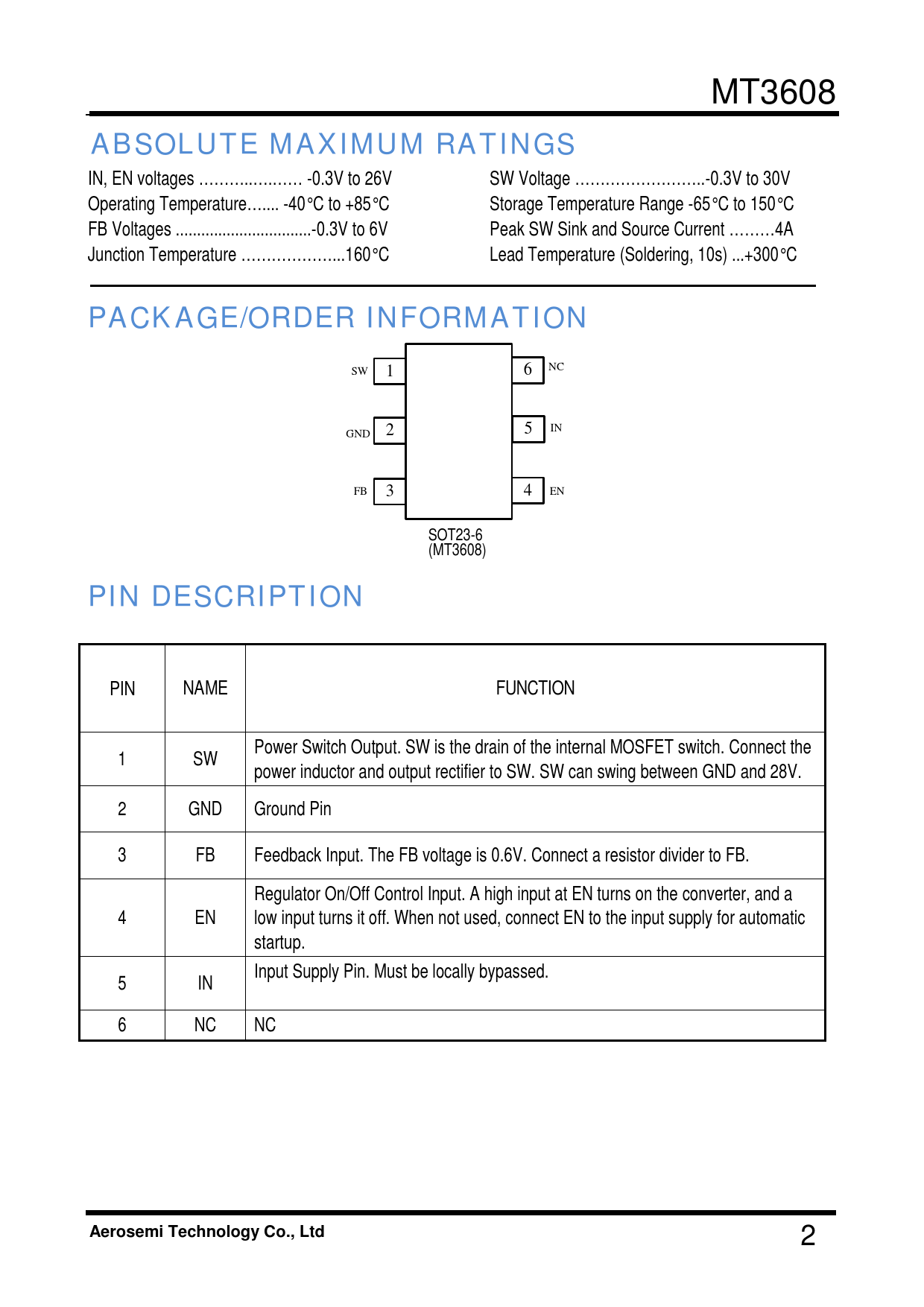

MT3 608
ABSOLUTE MAXIMUM RATINGS
IN, EN voltages ………..….…… -0.3V to 26V SW Voltage ……………………..-0.3V to 30V Operating Temperature….. -40°C to +85°C Storage Temperature Range -65°C to 150°C FB Voltages ..-0.3V to 6V Peak SW Sink and Source Current ………4A Junction Temperature ……………….. 160°C Lead Temperature (Soldering, 10s) .. +300°C
PACKAGE/ORDER INFORMATION
SW 1 6 NC 2 IN GND 5 FB 3 4 EN SOT23-5 SOT23-6 (MT3540) (MT3608)
PIN DESCRIPTION PIN NAME FUNCTION
1 SW Power Switch Output. SW is the drain of the internal MOSFET switch. Connect the power inductor and output rectifier to SW. SW can swing between GND and 28V. 2 GND Ground Pin 3 FB Feedback Input. The FB voltage is 0.6V. Connect a resistor divider to FB. Regulator On/Of Control Input. A high input at EN turns on the converter, and a 4 EN low input turns it off. When not used, connect EN to the input supply for automatic startup. 5 IN Input Supply Pin. Must be locally bypassed. 6 NC NC
Aerosemi Technology Co., Ltd
2 Document Outline MT3608-P1 MT3608_P2 FUNCTION NAME
