Datasheet MAX1818 (Maxim)
| Fabricante | Maxim |
| Descripción | 500mA, Low-Dropout Linear Regulator in SOT23 |
| Páginas / Página | 9 / 1 — here. MAX1818. 500mA Low-Dropout. Linear Regulator in SOT23. General … |
| Formato / tamaño de archivo | PDF / 1.5 Mb |
| Idioma del documento | Inglés |
here. MAX1818. 500mA Low-Dropout. Linear Regulator in SOT23. General Description. Features. Ordering Information. Applications. PART*
Línea de modelo para esta hoja de datos
Versión de texto del documento
link to page 8 link to page 8 link to page 2 Click
here
for production status of specific part numbers.

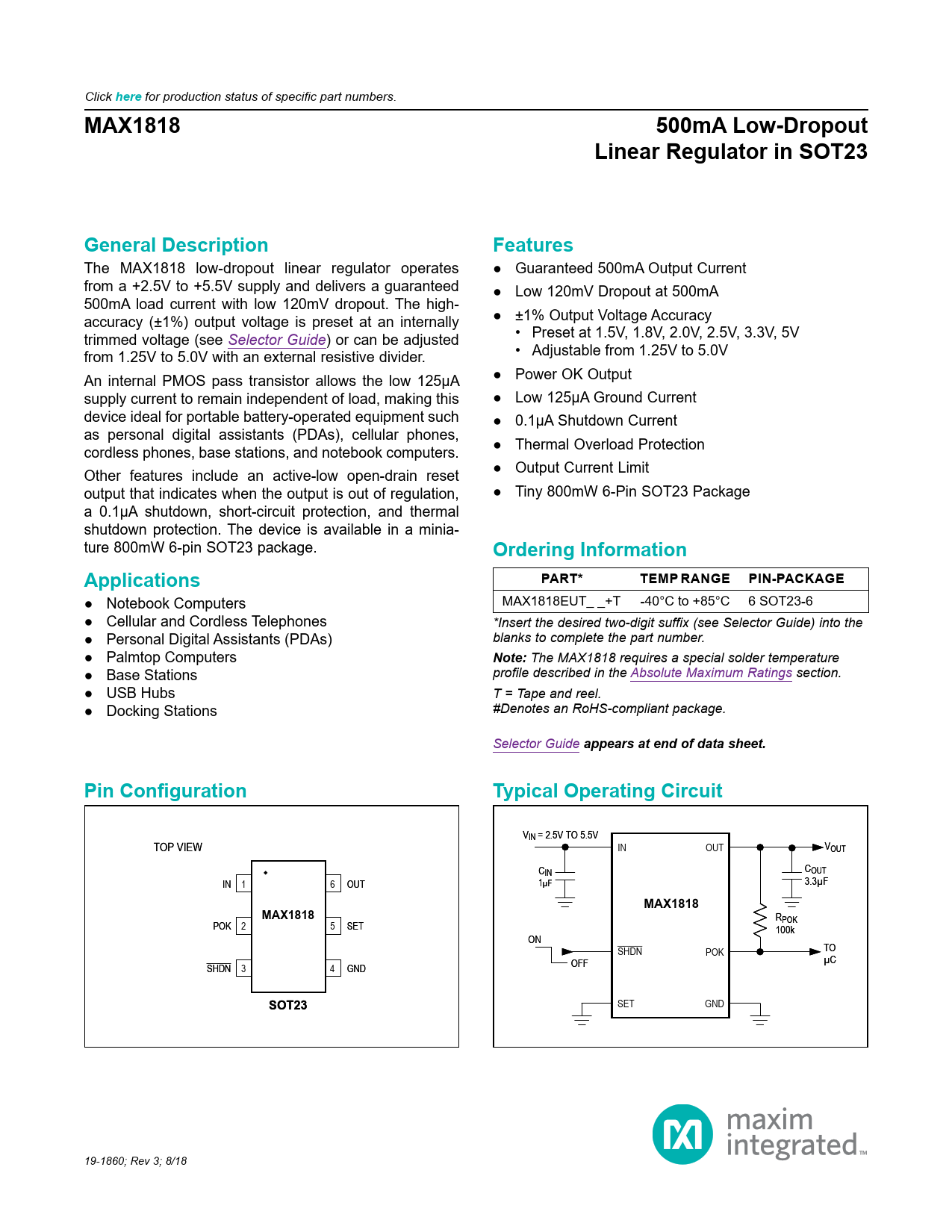

MAX1818 500mA Low-Dropout Linear Regulator in SOT23 General Description Features
The MAX1818 low-dropout linear regulator operates ● Guaranteed 500mA Output Current from a +2.5V to +5.5V supply and delivers a guaranteed ● Low 120mV Dropout at 500mA 500mA load current with low 120mV dropout. The high- accuracy (±1%) output voltage is preset at an internally ● ±1% Output Voltage Accuracy trimmed voltage (see Selector Guide) or can be adjusted • Preset at 1.5V, 1.8V, 2.0V, 2.5V, 3.3V, 5V from 1.25V to 5.0V with an external resistive divider. • Adjustable from 1.25V to 5.0V An internal PMOS pass transistor allows the low 125μA ● Power OK Output supply current to remain independent of load, making this ● Low 125μA Ground Current device ideal for portable battery-operated equipment such ● 0.1μA Shutdown Current as personal digital assistants (PDAs), cellular phones, cordless phones, base stations, and notebook computers. ● Thermal Overload Protection Other features include an active-low open-drain reset ● Output Current Limit output that indicates when the output is out of regulation, ● Tiny 800mW 6-Pin SOT23 Package a 0.1μA shutdown, short-circuit protection, and thermal shutdown protection. The device is available in a minia- ture 800mW 6-pin SOT23 package.
Ordering Information Applications PART* TEMP RANGE PIN-PACKAGE
● Notebook Computers MAX1818EUT_ _+T -40°C to +85°C 6 SOT23-6 ● Cellular and Cordless Telephones *Insert the desired two-digit suffix (see Selector Guide) into the ● Personal Digital Assistants (PDAs) blanks to complete the part number. ● Palmtop Computers
Note:
The MAX1818 requires a special solder temperature ● Base Stations profile described in the Absolute Maximum Ratings section. ● USB Hubs T = Tape and reel. ● Docking Stations #Denotes an RoHS-compliant package. Selector Guide
appears at end of data sheet. Pin Configuration Typical Operating Circuit
V IN V = IN 2. 2 5V 5 TO 5.5V 5 TOP VIEW NC IN OUT VOUT NC CIN C IN OUT C IN 1 6 OUT 1µF 3.3µF
MAX1818 MAX1818
R POK 2 5 SET POK 100k ON SHDN POK TO POK µC SHDN 3 4 GND OFF
SOT23
SET GND 19-1860; Rev 3; 8/18
