Datasheet ZXLD381 (Diodes) - 8
| Fabricante | Diodes |
| Descripción | Single Or Multi Cell Led Driver Solution |
| Páginas / Página | 9 / 8 — A Product Line of. ZXLD381. Ordering Information. Tape Width. Quantity. … |
| Formato / tamaño de archivo | PDF / 210 Kb |
| Idioma del documento | Inglés |
A Product Line of. ZXLD381. Ordering Information. Tape Width. Quantity. Part Number. Package. Part Mark. (mm). (per reel)
Línea de modelo para esta hoja de datos
Versión de texto del documento
A Product Line of
Diodes Incorporated

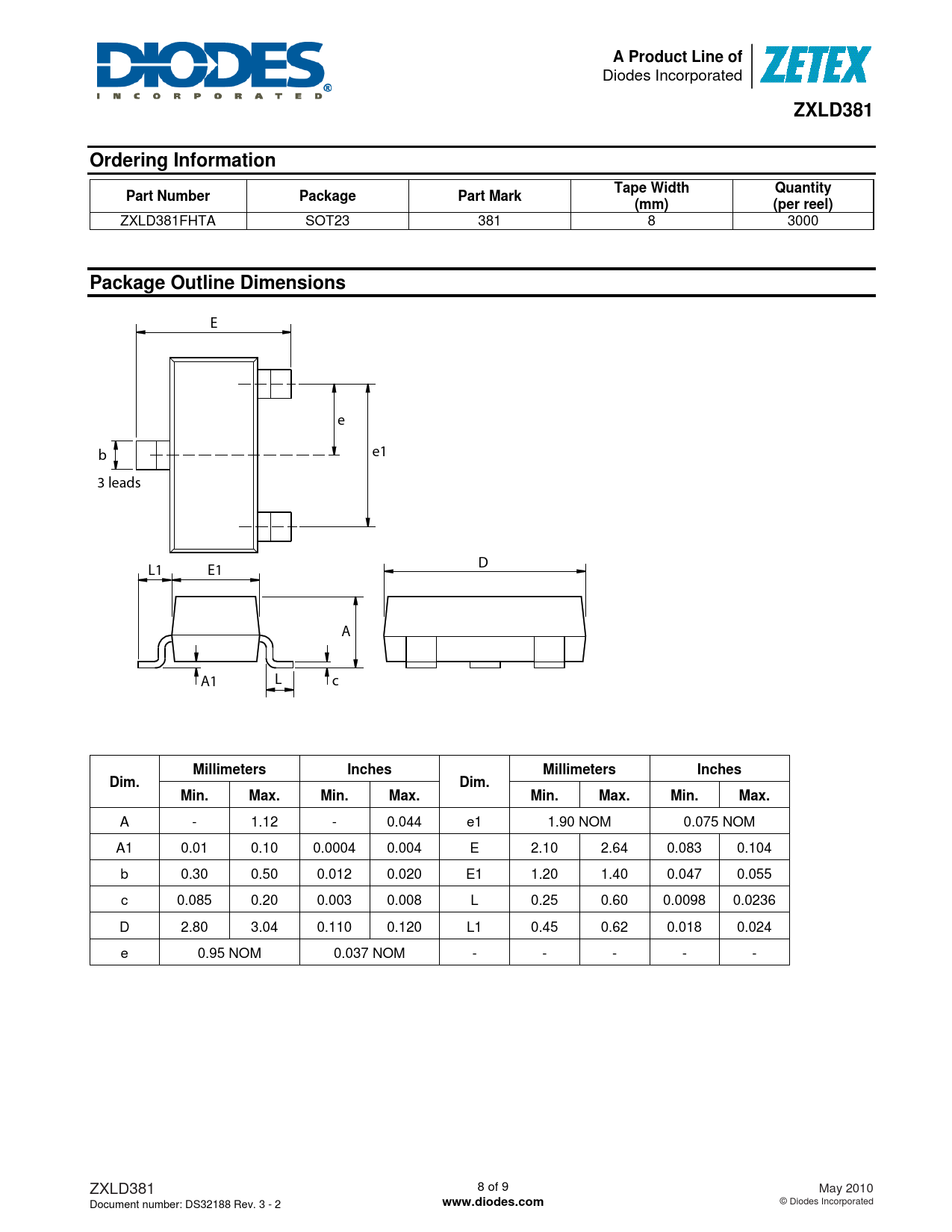

ZXLD381 Ordering Information Tape Width Quantity Part Number Package Part Mark (mm) (per reel)
ZXLD381FHTA SOT23 381 8 3000
Package Outline Dimensions
E e e1 b 3 leads D L1 E1 A A1 L c
Millimeters Inches Millimeters Inches Dim. Dim. Min. Max. Min. Max. Min. Max. Min. Max.
A - 1.12 - 0.044 e1 1.90 NOM 0.075 NOM A1 0.01 0.10 0.0004 0.004 E 2.10 2.64 0.083 0.104 b 0.30 0.50 0.012 0.020 E1 1.20 1.40 0.047 0.055 c 0.085 0.20 0.003 0.008 L 0.25 0.60 0.0098 0.0236 D 2.80 3.04 0.110 0.120 L1 0.45 0.62 0.018 0.024 e 0.95 NOM 0.037 NOM - - - - - ZXLD381 8 of 9 May 2010 Document number: DS32188 Rev. 3 - 2
