Datasheet ADA4097-1, ADA4097-2 (Analog Devices) - 10
| Fabricante | Analog Devices |
| Descripción | 50 V, 130 kHz, 32.5 µA per Channel, Robust, Over-The-Top, Precision Op Amps |
| Páginas / Página | 31 / 10 — ADA4097-1/ADA4097-2. PIN CONFIGURATIONS AND FUNCTION DESCRIPTIONS |
| Formato / tamaño de archivo | PDF / 1.8 Mb |
| Idioma del documento | Inglés |

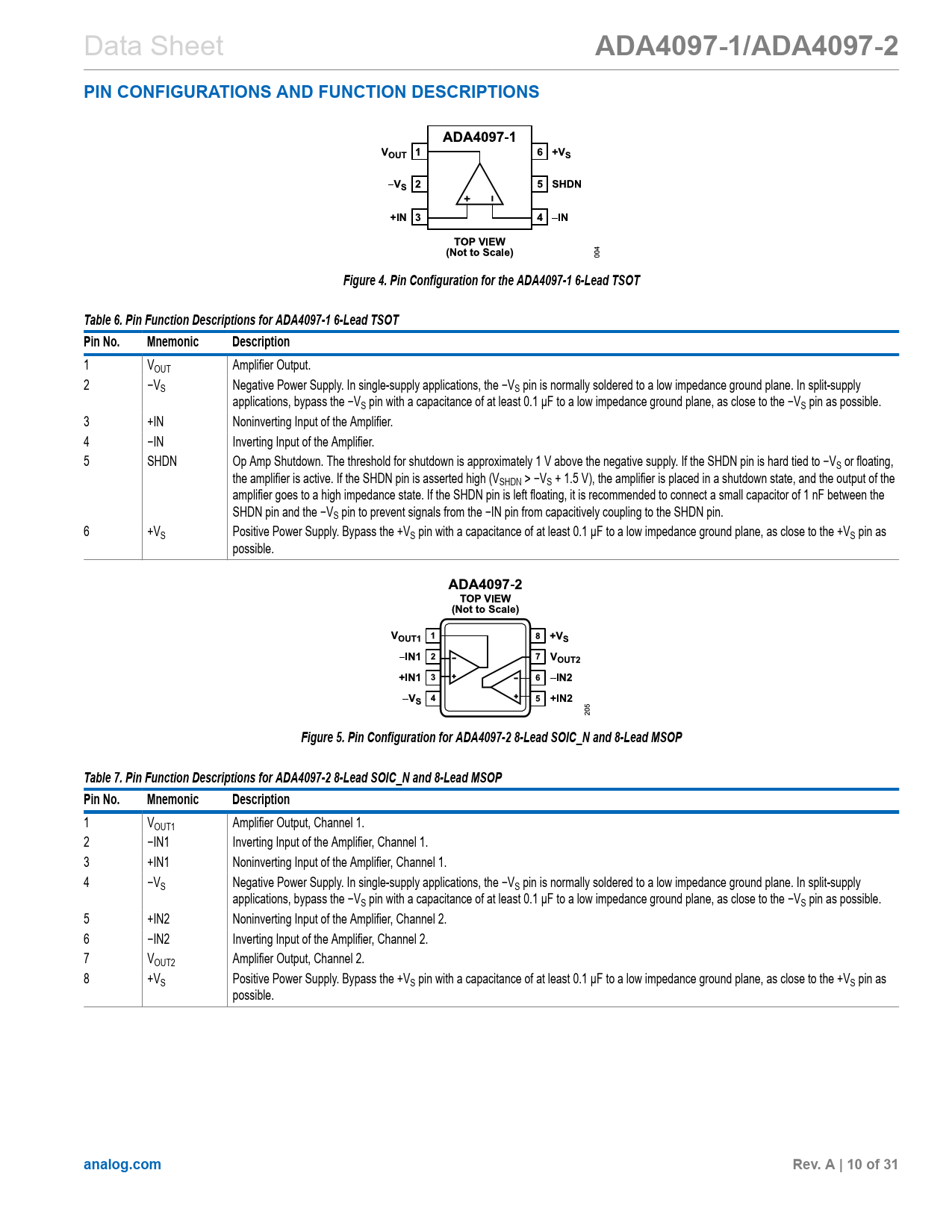

ADA4097-1/ADA4097-2. PIN CONFIGURATIONS AND FUNCTION DESCRIPTIONS
Línea de modelo para esta hoja de datos
Versión de texto del documento
Data Sheet
ADA4097-1/ADA4097-2 PIN CONFIGURATIONS AND FUNCTION DESCRIPTIONS Figure 4. Pin Configuration for the ADA4097-1 6-Lead TSOT Table 6. Pin Function Descriptions for ADA4097-1 6-Lead TSOT Pin No. Mnemonic Description
1 VOUT Amplifier Output. 2 −VS Negative Power Supply. In single-supply applications, the −VS pin is normally soldered to a low impedance ground plane. In split-supply applications, bypass the −VS pin with a capacitance of at least 0.1 μF to a low impedance ground plane, as close to the −VS pin as possible. 3 +IN Noninverting Input of the Amplifier. 4 −IN Inverting Input of the Amplifier. 5 SHDN Op Amp Shutdown. The threshold for shutdown is approximately 1 V above the negative supply. If the SHDN pin is hard tied to −VS or floating, the amplifier is active. If the SHDN pin is asserted high (VSHDN > −VS + 1.5 V), the amplifier is placed in a shutdown state, and the output of the amplifier goes to a high impedance state. If the SHDN pin is left floating, it is recommended to connect a small capacitor of 1 nF between the SHDN pin and the −VS pin to prevent signals from the −IN pin from capacitively coupling to the SHDN pin. 6 +VS Positive Power Supply. Bypass the +VS pin with a capacitance of at least 0.1 μF to a low impedance ground plane, as close to the +VS pin as possible.
Figure 5. Pin Configuration for ADA4097-2 8-Lead SOIC_N and 8-Lead MSOP Table 7. Pin Function Descriptions for ADA4097-2 8-Lead SOIC_N and 8-Lead MSOP Pin No. Mnemonic Description
1 VOUT1 Amplifier Output, Channel 1. 2 −IN1 Inverting Input of the Amplifier, Channel 1. 3 +IN1 Noninverting Input of the Amplifier, Channel 1. 4 −VS Negative Power Supply. In single-supply applications, the −VS pin is normally soldered to a low impedance ground plane. In split-supply applications, bypass the −VS pin with a capacitance of at least 0.1 μF to a low impedance ground plane, as close to the −VS pin as possible. 5 +IN2 Noninverting Input of the Amplifier, Channel 2. 6 −IN2 Inverting Input of the Amplifier, Channel 2. 7 VOUT2 Amplifier Output, Channel 2. 8 +VS Positive Power Supply. Bypass the +VS pin with a capacitance of at least 0.1 μF to a low impedance ground plane, as close to the +VS pin as possible.
analog.com Rev. A | 10 of 31
