Datasheet KBU4A, KBU4B, KBU4D, KBU4G, KBU4J, KBU4K, KBU4M (Vishay) - 3
| Fabricante | Vishay |
| Descripción | Single-Phase Bridge Rectifier |
| Páginas / Página | 4 / 3 — KBU4A, KBU4B, KBU4D, KBU4G, KBU4J, KBU4K, KBU4M. PACKAGE OUTLINE … |
| Formato / tamaño de archivo | PDF / 85 Kb |
| Idioma del documento | Inglés |

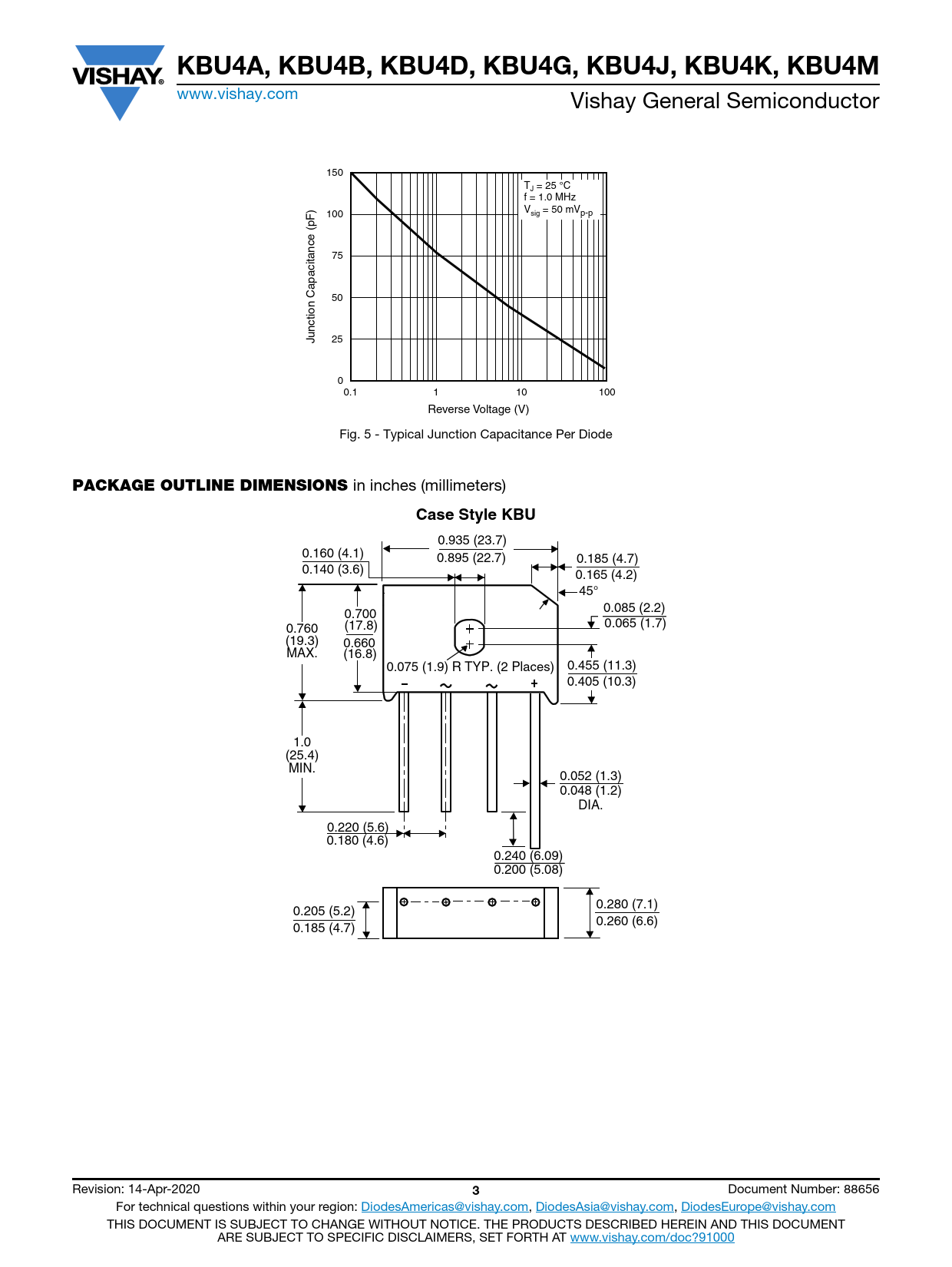

KBU4A, KBU4B, KBU4D, KBU4G, KBU4J, KBU4K, KBU4M. PACKAGE OUTLINE DIMENSIONS. Case Style KBU
Línea de modelo para esta hoja de datos
Versión de texto del documento
KBU4A, KBU4B, KBU4D, KBU4G, KBU4J, KBU4K, KBU4M
www.vishay.com Vishay General Semiconductor 150 T = 25 °C J f = 1.0 MHz 100 V = 50 mV sig p-p 75 50 nction Capacitance (pF) u J 25 0 0.1 1 10 100 Reverse Voltage (V) Fig. 5 - Typical Junction Capacitance Per Diode
PACKAGE OUTLINE DIMENSIONS
in inches (millimeters)
Case Style KBU
0.935 (23.7) 0.160 (4.1) 0.895 (22.7) 0.185 (4.7) 0.140 (3.6) 0.165 (4.2) 45° 0.085 (2.2) 0.700 0.065 (1.7) 0.760 (17.8) (19.3) 0.660 MAX. (16.8) 0.075 (1.9) R TYP. (2 Places) 0.455 (11.3) 0.405 (10.3) 1.0 (25.4) MIN. 0.052 (1.3) 0.048 (1.2) DIA. 0.220 (5.6) 0.180 (4.6) 0.240 (6.09) 0.200 (5.08) 0.280 (7.1) 0.205 (5.2) 0.260 (6.6) 0.185 (4.7) Revision: 14-Apr-2020
