ADR390/ADR391/ADR392/ADR395. ABSOLUTE MAXIMUM RATINGS. THERMAL RESISTANCE. Table 6. Parameter Rating. Table 7. Package Type. θJA
Línea de modelo para esta hoja de datos
Versión de texto del documento

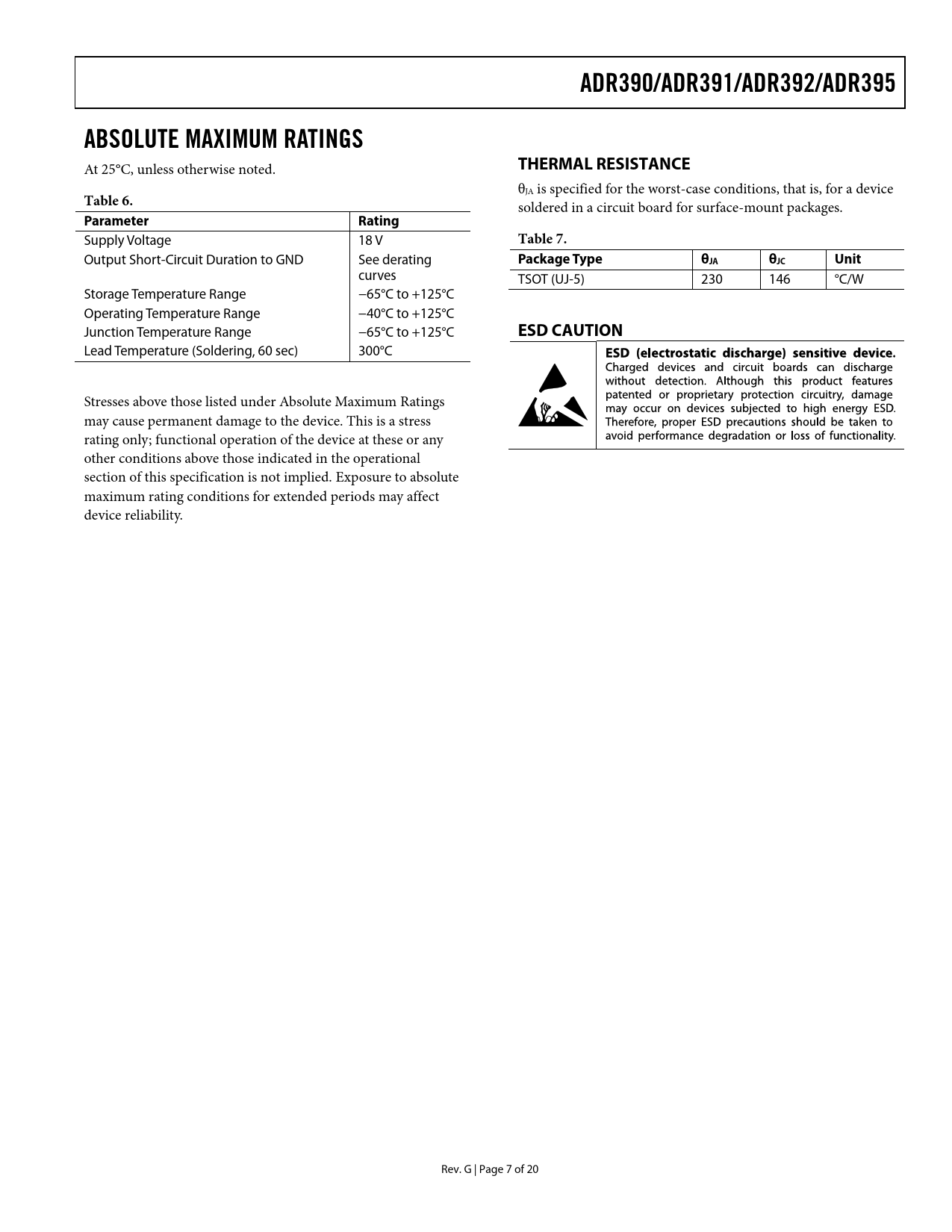

ADR390/ADR391/ADR392/ADR395 ABSOLUTE MAXIMUM RATINGS
At 25°C, unless otherwise noted.
THERMAL RESISTANCE
θJA is specified for the worst-case conditions, that is, for a device
Table 6.
soldered in a circuit board for surface-mount packages.
Parameter Rating
Supply Voltage 18 V
Table 7.
Output Short-Circuit Duration to GND See derating
Package Type θJA θJC Unit
curves TSOT (UJ-5) 230 146 °C/W Storage Temperature Range −65°C to +125°C Operating Temperature Range −40°C to +125°C Junction Temperature Range −65°C to +125°C
ESD CAUTION
Lead Temperature (Soldering, 60 sec) 300°C Stresses above those listed under Absolute Maximum Ratings may cause permanent damage to the device. This is a stress rating only; functional operation of the device at these or any other conditions above those indicated in the operational section of this specification is not implied. Exposure to absolute maximum rating conditions for extended periods may affect device reliability. Rev. G | Page 7 of 20 Document Outline FEATURES APPLICATIONS PIN CONFIGURATION GENERAL DESCRIPTION TABLE OF CONTENTS REVISION HISTORY SPECIFICATIONS ADR390 ELECTRICAL CHARACTERISTICS ADR391 ELECTRICAL CHARACTERISTICS ADR392 ELECTRICAL CHARACTERISTICS ADR395 ELECTRICAL CHARACTERISTICS ABSOLUTE MAXIMUM RATINGS THERMAL RESISTANCE ESD CAUTION TERMINOLOGY TYPICAL PERFORMANCE CHARACTERISTICS THEORY OF OPERATION DEVICE POWER DISSIPATION CONSIDERATIONS SHUTDOWN MODE OPERATION APPLICATIONS INFORMATION BASIC VOLTAGE REFERENCE CONNECTION Stacking Reference ICs for Arbitrary Outputs A Negative Precision Reference without Precision Resistors General-Purpose Current Source High Power Performance with Current Limit CAPACITORS Input Capacitor Output Capacitor OUTLINE DIMENSIONS ORDERING GUIDE
