Datasheet STPS2H100 (STMicroelectronics) - 10
| Fabricante | STMicroelectronics |
| Descripción | 100 V, 2 A power Schottky rectifier |
| Páginas / Página | 19 / 10 — STPS2H100. SMA Flat Notch package information. Figure 21. SMA Flat Notch … |
| Formato / tamaño de archivo | PDF / 413 Kb |
| Idioma del documento | Inglés |
STPS2H100. SMA Flat Notch package information. Figure 21. SMA Flat Notch recommended footprint in mm (inches). DS1452. Rev 10
Línea de modelo para esta hoja de datos
Versión de texto del documento

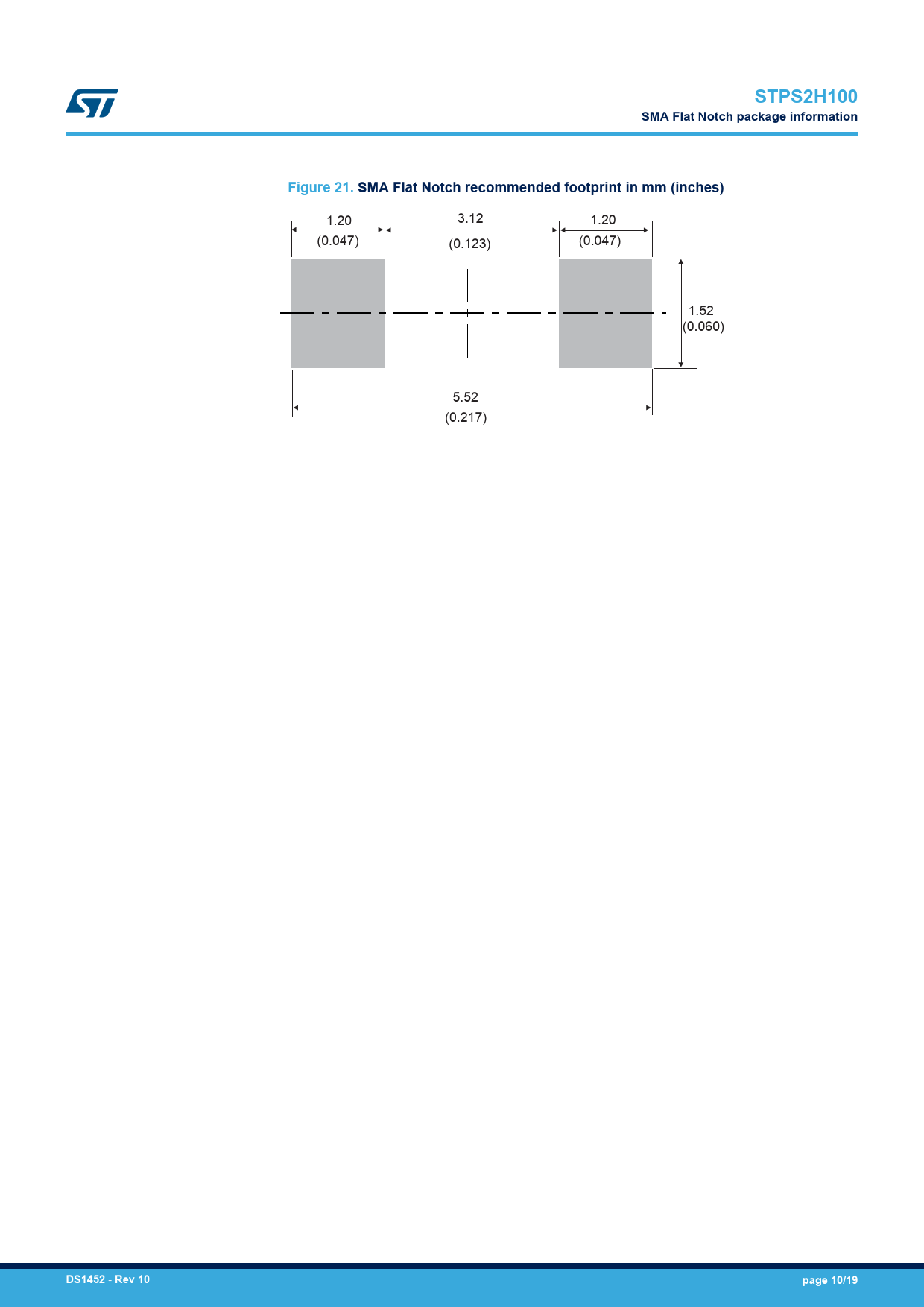

STPS2H100 SMA Flat Notch package information Figure 21. SMA Flat Notch recommended footprint in mm (inches)
1.20 3.12 1.20 .047 0 ( ) (0.123) ( . 0 047) 1.52 (0.060) 5.52 (0.217)
DS1452
-
Rev 10 page 10/19
