Datasheet MPS2369, MPS2369A (ON Semiconductor) - 3
| Fabricante | ON Semiconductor |
| Descripción | Switching Transistors NPN Silicon |
| Páginas / Página | 5 / 3 — MPS2369 MPS2369A. ELECTRICAL CHARACTERISTICS. Characteristic. Symbol. … |
| Revisión | 2 |
| Formato / tamaño de archivo | PDF / 103 Kb |
| Idioma del documento | Inglés |

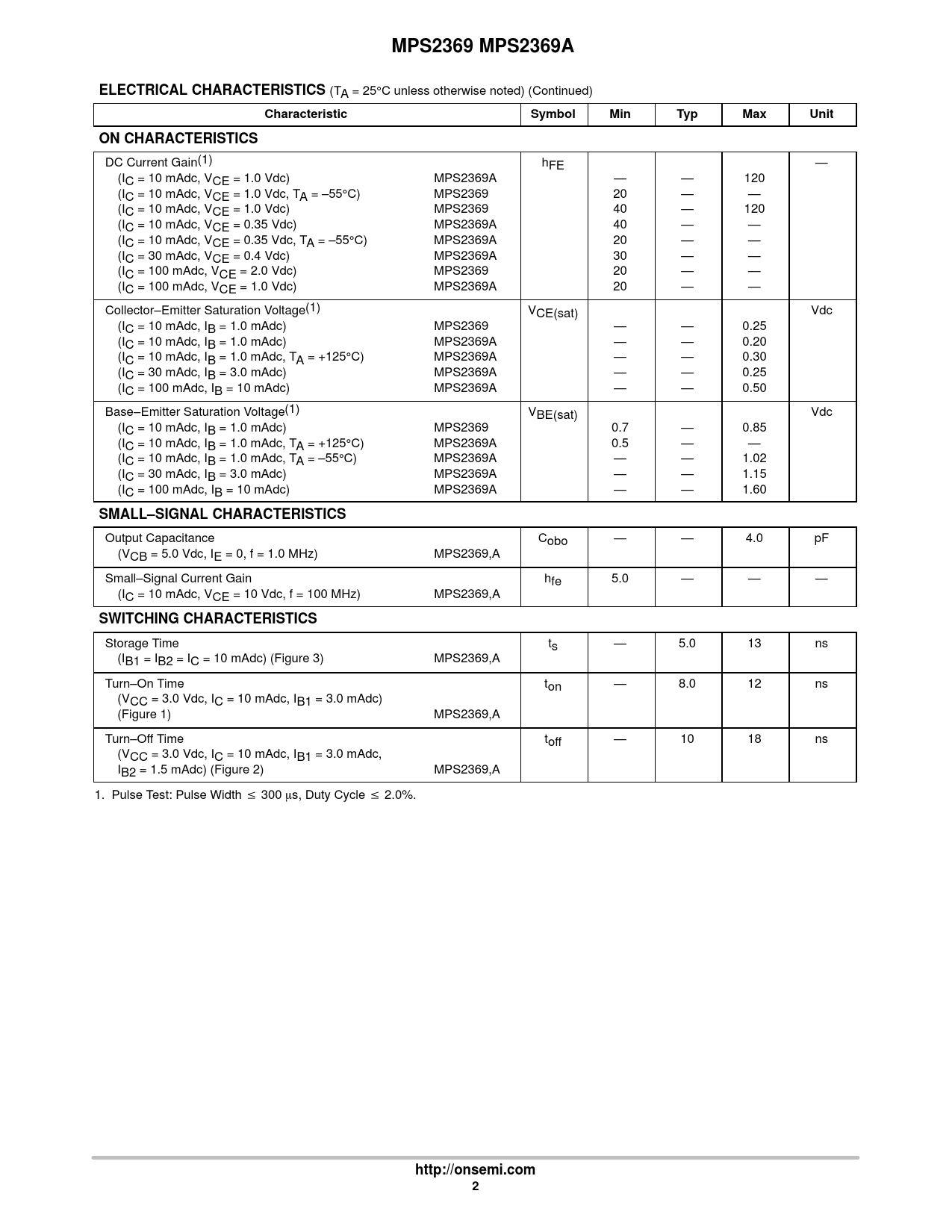

MPS2369 MPS2369A. ELECTRICAL CHARACTERISTICS. Characteristic. Symbol. Min. Typ. Max. Unit. ON CHARACTERISTICS
Línea de modelo para esta hoja de datos
Versión de texto del documento
MPS2369 MPS2369A ELECTRICAL CHARACTERISTICS
(TA = 25°C unless otherwise noted) (Continued)
Characteristic Symbol Min Typ Max Unit ON CHARACTERISTICS
DC Current Gain(1) hFE — (IC = 10 mAdc, VCE = 1.0 Vdc) MPS2369A — — 120 (IC = 10 mAdc, VCE = 1.0 Vdc, TA = –55°C) MPS2369 20 — — (IC = 10 mAdc, VCE = 1.0 Vdc) MPS2369 40 — 120 (IC = 10 mAdc, VCE = 0.35 Vdc) MPS2369A 40 — — (IC = 10 mAdc, VCE = 0.35 Vdc, TA = –55°C) MPS2369A 20 — — (IC = 30 mAdc, VCE = 0.4 Vdc) MPS2369A 30 — — (IC = 100 mAdc, VCE = 2.0 Vdc) MPS2369 20 — — (IC = 100 mAdc, VCE = 1.0 Vdc) MPS2369A 20 — — Collector–Emitter Saturation Voltage(1) VCE(sat) Vdc (IC = 10 mAdc, IB = 1.0 mAdc) MPS2369 — — 0.25 (IC = 10 mAdc, IB = 1.0 mAdc) MPS2369A — — 0.20 (IC = 10 mAdc, IB = 1.0 mAdc, TA = +125°C) MPS2369A — — 0.30 (IC = 30 mAdc, IB = 3.0 mAdc) MPS2369A — — 0.25 (IC = 100 mAdc, IB = 10 mAdc) MPS2369A — — 0.50 Base–Emitter Saturation Voltage(1) VBE(sat) Vdc (IC = 10 mAdc, IB = 1.0 mAdc) MPS2369 0.7 — 0.85 (IC = 10 mAdc, IB = 1.0 mAdc, TA = +125°C) MPS2369A 0.5 — — (IC = 10 mAdc, IB = 1.0 mAdc, TA = –55°C) MPS2369A — — 1.02 (IC = 30 mAdc, IB = 3.0 mAdc) MPS2369A — — 1.15 (IC = 100 mAdc, IB = 10 mAdc) MPS2369A — — 1.60
SMALL–SIGNAL CHARACTERISTICS
Output Capacitance Cobo — — 4.0 pF (VCB = 5.0 Vdc, IE = 0, f = 1.0 MHz) MPS2369,A Small–Signal Current Gain hfe 5.0 — — — (IC = 10 mAdc, VCE = 10 Vdc, f = 100 MHz) MPS2369,A
SWITCHING CHARACTERISTICS
Storage Time ts — 5.0 13 ns (IB1 = IB2 = IC = 10 mAdc) (Figure 3) MPS2369,A Turn–On Time ton — 8.0 12 ns (VCC = 3.0 Vdc, IC = 10 mAdc, IB1 = 3.0 mAdc) (Figure 1) MPS2369,A Turn–Off Time toff — 10 18 ns (VCC = 3.0 Vdc, IC = 10 mAdc, IB1 = 3.0 mAdc, IB2 = 1.5 mAdc) (Figure 2) MPS2369,A 1. Pulse Test: Pulse Width 300 s, Duty Cycle 2.0%.
http://onsemi.com 2
