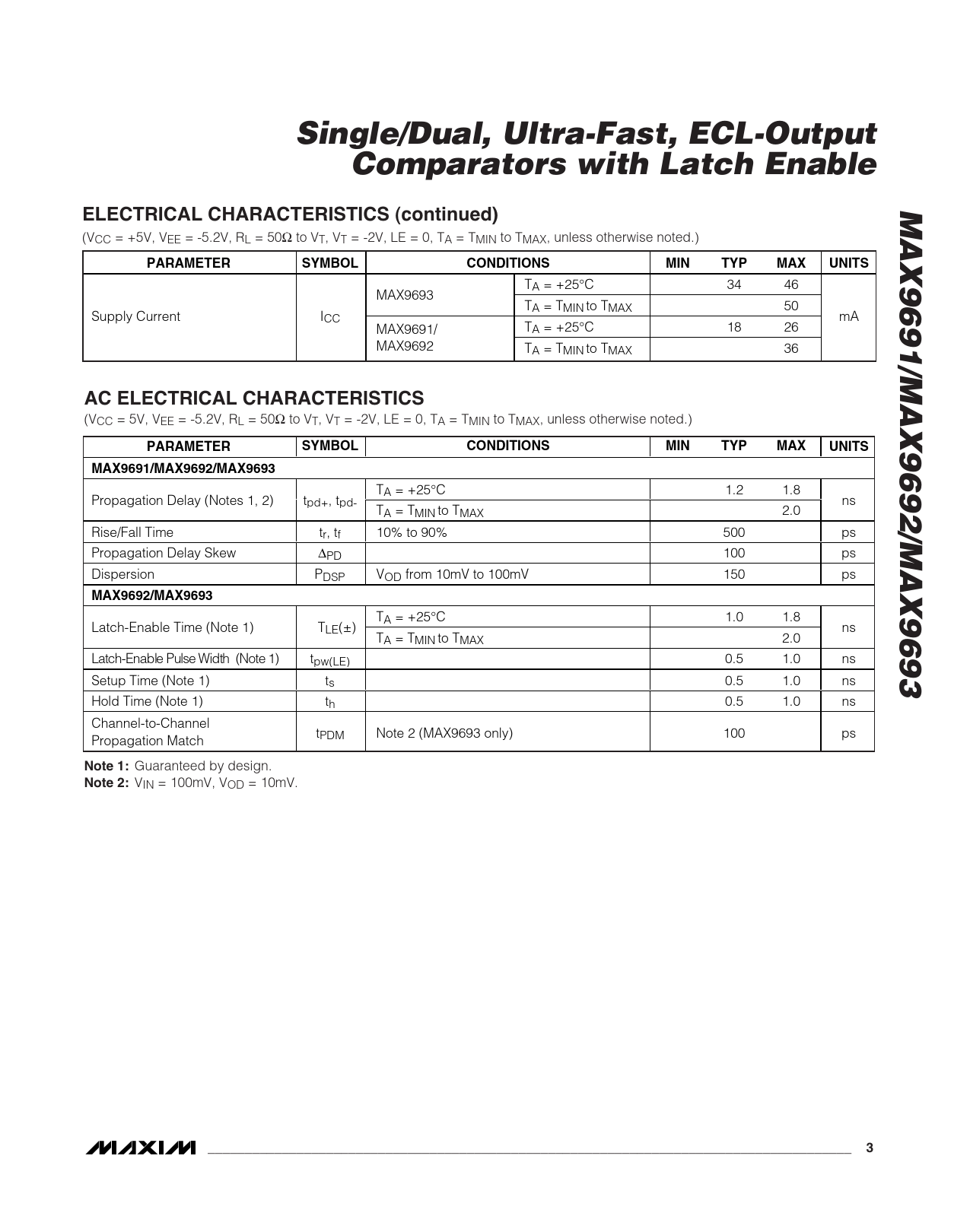

Datasheet MAX9691, MAX9692, MAX9693 (Maxim) - 3

Single/Dual, Ultra-Fast, ECL-Output Comparators with Latch Enable MAX9691/MAX9692/MAX9693 ELECTRICAL CHARACTERISTICS (continued)
(VCC = +5V, VEE = -5.2V, RL = 50Ω to VT, VT = -2V, LE = 0, TA = TMIN to TMAX, unless otherwise noted.)
PARAMETER SYMBOL CONDITIONS MIN TYP MAX UNITS
TA = +25°C 34 46 MAX9693 TA = TMIN to T MAX 50 Supply Current ICC mA MAX9691/ TA = +25°C 18 26 MAX9692 TA = TMIN to T MAX 36
AC ELECTRICAL CHARACTERISTICS
(VCC = 5V, VEE = -5.2V, RL = 50Ω to VT, VT = -2V, LE = 0, TA = TMIN to TMAX, unless otherwise noted.)
PARAMETER SYMBOL CONDITIONS MIN TYP MAX UNITS MAX9691/MAX9692/MAX9693
TA = +25°C 1.2 1.8 Propagation Delay (Notes 1, 2) tpd+, tpd- ns TA = TMIN to T MAX 2.0 Rise/Fall Time tr, tf 10% to 90% 500 ps Propagation Delay Skew ∆PD 100 ps Dispersion PDSP VOD from 10mV to 100mV 150 ps
MAX9692/MAX9693
TA = +25°C 1.0 1.8 Latch-Enable Time (Note 1) TLE(±) ns TA = TMIN to T MAX 2.0 Latch- Enab le P ul se Wi d th (N ote 1) tpw(LE) 0.5 1.0 ns Setup Time (Note 1) ts 0.5 1.0 ns Hold Time (Note 1) th 0.5 1.0 ns Channel-to-Channel t Propagation Match PDM Note 2 (MAX9693 only) 100 ps
Note 1:
Guaranteed by design.
Note 2:
VIN = 100mV, VOD = 10mV.
