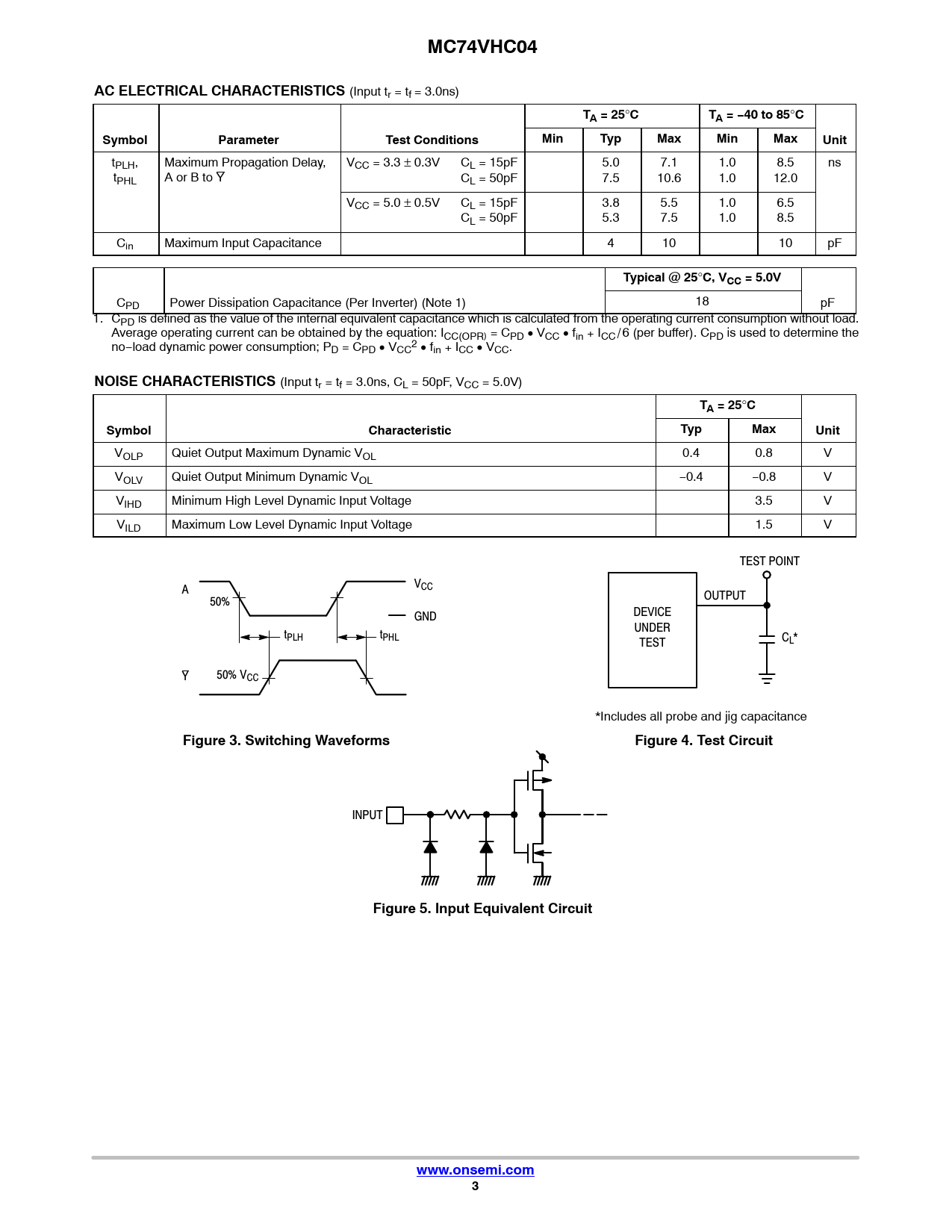

MC74VHC04 AC ELECTRICAL CHARACTERISTICS
(Input tr = tf = 3.0ns)
TA = 25
°
C TA = −40 to 85
°
C Symbol Parameter Test Conditions Min Typ Max Min Max Unit
tPLH, Maximum Propagation Delay, VCC = 3.3 ± 0.3V CL = 15pF 5.0 7.1 1.0 8.5 ns tPHL A or B to Y CL = 50pF 7.5 10.6 1.0 12.0 VCC = 5.0 ± 0.5V CL = 15pF 3.8 5.5 1.0 6.5 CL = 50pF 5.3 7.5 1.0 8.5 Cin Maximum Input Capacitance 4 10 10 pF
Typical @ 25
°
C, VCC = 5.0V
CPD Power Dissipation Capacitance (Per Inverter) (Note 1) 18 pF 1. CPD is defined as the value of the internal equivalent capacitance which is calculated from the operating current consumption without load. Average operating current can be obtained by the equation: ICC(OPR) = CPD VCC fin + ICC/6 (per buffer). CPD is used to determine the no−load dynamic power consumption; P 2 D = CPD VCC fin + ICC VCC.
NOISE CHARACTERISTICS
(Input tr = tf = 3.0ns, CL = 50pF, VCC = 5.0V)
TA = 25
°
C Symbol Characteristic Typ Max Unit
VOLP Quiet Output Maximum Dynamic VOL 0.4 0.8 V VOLV Quiet Output Minimum Dynamic VOL −0.4 −0.8 V VIHD Minimum High Level Dynamic Input Voltage 3.5 V VILD Maximum Low Level Dynamic Input Voltage 1.5 V TEST POINT VCC A OUTPUT 50% GND DEVICE UNDER t t PLH PHL CL* TEST Y 50% VCC *Includes all probe and jig capacitance
Figure 3. Switching Waveforms Figure 4. Test Circuit
INPUT
Figure 5. Input Equivalent Circuit www.onsemi.com 3
