Nexperia. BCP53; BCX53; BC53PA. 80 V, 1 A PNP medium power transistors. Fig 1. Power derating curves SOT223. Fig 2
Línea de modelo para esta hoja de datos
Versión de texto del documento

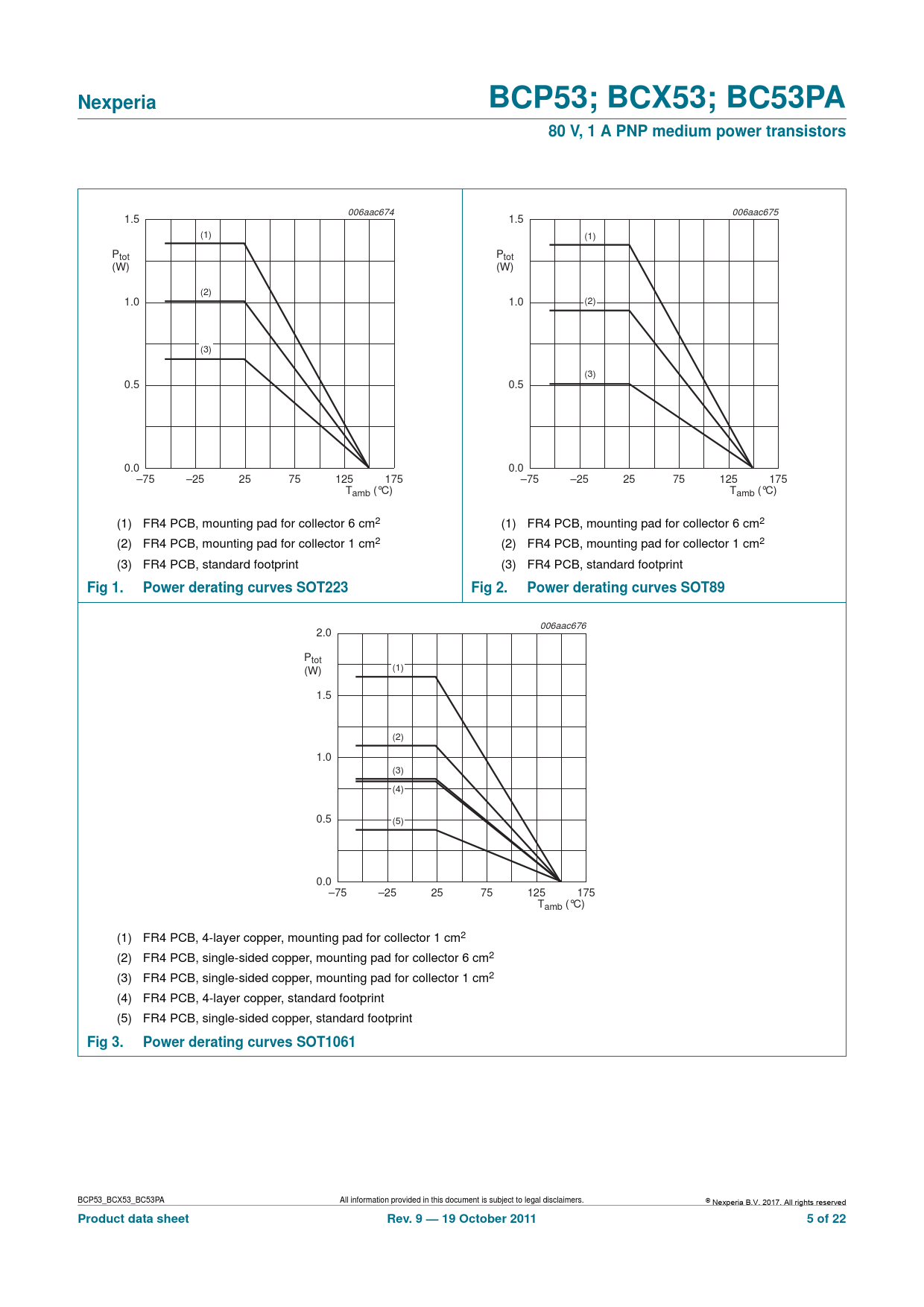

Nexperia BCP53; BCX53; BC53PA 80 V, 1 A PNP medium power transistors
006aac674 006aac675 1.5 1.5 (1) (1) Ptot Ptot (W) (W) (2) 1.0 1.0 (2) (3) (3) 0.5 0.5 0.0 0.0 –75 –25 25 75 125 175 –75 –25 25 75 125 175 Tamb (°C) Tamb (°C) (1) FR4 PCB, mounting pad for collector 6 cm2 (1) FR4 PCB, mounting pad for collector 6 cm2 (2) FR4 PCB, mounting pad for collector 1 cm2 (2) FR4 PCB, mounting pad for collector 1 cm2 (3) FR4 PCB, standard footprint (3) FR4 PCB, standard footprint
Fig 1. Power derating curves SOT223 Fig 2. Power derating curves SOT89
006aac676 2.0 Ptot (W) (1) 1.5 (2) 1.0 (3) (4) 0.5 (5) 0.0 –75 –25 25 75 125 175 Tamb (°C) (1) FR4 PCB, 4-layer copper, mounting pad for collector 1 cm2 (2) FR4 PCB, single-sided copper, mounting pad for collector 6 cm2 (3) FR4 PCB, single-sided copper, mounting pad for collector 1 cm2 (4) FR4 PCB, 4-layer copper, standard footprint (5) FR4 PCB, single-sided copper, standard footprint
Fig 3. Power derating curves SOT1061
BCP53_BCX53_BC53PA All information provided in this document is subject to legal disclaimers. © Nexperia B.V. 2017. All rights reserved
Product data sheet Rev. 9 — 19 October 2011 5 of 22
