Databrief TDA7901 (STMicroelectronics) - 7
| Fabricante | STMicroelectronics |
| Descripción | High efficiency digital input automotive quad power amplifier with built-in diagnostics features, Class-G integrated, "start stop" compatible |
| Páginas / Página | 13 / 7 — TDA7901. Package information. 4.1. PowerSO-36 (slug up) package … |
| Formato / tamaño de archivo | PDF / 217 Kb |
| Idioma del documento | Inglés |
TDA7901. Package information. 4.1. PowerSO-36 (slug up) package information. Figure 3. PowerSO-36 (slug up) package outline
Línea de modelo para esta hoja de datos
Versión de texto del documento
TDA7901 Package information 4 Package information
In order to meet environmental requirements, ST offers these devices in different grades of ECOPACK packages, depending on their level of environmental compliance. ECOPACK specifications, grade definitions and product status are available at: www.st.com. ECOPACK is an ST trademark.

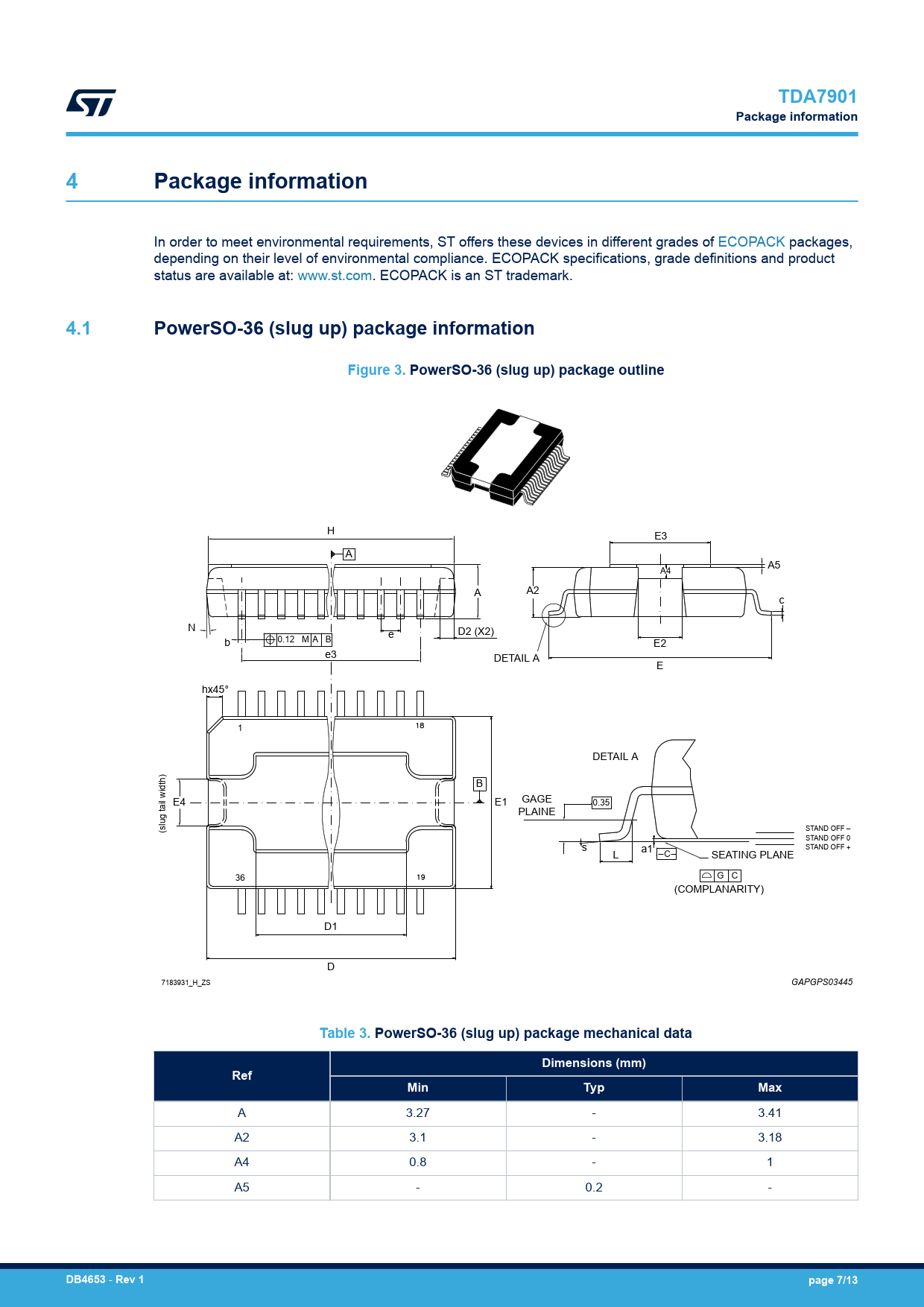

4.1 PowerSO-36 (slug up) package information Figure 3. PowerSO-36 (slug up) package outline
H E3 A A5 A4 A A2 c N D2 (X2) b 0.12 M A B e E2 e3 DETAIL A E hx45° 1 DETAIL A B width) E4 E1 GAGE 0.35 PLAINE (slug tail STAND OFF – STAND OFF 0 s STAND OFF + L a1 C SEATING PLANE 36 G C (COMPLANARITY) D1 D 7183931_H_ZS GAPGPS03445
Table 3. PowerSO-36 (slug up) package mechanical data Dimensions (mm) Ref Min Typ Max
A 3.27 - 3.41 A2 3.1 - 3.18 A4 0.8 - 1 A5 - 0.2 -
DB4653
-
Rev 1 page 7/13
