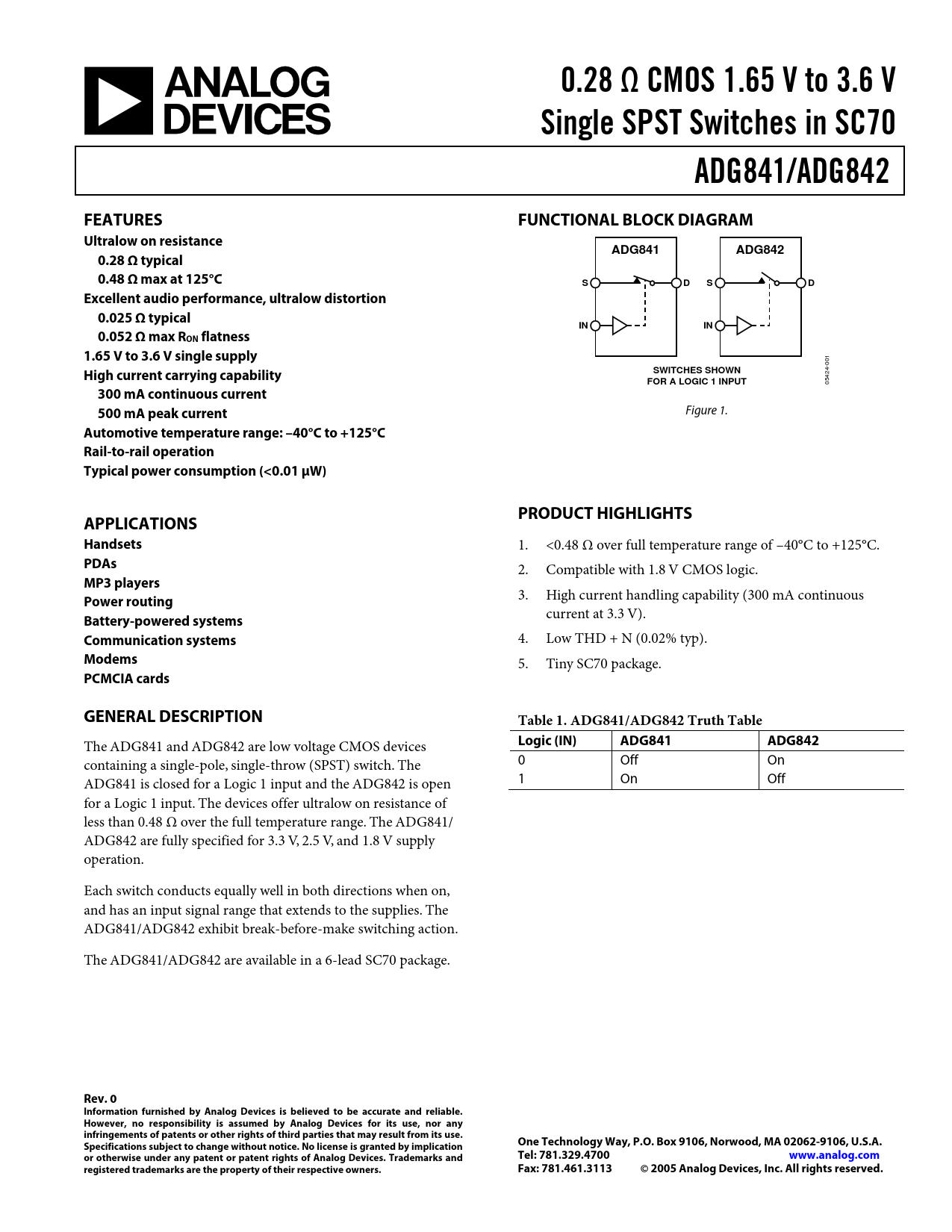

0.28 Ω CMOS 1.65 V to 3.6 V. Single SPST Switches in SC70. ADG841/ADG842. FEATURES. FUNCTIONAL BLOCK DIAGRAM
Línea de modelo para esta hoja de datos
Versión de texto del documento
0.28 Ω CMOS 1.65 V to 3.6 V Single SPST Switches in SC70 ADG841/ADG842 FEATURES FUNCTIONAL BLOCK DIAGRAM Ultralow on resistance ADG841 ADG842 0.28 Ω typical 0.48 Ω max at 125°C S D S D Excellent audio performance, ultralow distortion 0.025 Ω typical IN IN 0.052 Ω max RON flatness 1.65 V to 3.6 V single supply High current carrying capability SWITCHES SHOWN FOR A LOGIC 1 INPUT
05424-001
300 mA continuous current 500 mA peak current
Figure 1.
Automotive temperature range: –40°C to +125°C Rail-to-rail operation Typical power consumption (<0.01 µW) PRODUCT HIGHLIGHTS APPLICATIONS Handsets
1. <0.48 Ω over full temperature range of –40°C to +125°C.
PDAs
2. Compatible with 1.8 V CMOS logic.
MP3 players
3. High current handling capability (300 mA continuous
Power routing
current at 3.3 V).
Battery-powered systems Communication systems
4. Low THD + N (0.02% typ).
Modems
5. Tiny SC70 package.
PCMCIA cards GENERAL DESCRIPTION Table 1. ADG841/ADG842 Truth Table
The ADG841 and ADG842 are low voltage CMOS devices
Logic (IN) ADG841 ADG842
containing a single-pole, single-throw (SPST) switch. The 0 Off On ADG841 is closed for a Logic 1 input and the ADG842 is open 1 On Off for a Logic 1 input. The devices offer ultralow on resistance of less than 0.48 Ω over the full temperature range. The ADG841/ ADG842 are fully specified for 3.3 V, 2.5 V, and 1.8 V supply operation. Each switch conducts equally well in both directions when on, and has an input signal range that extends to the supplies. The ADG841/ADG842 exhibit break-before-make switching action. The ADG841/ADG842 are available in a 6-lead SC70 package.
