Datasheet ADG601, ADG602 (Analog Devices) - 3
| Fabricante | Analog Devices |
| Descripción | 2 Ω, CMOS, ±5 V/+5 V SPST Switches |
| Páginas / Página | 12 / 3 — Data Sheet. ADG601/ADG602. SPECIFICATIONS DUAL SUPPLY. Table 2. B. … |
| Revisión | D |
| Formato / tamaño de archivo | PDF / 206 Kb |
| Idioma del documento | Inglés |
Data Sheet. ADG601/ADG602. SPECIFICATIONS DUAL SUPPLY. Table 2. B. Version1. Parameter. +25°C. −40°C to +85°C. Unit
Línea de modelo para esta hoja de datos
Versión de texto del documento
link to page 10 link to page 10 link to page 10 link to page 10 link to page 10 link to page 10 link to page 10 link to page 10 link to page 10

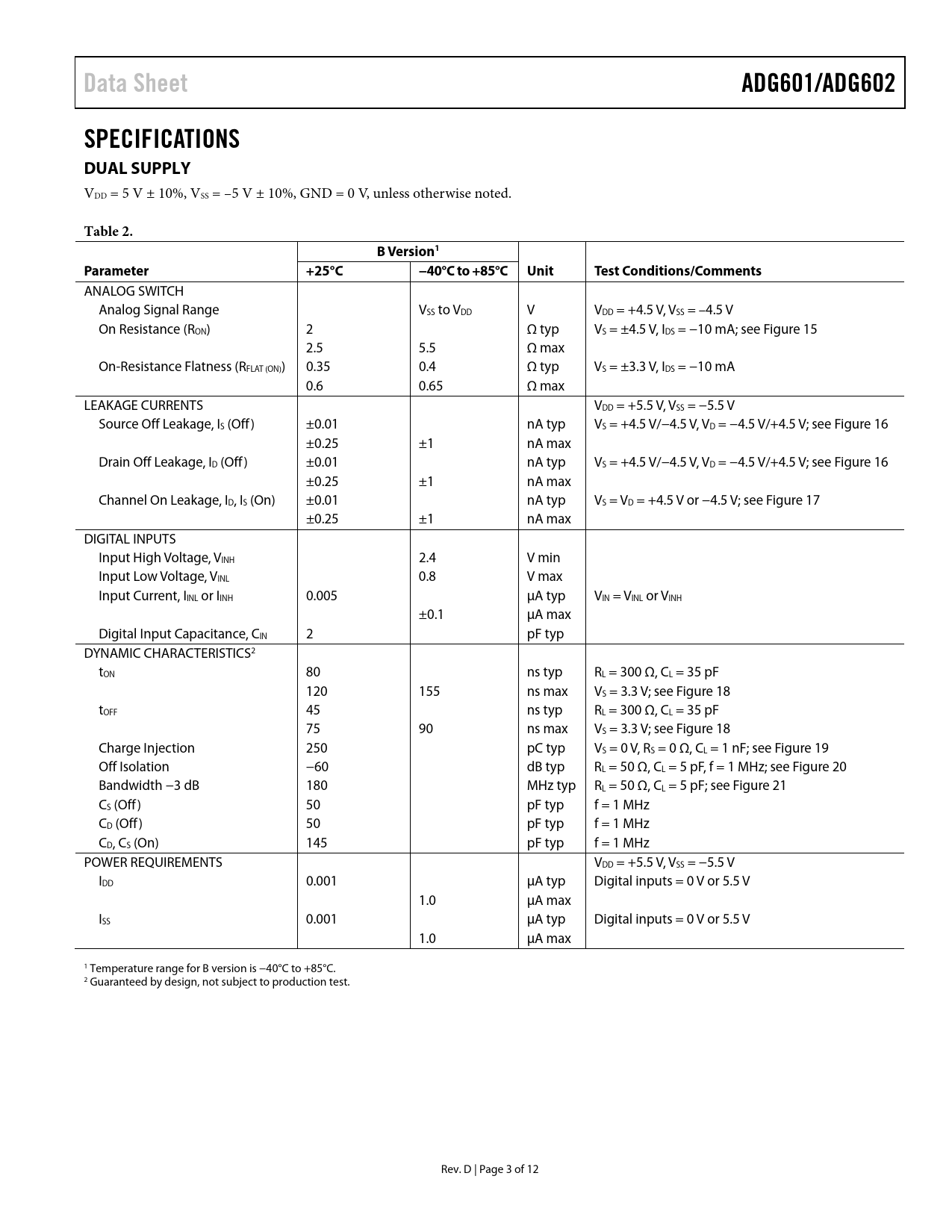

Data Sheet ADG601/ADG602 SPECIFICATIONS DUAL SUPPLY
VDD = 5 V ± 10%, VSS = –5 V ± 10%, GND = 0 V, unless otherwise noted.
Table 2. B Version1 Parameter +25°C −40°C to +85°C Unit Test Conditions/Comments
ANALOG SWITCH Analog Signal Range VSS to VDD V VDD = +4.5 V, VSS = –4.5 V On Resistance (RON) 2 Ω typ VS = ±4.5 V, IDS = −10 mA; see Figure 15 2.5 5.5 Ω max On-Resistance Flatness (RFLAT (ON)) 0.35 0.4 Ω typ VS = ±3.3 V, IDS = −10 mA 0.6 0.65 Ω max LEAKAGE CURRENTS VDD = +5.5 V, VSS = −5.5 V Source Off Leakage, IS (Off ) ±0.01 nA typ VS = +4.5 V/−4.5 V, VD = −4.5 V/+4.5 V; see Figure 16 ±0.25 ±1 nA max Drain Off Leakage, ID (Off ) ±0.01 nA typ VS = +4.5 V/−4.5 V, VD = −4.5 V/+4.5 V; see Figure 16 ±0.25 ±1 nA max Channel On Leakage, ID, IS (On) ±0.01 nA typ VS = VD = +4.5 V or −4.5 V; see Figure 17 ±0.25 ±1 nA max DIGITAL INPUTS Input High Voltage, VINH 2.4 V min Input Low Voltage, VINL 0.8 V max Input Current, IINL or IINH 0.005 μA typ VIN = VINL or VINH ±0.1 μA max Digital Input Capacitance, CIN 2 pF typ DYNAMIC CHARACTERISTICS2 tON 80 ns typ RL = 300 Ω, CL = 35 pF 120 155 ns max VS = 3.3 V; see Figure 18 tOFF 45 ns typ RL = 300 Ω, CL = 35 pF 75 90 ns max VS = 3.3 V; see Figure 18 Charge Injection 250 pC typ VS = 0 V, RS = 0 Ω, CL = 1 nF; see Figure 19 Off Isolation −60 dB typ RL = 50 Ω, CL = 5 pF, f = 1 MHz; see Figure 20 Bandwidth −3 dB 180 MHz typ RL = 50 Ω, CL = 5 pF; see Figure 21 CS (Off ) 50 pF typ f = 1 MHz CD (Off ) 50 pF typ f = 1 MHz CD, CS (On) 145 pF typ f = 1 MHz POWER REQUIREMENTS VDD = +5.5 V, VSS = −5.5 V IDD 0.001 μA typ Digital inputs = 0 V or 5.5 V 1.0 μA max ISS 0.001 μA typ Digital inputs = 0 V or 5.5 V 1.0 μA max 1 Temperature range for B version is −40°C to +85°C. 2 Guaranteed by design, not subject to production test. Rev. D | Page 3 of 12 Document Outline FEATURES APPLICATIONS FUNCTIONAL BLOCK DIAGRAMS GENERAL DESCRIPTION PRODUCT HIGHLIGHTS TABLE OF CONTENTS REVISION HISTORY SPECIFICATIONS DUAL SUPPLY SINGLE SUPPLY ABSOLUTE MAXIMUM RATINGS ESD CAUTION PIN CONFIGURATIONS AND FUNCTION DESCRIPTIONS TYPICAL PERFORMANCE CHARACTERISTICS TERMINOLOGY TEST CIRCUITS OUTLINE DIMENSIONS ORDERING GUIDE
Data Sheet ADG601/ADG602 SPECIFICATIONS DUAL SUPPLY
VDD = 5 V ± 10%, VSS = –5 V ± 10%, GND = 0 V, unless otherwise noted.
Table 2. B Version1 Parameter +25°C −40°C to +85°C Unit Test Conditions/Comments
ANALOG SWITCH Analog Signal Range VSS to VDD V VDD = +4.5 V, VSS = –4.5 V On Resistance (RON) 2 Ω typ VS = ±4.5 V, IDS = −10 mA; see Figure 15 2.5 5.5 Ω max On-Resistance Flatness (RFLAT (ON)) 0.35 0.4 Ω typ VS = ±3.3 V, IDS = −10 mA 0.6 0.65 Ω max LEAKAGE CURRENTS VDD = +5.5 V, VSS = −5.5 V Source Off Leakage, IS (Off ) ±0.01 nA typ VS = +4.5 V/−4.5 V, VD = −4.5 V/+4.5 V; see Figure 16 ±0.25 ±1 nA max Drain Off Leakage, ID (Off ) ±0.01 nA typ VS = +4.5 V/−4.5 V, VD = −4.5 V/+4.5 V; see Figure 16 ±0.25 ±1 nA max Channel On Leakage, ID, IS (On) ±0.01 nA typ VS = VD = +4.5 V or −4.5 V; see Figure 17 ±0.25 ±1 nA max DIGITAL INPUTS Input High Voltage, VINH 2.4 V min Input Low Voltage, VINL 0.8 V max Input Current, IINL or IINH 0.005 μA typ VIN = VINL or VINH ±0.1 μA max Digital Input Capacitance, CIN 2 pF typ DYNAMIC CHARACTERISTICS2 tON 80 ns typ RL = 300 Ω, CL = 35 pF 120 155 ns max VS = 3.3 V; see Figure 18 tOFF 45 ns typ RL = 300 Ω, CL = 35 pF 75 90 ns max VS = 3.3 V; see Figure 18 Charge Injection 250 pC typ VS = 0 V, RS = 0 Ω, CL = 1 nF; see Figure 19 Off Isolation −60 dB typ RL = 50 Ω, CL = 5 pF, f = 1 MHz; see Figure 20 Bandwidth −3 dB 180 MHz typ RL = 50 Ω, CL = 5 pF; see Figure 21 CS (Off ) 50 pF typ f = 1 MHz CD (Off ) 50 pF typ f = 1 MHz CD, CS (On) 145 pF typ f = 1 MHz POWER REQUIREMENTS VDD = +5.5 V, VSS = −5.5 V IDD 0.001 μA typ Digital inputs = 0 V or 5.5 V 1.0 μA max ISS 0.001 μA typ Digital inputs = 0 V or 5.5 V 1.0 μA max 1 Temperature range for B version is −40°C to +85°C. 2 Guaranteed by design, not subject to production test. Rev. D | Page 3 of 12 Document Outline FEATURES APPLICATIONS FUNCTIONAL BLOCK DIAGRAMS GENERAL DESCRIPTION PRODUCT HIGHLIGHTS TABLE OF CONTENTS REVISION HISTORY SPECIFICATIONS DUAL SUPPLY SINGLE SUPPLY ABSOLUTE MAXIMUM RATINGS ESD CAUTION PIN CONFIGURATIONS AND FUNCTION DESCRIPTIONS TYPICAL PERFORMANCE CHARACTERISTICS TERMINOLOGY TEST CIRCUITS OUTLINE DIMENSIONS ORDERING GUIDE
