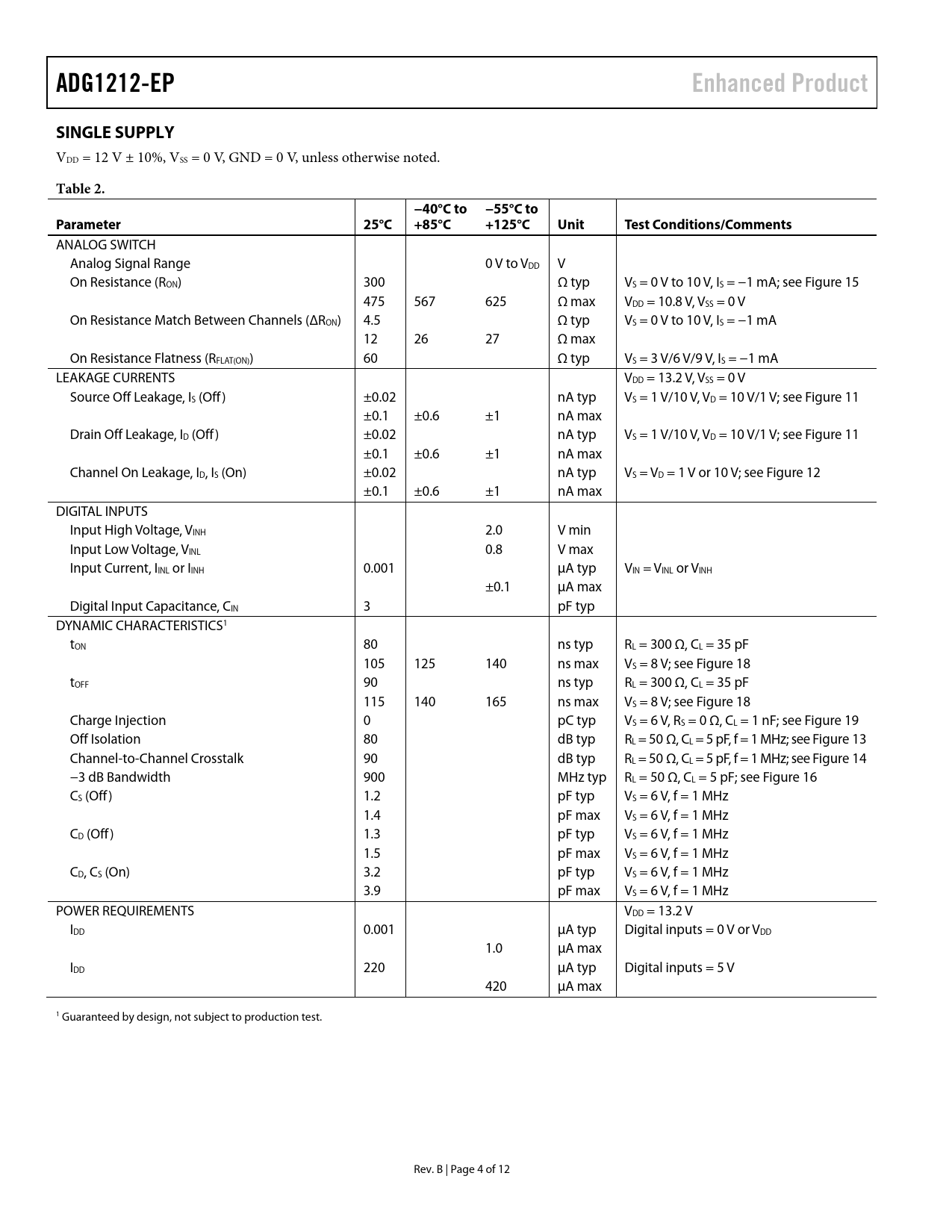

ADG1212-EP Enhanced Product SINGLE SUPPLY
VDD = 12 V ± 10%, VSS = 0 V, GND = 0 V, unless otherwise noted.
Table 2. −40°C to −55°C to Parameter 25°C +85°C +125°C Unit Test Conditions/Comments
ANALOG SWITCH Analog Signal Range 0 V to VDD V On Resistance (RON) 300 Ω typ VS = 0 V to 10 V, IS = −1 mA; see Figure 15 475 567 625 Ω max VDD = 10.8 V, VSS = 0 V On Resistance Match Between Channels (ΔRON) 4.5 Ω typ VS = 0 V to 10 V, IS = −1 mA 12 26 27 Ω max On Resistance Flatness (RFLAT(ON)) 60 Ω typ VS = 3 V/6 V/9 V, IS = −1 mA LEAKAGE CURRENTS VDD = 13.2 V, VSS = 0 V Source Off Leakage, IS (Off) ±0.02 nA typ VS = 1 V/10 V, VD = 10 V/1 V; see Figure 11 ±0.1 ±0.6 ±1 nA max Drain Off Leakage, ID (Off) ±0.02 nA typ VS = 1 V/10 V, VD = 10 V/1 V; see Figure 11 ±0.1 ±0.6 ±1 nA max Channel On Leakage, ID, IS (On) ±0.02 nA typ VS = VD = 1 V or 10 V; see Figure 12 ±0.1 ±0.6 ±1 nA max DIGITAL INPUTS Input High Voltage, VINH 2.0 V min Input Low Voltage, VINL 0.8 V max Input Current, IINL or IINH 0.001 µA typ VIN = VINL or VINH ±0.1 µA max Digital Input Capacitance, CIN 3 pF typ DYNAMIC CHARACTERISTICS1 tON 80 ns typ RL = 300 Ω, CL = 35 pF 105 125 140 ns max VS = 8 V; see Figure 18 tOFF 90 ns typ RL = 300 Ω, CL = 35 pF 115 140 165 ns max VS = 8 V; see Figure 18 Charge Injection 0 pC typ VS = 6 V, RS = 0 Ω, CL = 1 nF; see Figure 19 Off Isolation 80 dB typ RL = 50 Ω, CL = 5 pF, f = 1 MHz; see Figure 13 Channel-to-Channel Crosstalk 90 dB typ RL = 50 Ω, CL = 5 pF, f = 1 MHz; see Figure 14 −3 dB Bandwidth 900 MHz typ RL = 50 Ω, CL = 5 pF; see Figure 16 CS (Off) 1.2 pF typ VS = 6 V, f = 1 MHz 1.4 pF max VS = 6 V, f = 1 MHz CD (Off) 1.3 pF typ VS = 6 V, f = 1 MHz 1.5 pF max VS = 6 V, f = 1 MHz CD, CS (On) 3.2 pF typ VS = 6 V, f = 1 MHz 3.9 pF max VS = 6 V, f = 1 MHz POWER REQUIREMENTS VDD = 13.2 V IDD 0.001 µA typ Digital inputs = 0 V or VDD 1.0 µA max IDD 220 µA typ Digital inputs = 5 V 420 µA max 1 Guaranteed by design, not subject to production test. Rev. B | Page 4 of 12 Document Outline Features Enhanced Product Features Applications General Description Functional Block Diagram Product Highlights Revision History Specifications Dual Supply Single Supply Absolute Maximum Ratings ESD Caution Pin Configuration and Function Descriptions Typical Performance Characteristics Test Circuits Outline Dimensions Ordering Guide
ADG1212-EP Enhanced Product SINGLE SUPPLY
VDD = 12 V ± 10%, VSS = 0 V, GND = 0 V, unless otherwise noted.
Table 2. −40°C to −55°C to Parameter 25°C +85°C +125°C Unit Test Conditions/Comments
ANALOG SWITCH Analog Signal Range 0 V to VDD V On Resistance (RON) 300 Ω typ VS = 0 V to 10 V, IS = −1 mA; see Figure 15 475 567 625 Ω max VDD = 10.8 V, VSS = 0 V On Resistance Match Between Channels (ΔRON) 4.5 Ω typ VS = 0 V to 10 V, IS = −1 mA 12 26 27 Ω max On Resistance Flatness (RFLAT(ON)) 60 Ω typ VS = 3 V/6 V/9 V, IS = −1 mA LEAKAGE CURRENTS VDD = 13.2 V, VSS = 0 V Source Off Leakage, IS (Off) ±0.02 nA typ VS = 1 V/10 V, VD = 10 V/1 V; see Figure 11 ±0.1 ±0.6 ±1 nA max Drain Off Leakage, ID (Off) ±0.02 nA typ VS = 1 V/10 V, VD = 10 V/1 V; see Figure 11 ±0.1 ±0.6 ±1 nA max Channel On Leakage, ID, IS (On) ±0.02 nA typ VS = VD = 1 V or 10 V; see Figure 12 ±0.1 ±0.6 ±1 nA max DIGITAL INPUTS Input High Voltage, VINH 2.0 V min Input Low Voltage, VINL 0.8 V max Input Current, IINL or IINH 0.001 µA typ VIN = VINL or VINH ±0.1 µA max Digital Input Capacitance, CIN 3 pF typ DYNAMIC CHARACTERISTICS1 tON 80 ns typ RL = 300 Ω, CL = 35 pF 105 125 140 ns max VS = 8 V; see Figure 18 tOFF 90 ns typ RL = 300 Ω, CL = 35 pF 115 140 165 ns max VS = 8 V; see Figure 18 Charge Injection 0 pC typ VS = 6 V, RS = 0 Ω, CL = 1 nF; see Figure 19 Off Isolation 80 dB typ RL = 50 Ω, CL = 5 pF, f = 1 MHz; see Figure 13 Channel-to-Channel Crosstalk 90 dB typ RL = 50 Ω, CL = 5 pF, f = 1 MHz; see Figure 14 −3 dB Bandwidth 900 MHz typ RL = 50 Ω, CL = 5 pF; see Figure 16 CS (Off) 1.2 pF typ VS = 6 V, f = 1 MHz 1.4 pF max VS = 6 V, f = 1 MHz CD (Off) 1.3 pF typ VS = 6 V, f = 1 MHz 1.5 pF max VS = 6 V, f = 1 MHz CD, CS (On) 3.2 pF typ VS = 6 V, f = 1 MHz 3.9 pF max VS = 6 V, f = 1 MHz POWER REQUIREMENTS VDD = 13.2 V IDD 0.001 µA typ Digital inputs = 0 V or VDD 1.0 µA max IDD 220 µA typ Digital inputs = 5 V 420 µA max 1 Guaranteed by design, not subject to production test. Rev. B | Page 4 of 12 Document Outline Features Enhanced Product Features Applications General Description Functional Block Diagram Product Highlights Revision History Specifications Dual Supply Single Supply Absolute Maximum Ratings ESD Caution Pin Configuration and Function Descriptions Typical Performance Characteristics Test Circuits Outline Dimensions Ordering Guide
