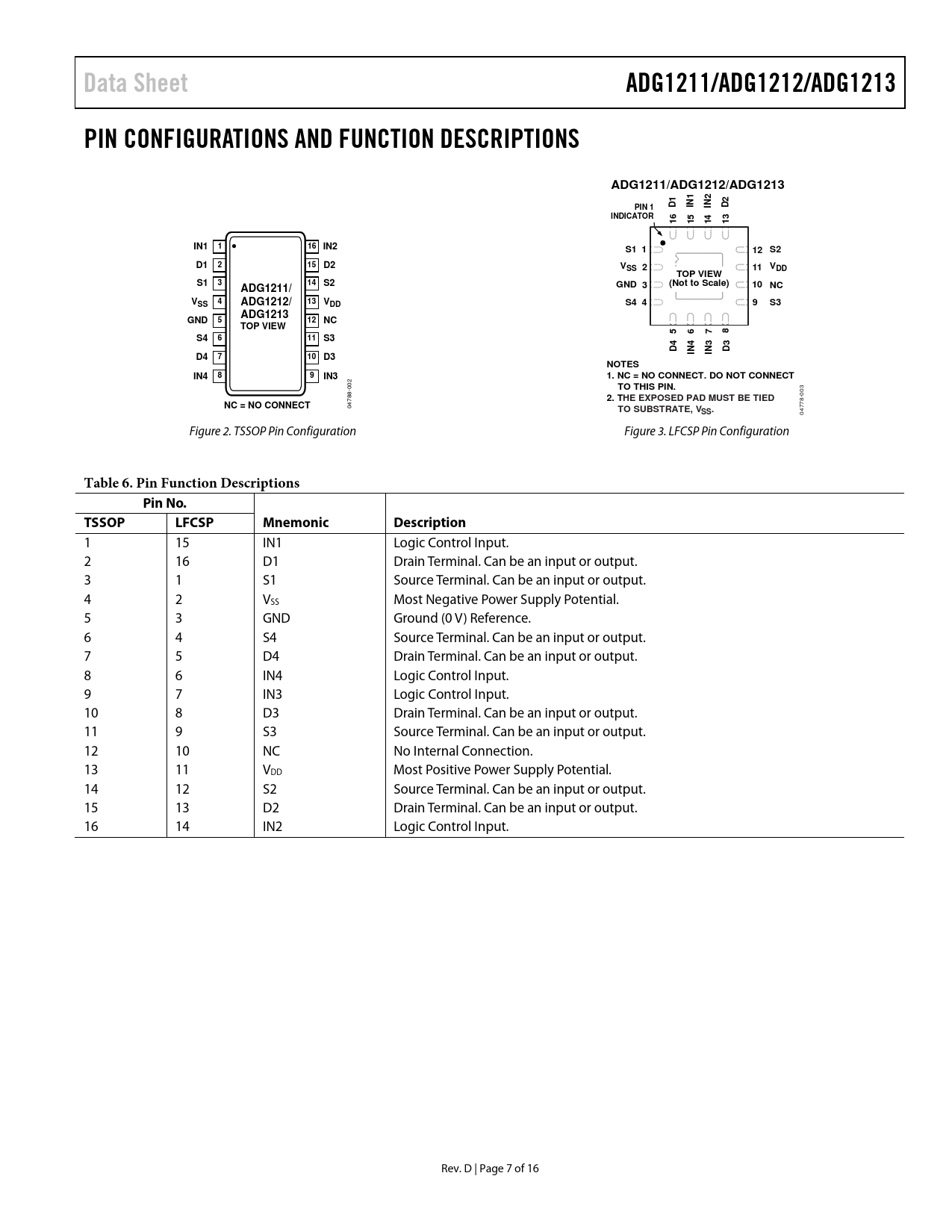

Data Sheet. ADG1211/ADG1212/ADG1213. PIN CONFIGURATIONS AND FUNCTION DESCRIPTIONS. PIN 1. INDICATOR. IN1. 16 IN2. S1 1. 12 S2. VSS 2
Línea de modelo para esta hoja de datos
Versión de texto del documento
Data Sheet ADG1211/ADG1212/ADG1213 PIN CONFIGURATIONS AND FUNCTION DESCRIPTIONS ADG1211/ADG1212/ADG1213 N1 N2 PIN 1 D1 I I D2 INDICATOR 16 15 14 13 IN1 1 16 IN2 S1 1 12 S2 D1 2 15 D2 VSS 2 11 VDD TOP VIEW S1 3 14 S2 (Not to Scale) ADG1211/ GND 3 10 NC V 4 SS ADG1212/ 13 VDD S4 4 9 S3 ADG1213 GND 5 12 NC TOP VIEW 5 6 7 8 S4 6 11 S3 D4 N4I N3I D3 D4 7 10 D3 NOTES 8 9 IN4 IN3 1. NC = NO CONNECT. DO NOT CONNECT TO THIS PIN.
003
2. THE EXPOSED PAD MUST BE TIED NC = NO CONNECT
04788-002
TO SUBSTRATE, VSS.
04778- Figure 2. TSSOP Pin Configuration Figure 3. LFCSP Pin Configuration
Table 6. Pin Function Descriptions Pin No. TSSOP LFCSP Mnemonic Description
1 15 IN1 Logic Control Input. 2 16 D1 Drain Terminal. Can be an input or output. 3 1 S1 Source Terminal. Can be an input or output. 4 2 VSS Most Negative Power Supply Potential. 5 3 GND Ground (0 V) Reference. 6 4 S4 Source Terminal. Can be an input or output. 7 5 D4 Drain Terminal. Can be an input or output. 8 6 IN4 Logic Control Input. 9 7 IN3 Logic Control Input. 10 8 D3 Drain Terminal. Can be an input or output. 11 9 S3 Source Terminal. Can be an input or output. 12 10 NC No Internal Connection. 13 11 VDD Most Positive Power Supply Potential. 14 12 S2 Source Terminal. Can be an input or output. 15 13 D2 Drain Terminal. Can be an input or output. 16 14 IN2 Logic Control Input. Rev. D | Page 7 of 16 Document Outline FEATURES APPLICATIONS FUNCTIONAL BLOCK DIAGRAM GENERAL DESCRIPTION PRODUCT HIGHLIGHTS REVISION HISTORY SPECIFICATIONS DUAL SUPPLY SINGLE SUPPLY ABSOLUTE MAXIMUM RATINGS ESD CAUTION PIN CONFIGURATIONS AND FUNCTION DESCRIPTIONS TERMINOLOGY TYPICAL PERFORMANCE CHARACTERISTICS TEST CIRCUITS OUTLINE DIMENSIONS ORDERING GUIDE
