ADG1233/ADG1234. Data Sheet. Y Version1. Parameter. +25°C. −40°C to +85°C. −40°C to +125°C. Unit. Test Conditions/Comments
Línea de modelo para esta hoja de datos
Versión de texto del documento

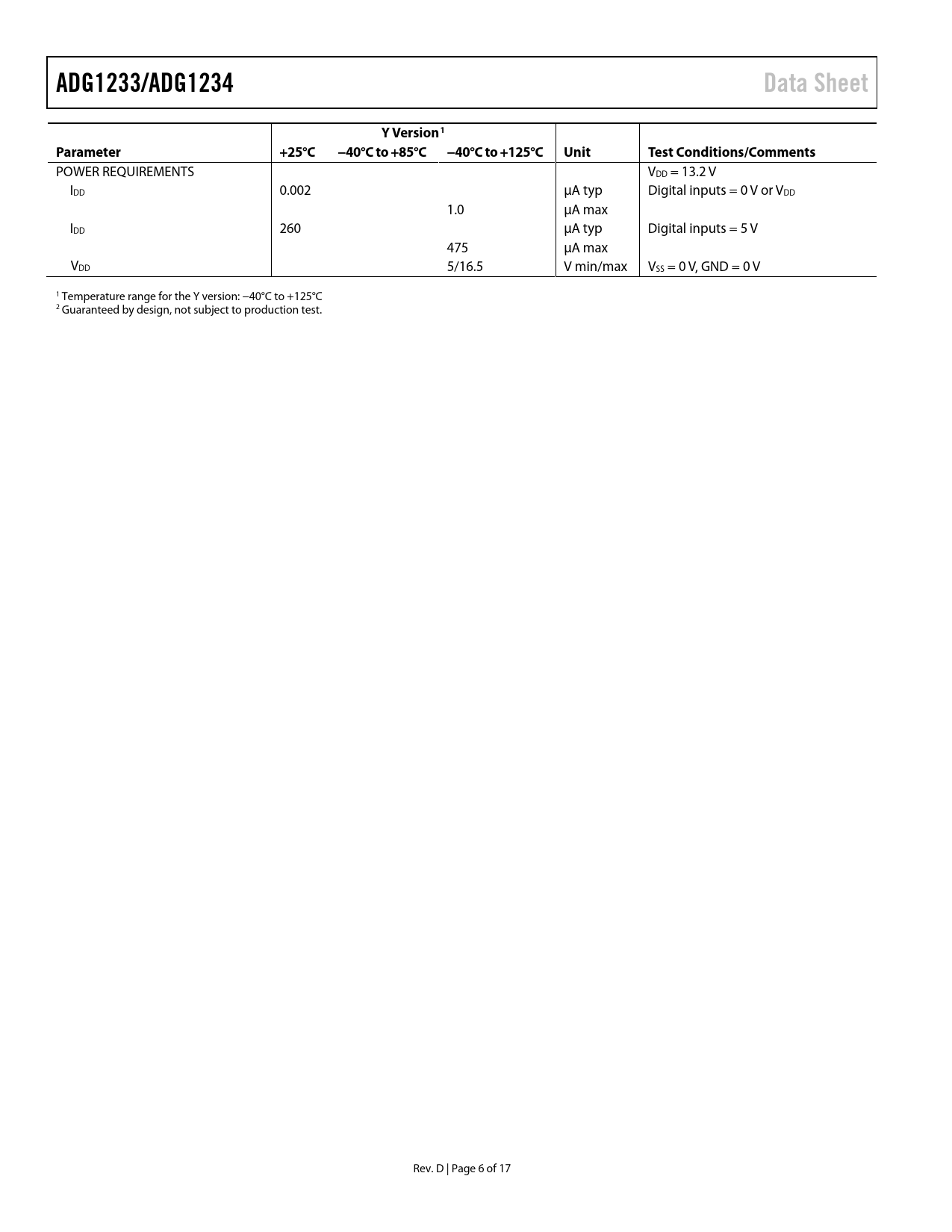

ADG1233/ADG1234 Data Sheet Y Version1 Parameter +25°C −40°C to +85°C −40°C to +125°C Unit Test Conditions/Comments
POWER REQUIREMENTS VDD = 13.2 V IDD 0.002 µA typ Digital inputs = 0 V or VDD 1.0 µA max IDD 260 µA typ Digital inputs = 5 V 475 µA max VDD 5/16.5 V min/max VSS = 0 V, GND = 0 V 1 Temperature range for the Y version: −40°C to +125°C 2 Guaranteed by design, not subject to production test. Rev. D | Page 6 of 17 Document Outline FEATURES APPLICATIONS FUNCTIONAL BLOCK DIAGRAMS GENERAL DESCRIPTION PRODUCT HIGHLIGHTS REVISION HISTORY SPECIFICATIONS DUAL SUPPLY SINGLE SUPPLY ABSOLUTE MAXIMUM RATINGS ESD CAUTION PIN CONFIGURATIONS AND FUNCTION DESCRIPTIONS TERMINOLOGY TYPICAL PERFORMANCE CHARACTERISTICS TEST CIRCUITS OUTLINE DIMENSIONS ORDERING GUIDE
