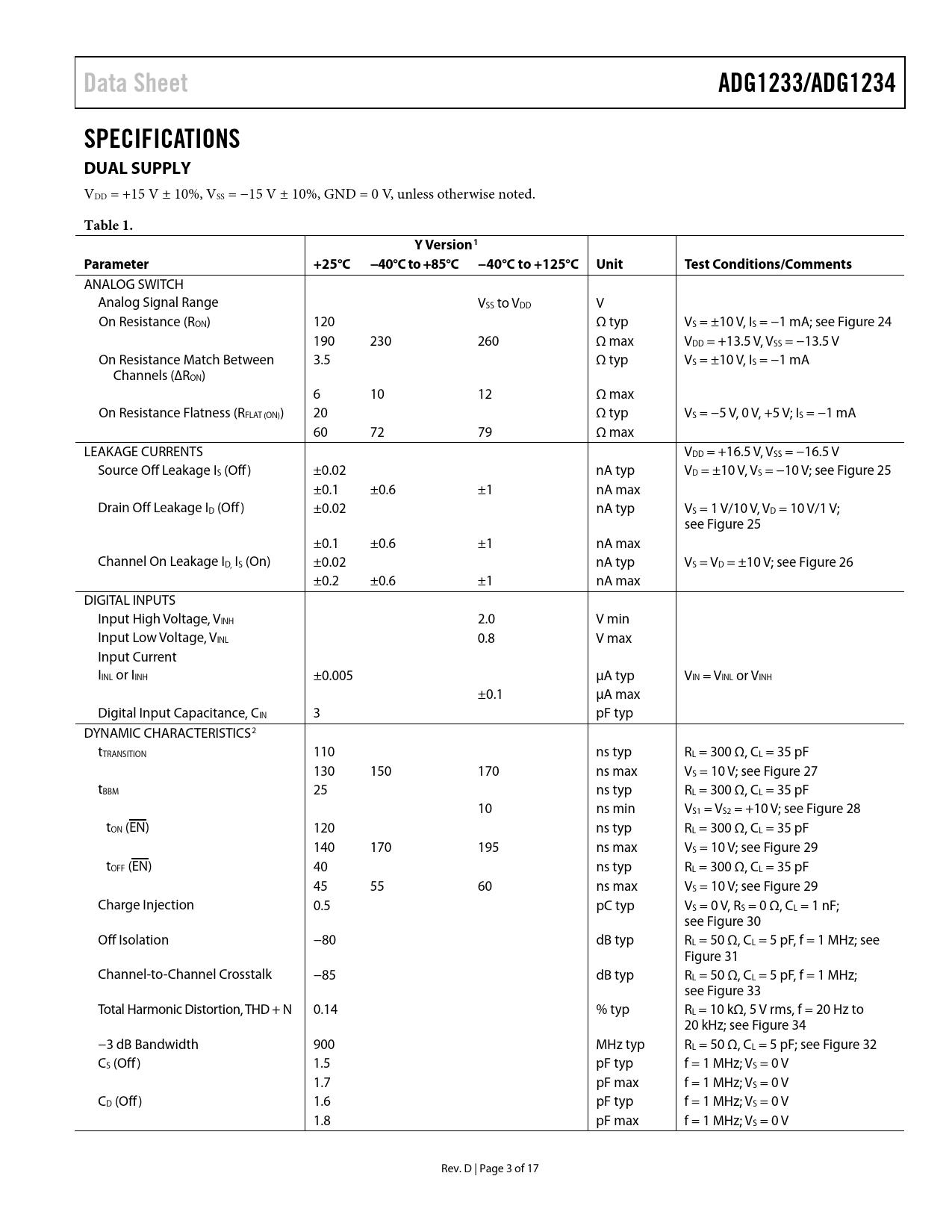

Data Sheet. ADG1233/ADG1234. SPECIFICATIONS DUAL SUPPLY. Table 1. Y Version1. Parameter. +25°C. −40°C to +85°C −40°C to +125°C Unit
Línea de modelo para esta hoja de datos
Versión de texto del documento
link to page 14 link to page 14 link to page 14 link to page 14 link to page 14 link to page 14 link to page 15 link to page 15 link to page 15 link to page 15 link to page 15 link to page 15 link to page 15 link to page 4 link to page 4
Data Sheet ADG1233/ADG1234 SPECIFICATIONS DUAL SUPPLY
VDD = +15 V ± 10%, VSS = −15 V ± 10%, GND = 0 V, unless otherwise noted.
Table 1. Y Version1 Parameter +25°C −40°C to +85°C −40°C to +125°C Unit Test Conditions/Comments
ANALOG SWITCH Analog Signal Range VSS to VDD V On Resistance (RON) 120 Ω typ VS = ±10 V, IS = −1 mA; see Figure 24 190 230 260 Ω max VDD = +13.5 V, VSS = −13.5 V On Resistance Match Between 3.5 Ω typ VS = ±10 V, IS = −1 mA Channels (∆RON) 6 10 12 Ω max On Resistance Flatness (RFLAT (ON)) 20 Ω typ VS = −5 V, 0 V, +5 V; IS = −1 mA 60 72 79 Ω max LEAKAGE CURRENTS VDD = +16.5 V, VSS = −16.5 V Source Off Leakage IS (Off) ±0.02 nA typ VD = ±10 V, VS = −10 V; see Figure 25 ±0.1 ±0.6 ±1 nA max Drain Off Leakage ID (Off) ±0.02 nA typ VS = 1 V/10 V, VD = 10 V/1 V; see Figure 25 ±0.1 ±0.6 ±1 nA max Channel On Leakage ID, IS (On) ±0.02 nA typ VS = VD = ±10 V; see Figure 26 ±0.2 ±0.6 ±1 nA max DIGITAL INPUTS Input High Voltage, VINH 2.0 V min Input Low Voltage, VINL 0.8 V max Input Current IINL or IINH ±0.005 µA typ VIN = VINL or VINH ±0.1 µA max Digital Input Capacitance, CIN 3 pF typ DYNAMIC CHARACTERISTICS2 tTRANSITION 110 ns typ RL = 300 Ω, CL = 35 pF 130 150 170 ns max VS = 10 V; see Figure 27 tBBM 25 ns typ RL = 300 Ω, CL = 35 pF 10 ns min VS1 = VS2 = +10 V; see Figure 28 tON (EN) 120 ns typ RL = 300 Ω, CL = 35 pF 140 170 195 ns max VS = 10 V; see Figure 29 tOFF (EN) 40 ns typ RL = 300 Ω, CL = 35 pF 45 55 60 ns max VS = 10 V; see Figure 29 Charge Injection 0.5 pC typ VS = 0 V, RS = 0 Ω, CL = 1 nF; see Figure 30 Off Isolation −80 dB typ RL = 50 Ω, CL = 5 pF, f = 1 MHz; see Figure 31 Channel-to-Channel Crosstalk −85 dB typ RL = 50 Ω, CL = 5 pF, f = 1 MHz; see Figure 33 Total Harmonic Distortion, THD + N 0.14 % typ RL = 10 kΩ, 5 V rms, f = 20 Hz to 20 kHz; see Figure 34 −3 dB Bandwidth 900 MHz typ RL = 50 Ω, CL = 5 pF; see Figure 32 CS (Off) 1.5 pF typ f = 1 MHz; VS = 0 V 1.7 pF max f = 1 MHz; VS = 0 V CD (Off) 1.6 pF typ f = 1 MHz; VS = 0 V 1.8 pF max f = 1 MHz; VS = 0 V Rev. D | Page 3 of 17 Document Outline FEATURES APPLICATIONS FUNCTIONAL BLOCK DIAGRAMS GENERAL DESCRIPTION PRODUCT HIGHLIGHTS REVISION HISTORY SPECIFICATIONS DUAL SUPPLY SINGLE SUPPLY ABSOLUTE MAXIMUM RATINGS ESD CAUTION PIN CONFIGURATIONS AND FUNCTION DESCRIPTIONS TERMINOLOGY TYPICAL PERFORMANCE CHARACTERISTICS TEST CIRCUITS OUTLINE DIMENSIONS ORDERING GUIDE
Data Sheet ADG1233/ADG1234 SPECIFICATIONS DUAL SUPPLY
VDD = +15 V ± 10%, VSS = −15 V ± 10%, GND = 0 V, unless otherwise noted.
Table 1. Y Version1 Parameter +25°C −40°C to +85°C −40°C to +125°C Unit Test Conditions/Comments
