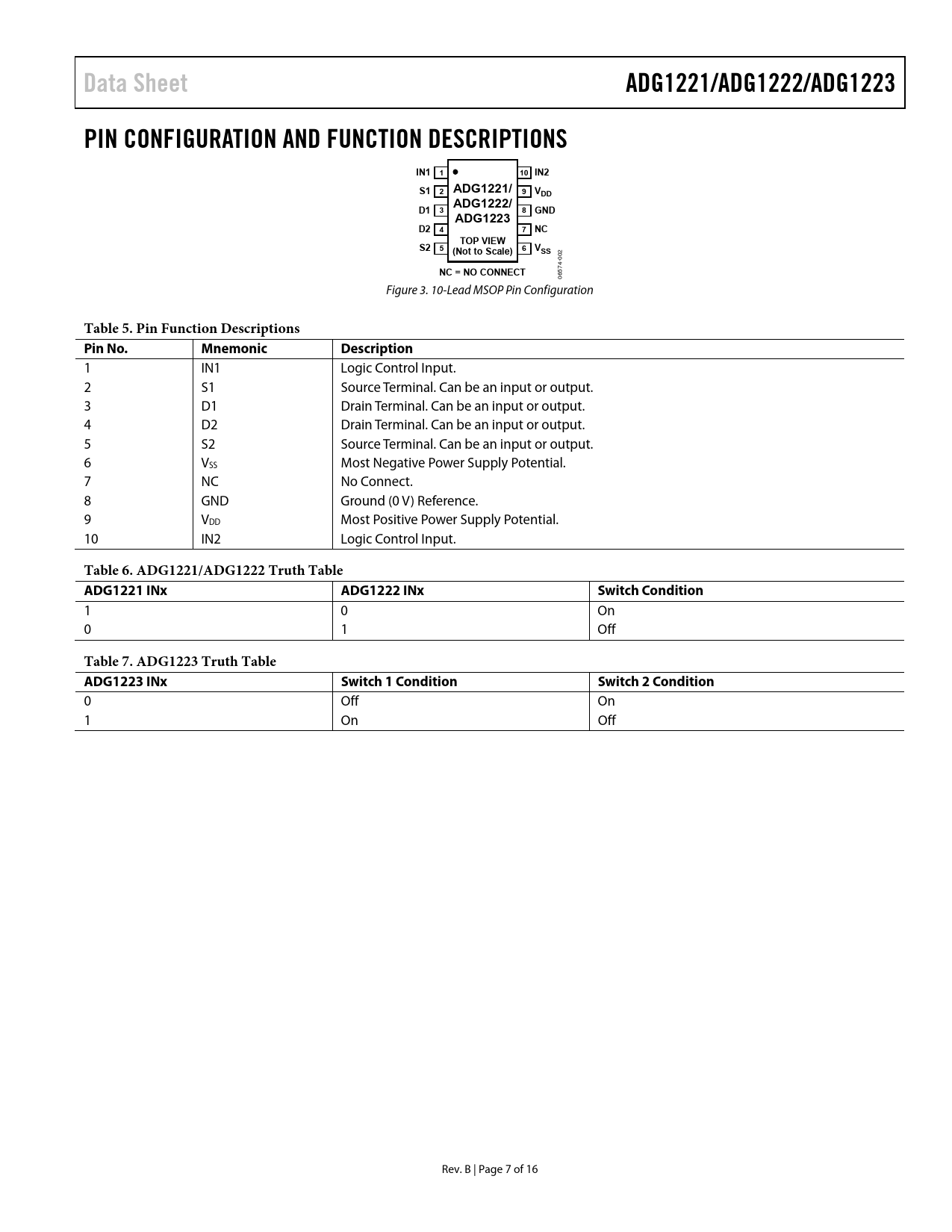

Data Sheet ADG1221/ADG1222/ADG1223 PIN CONFIGURATION AND FUNCTION DESCRIPTIONS IN1 1 10 IN2 S1 2 ADG1221/ 9 VDD ADG1222/ D1 3 8 GND ADG1223 D2 4 7 NC TOP VIEW S2 5 6 V (Not to Scale) SS
2 00 4- 57
NC = NO CONNECT
06 Figure 3. 10-Lead MSOP Pin Configuration
Table 5. Pin Function Descriptions Pin No. Mnemonic Description
1 IN1 Logic Control Input. 2 S1 Source Terminal. Can be an input or output. 3 D1 Drain Terminal. Can be an input or output. 4 D2 Drain Terminal. Can be an input or output. 5 S2 Source Terminal. Can be an input or output. 6 VSS Most Negative Power Supply Potential. 7 NC No Connect. 8 GND Ground (0 V) Reference. 9 VDD Most Positive Power Supply Potential. 10 IN2 Logic Control Input.
Table 6. ADG1221/ADG1222 Truth Table ADG1221 INx ADG1222 INx Switch Condition
1 0 On 0 1 Off
Table 7. ADG1223 Truth Table ADG1223 INx Switch 1 Condition Switch 2 Condition
0 Off On 1 On Off Rev. B | Page 7 of 16 Document Outline FEATURES APPLICATIONS FUNCTIONAL BLOCK DIAGRAM GENERAL DESCRIPTION REVISION HISTORY SPECIFICATIONS DUAL SUPPLY SINGLE SUPPLY ABSOLUTE MAXIMUM RATINGS THERMAL RESISTANCE ESD CAUTION PIN CONFIGURATION AND FUNCTION DESCRIPTIONS TERMINOLOGY TYPICAL PERFORMANCE CHARACTERISTICS TEST CIRCUITS OUTLINE DIMENSIONS ORDERING GUIDE
