Datasheet ADG1636 (Analog Devices) - 7

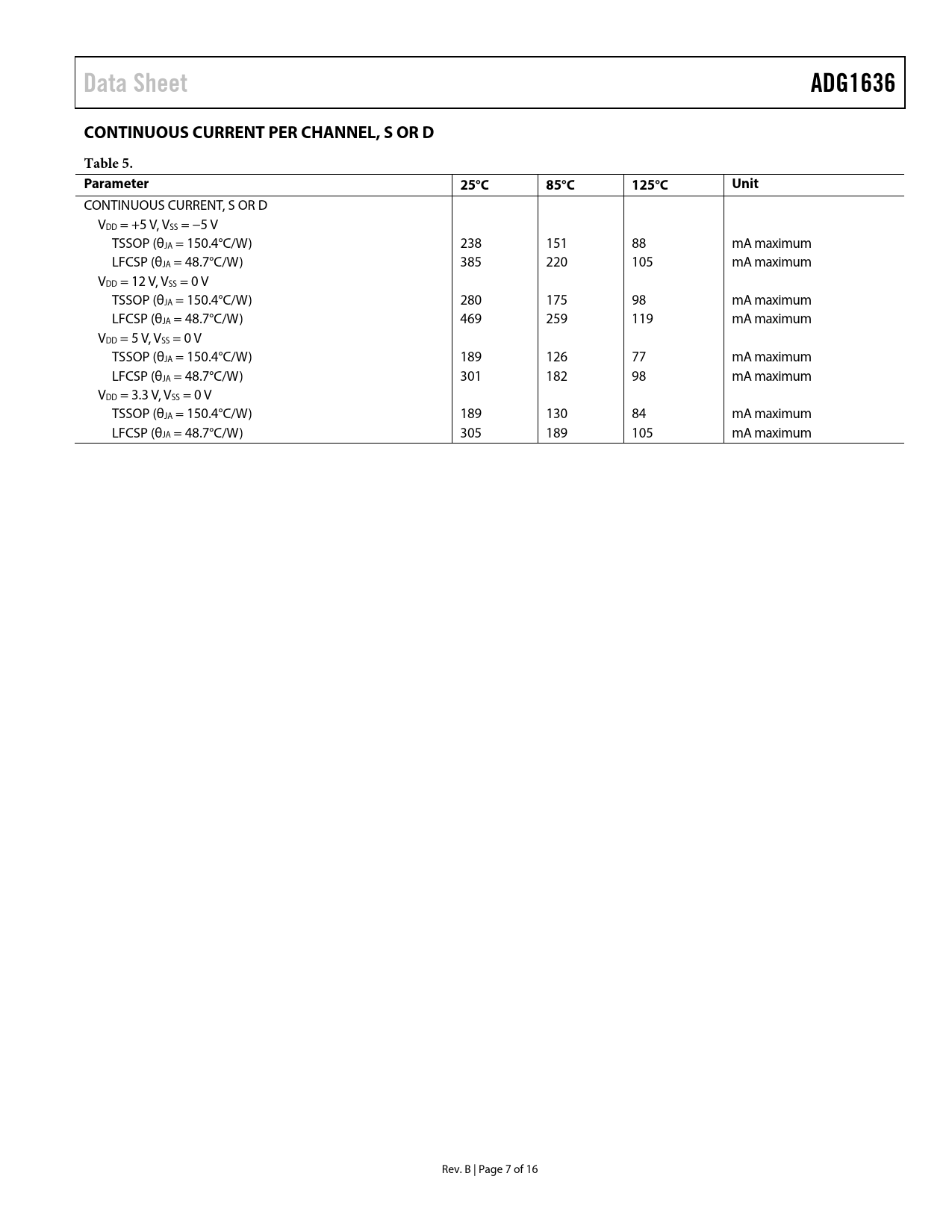

Data Sheet ADG1636 CONTINUOUS CURRENT PER CHANNEL, S OR D Table 5. Parameter 25°C 85°C 125°C Unit
CONTINUOUS CURRENT, S OR D VDD = +5 V, VSS = −5 V TSSOP (θJA = 150.4°C/W) 238 151 88 mA maximum LFCSP (θJA = 48.7°C/W) 385 220 105 mA maximum VDD = 12 V, VSS = 0 V TSSOP (θJA = 150.4°C/W) 280 175 98 mA maximum LFCSP (θJA = 48.7°C/W) 469 259 119 mA maximum VDD = 5 V, VSS = 0 V TSSOP (θJA = 150.4°C/W) 189 126 77 mA maximum LFCSP (θJA = 48.7°C/W) 301 182 98 mA maximum VDD = 3.3 V, VSS = 0 V TSSOP (θJA = 150.4°C/W) 189 130 84 mA maximum LFCSP (θJA = 48.7°C/W) 305 189 105 mA maximum Rev. B | Page 7 of 16 Document Outline FEATURES APPLICATIONS FUNCTIONAL BLOCK DIAGRAMS GENERAL DESCRIPTION PRODUCT HIGHLIGHTS TABLE OF CONTENTS REVISION HISTORY SPECIFICATIONS ±5 V DUAL SUPPLY 12 V SINGLE SUPPLY 5 V SINGLE SUPPLY 3.3 V SINGLE SUPPLY CONTINUOUS CURRENT PER CHANNEL, S OR D ABSOLUTE MAXIMUM RATINGS ESD CAUTION PIN CONFIGURATIONS AND FUNCTION DESCRIPTIONS TYPICAL PERFORMANCE CHARACTERISTICS TEST CIRCUITS TERMINOLOGY OUTLINE DIMENSIONS ORDERING GUIDE
