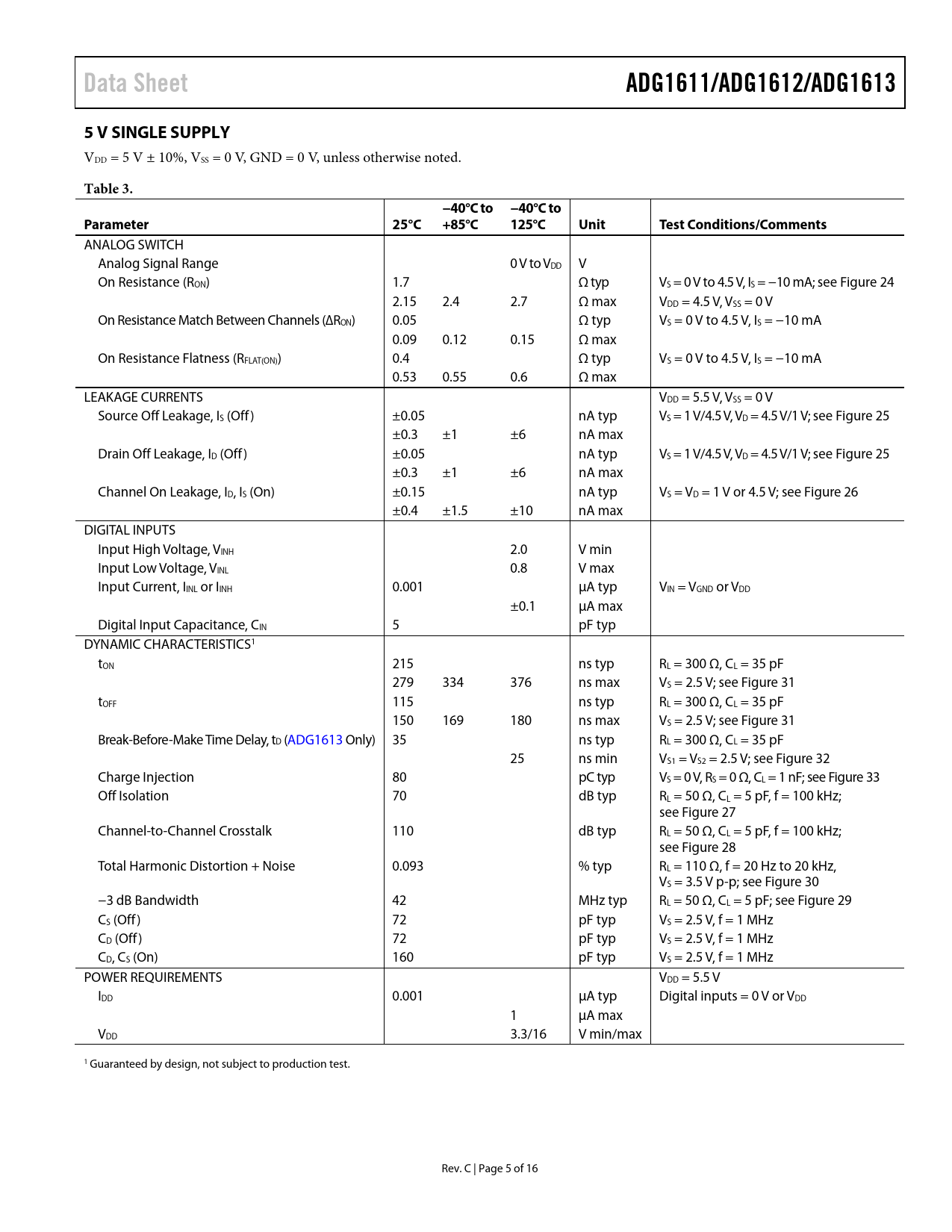

Data Sheet ADG1611/ADG1612/ADG1613 5 V SINGLE SUPPLY
VDD = 5 V ± 10%, VSS = 0 V, GND = 0 V, unless otherwise noted.
Table 3. −40°C to −40°C to Parameter 25°C +85°C 125°C Unit Test Conditions/Comments
ANALOG SWITCH Analog Signal Range 0 V to VDD V On Resistance (RON) 1.7 Ω typ VS = 0 V to 4.5 V, IS = −10 mA; see Figure 24 2.15 2.4 2.7 Ω max VDD = 4.5 V, VSS = 0 V On Resistance Match Between Channels (∆RON) 0.05 Ω typ VS = 0 V to 4.5 V, IS = −10 mA 0.09 0.12 0.15 Ω max On Resistance Flatness (RFLAT(ON)) 0.4 Ω typ VS = 0 V to 4.5 V, IS = −10 mA 0.53 0.55 0.6 Ω max LEAKAGE CURRENTS VDD = 5.5 V, VSS = 0 V Source Off Leakage, IS (Off) ±0.05 nA typ VS = 1 V/4.5 V, VD = 4.5 V/1 V; see Figure 25 ±0.3 ±1 ±6 nA max Drain Off Leakage, ID (Off) ±0.05 nA typ VS = 1 V/4.5 V, VD = 4.5 V/1 V; see Figure 25 ±0.3 ±1 ±6 nA max Channel On Leakage, ID, IS (On) ±0.15 nA typ VS = VD = 1 V or 4.5 V; see Figure 26 ±0.4 ±1.5 ±10 nA max DIGITAL INPUTS Input High Voltage, VINH 2.0 V min Input Low Voltage, VINL 0.8 V max Input Current, IINL or IINH 0.001 µA typ VIN = VGND or VDD ±0.1 µA max Digital Input Capacitance, CIN 5 pF typ DYNAMIC CHARACTERISTICS1 tON 215 ns typ RL = 300 Ω, CL = 35 pF 279 334 376 ns max VS = 2.5 V; see Figure 31 tOFF 115 ns typ RL = 300 Ω, CL = 35 pF 150 169 180 ns max VS = 2.5 V; see Figure 31 Break-Before-Make Time Delay, tD (ADG1613 Only) 35 ns typ RL = 300 Ω, CL = 35 pF 25 ns min VS1 = VS2 = 2.5 V; see Figure 32 Charge Injection 80 pC typ VS = 0 V, RS = 0 Ω, CL = 1 nF; see Figure 33 Off Isolation 70 dB typ RL = 50 Ω, CL = 5 pF, f = 100 kHz; see Figure 27 Channel-to-Channel Crosstalk 110 dB typ RL = 50 Ω, CL = 5 pF, f = 100 kHz; see Figure 28 Total Harmonic Distortion + Noise 0.093 % typ RL = 110 Ω, f = 20 Hz to 20 kHz, VS = 3.5 V p-p; see Figure 30 −3 dB Bandwidth 42 MHz typ RL = 50 Ω, CL = 5 pF; see Figure 29 CS (Off) 72 pF typ VS = 2.5 V, f = 1 MHz CD (Off) 72 pF typ VS = 2.5 V, f = 1 MHz CD, CS (On) 160 pF typ VS = 2.5 V, f = 1 MHz POWER REQUIREMENTS VDD = 5.5 V IDD 0.001 µA typ Digital inputs = 0 V or VDD 1 µA max VDD 3.3/16 V min/max 1 Guaranteed by design, not subject to production test. Rev. C | Page 5 of 16 Document Outline FEATURES APPLICATIONS GENERAL DESCRIPTION FUNCTIONAL BLOCK DIAGRAMS PRODUCT HIGHLIGHTS TABLE OF CONTENTS REVISION HISTORY SPECIFICATIONS ±5 V DUAL SUPPLY 12 V SINGLE SUPPLY 5 V SINGLE SUPPLY 3.3 V SINGLE SUPPLY CONTINUOUS CURRENT PER CHANNEL, S OR D ABSOLUTE MAXIMUM RATINGS ESD CAUTION PIN CONFIGURATIONS AND FUNCTION DESCRIPTIONS TYPICAL PERFORMANCE CHARACTERISTICS TEST CIRCUITS TERMINOLOGY OUTLINE DIMENSIONS ORDERING GUIDE
