Datasheet ADG1634-KGD (Analog Devices) - 5
| Fabricante | Analog Devices |
| Descripción | 4.5 Ω RON, Quad SPDT ±5 V, +12 V, +5 V, and +3.3 V Switch |
| Páginas / Página | 13 / 5 — Data Sheet. ADG1634-KGD. −40°C to −40°C to. Parameter. 25°C +85°C. … |
| Formato / tamaño de archivo | PDF / 368 Kb |
| Idioma del documento | Inglés |

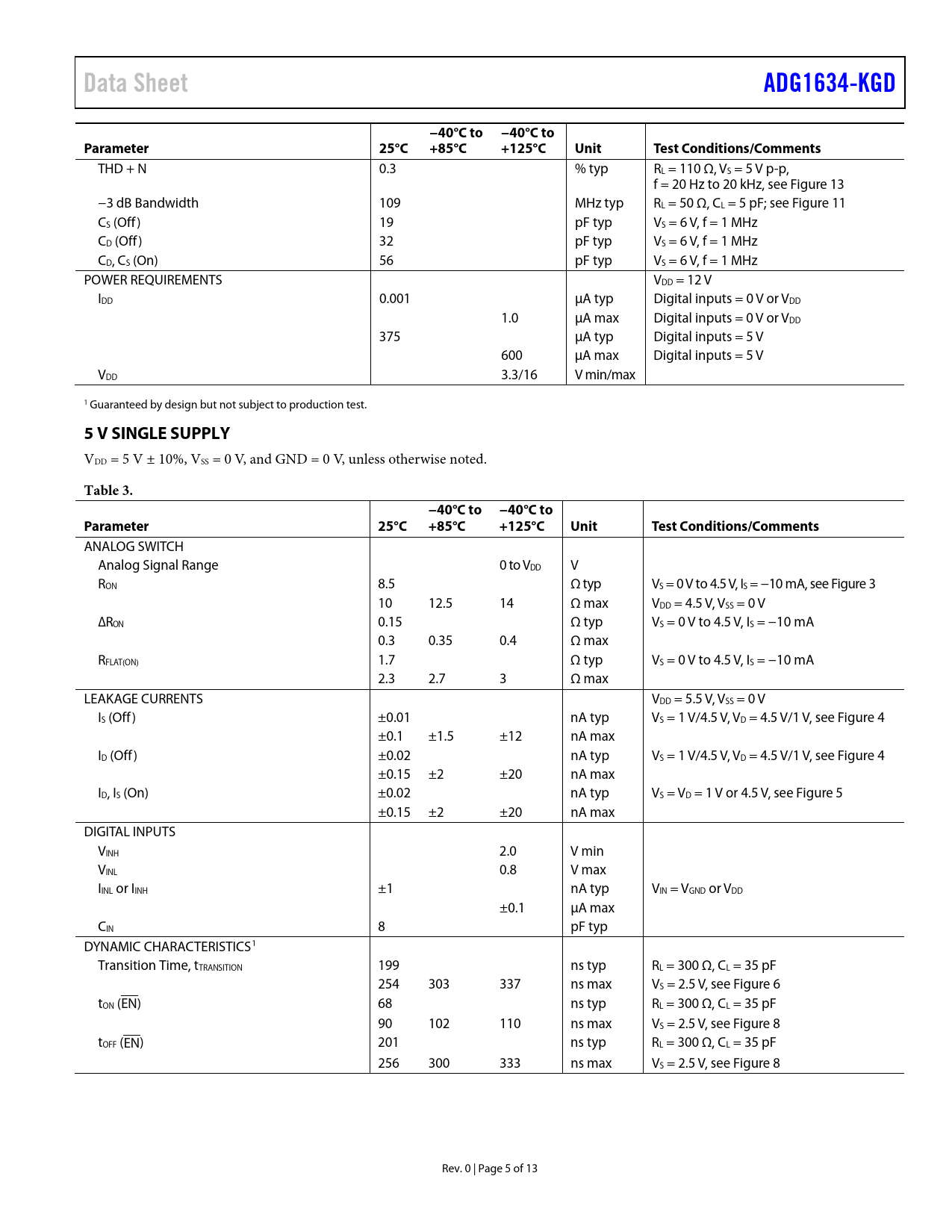

Data Sheet. ADG1634-KGD. −40°C to −40°C to. Parameter. 25°C +85°C. +125°C. Unit. Test Conditions/Comments. 5 V SINGLE SUPPLY. Table 3
Línea de modelo para esta hoja de datos
Versión de texto del documento
link to page 12 link to page 12 link to page 11 link to page 11 link to page 11 link to page 11 link to page 11 link to page 11 link to page 11 link to page 6
Data Sheet ADG1634-KGD −40°C to −40°C to Parameter 25°C +85°C +125°C Unit Test Conditions/Comments
THD + N 0.3 % typ RL = 110 Ω, VS = 5 V p-p, f = 20 Hz to 20 kHz, see Figure 13 −3 dB Bandwidth 109 MHz typ RL = 50 Ω, CL = 5 pF; see Figure 11 CS (Off) 19 pF typ VS = 6 V, f = 1 MHz CD (Off) 32 pF typ VS = 6 V, f = 1 MHz CD, CS (On) 56 pF typ VS = 6 V, f = 1 MHz POWER REQUIREMENTS VDD = 12 V IDD 0.001 µA typ Digital inputs = 0 V or VDD 1.0 µA max Digital inputs = 0 V or VDD 375 µA typ Digital inputs = 5 V 600 µA max Digital inputs = 5 V VDD 3.3/16 V min/max 1 Guaranteed by design but not subject to production test.
5 V SINGLE SUPPLY
VDD = 5 V ± 10%, VSS = 0 V, and GND = 0 V, unless otherwise noted.
Table 3. −40°C to −40°C to Parameter 25°C +85°C +125°C Unit Test Conditions/Comments
ANALOG SWITCH Analog Signal Range 0 to VDD V RON 8.5 Ω typ VS = 0 V to 4.5 V, IS = −10 mA, see Figure 3 10 12.5 14 Ω max VDD = 4.5 V, VSS = 0 V ∆RON 0.15 Ω typ VS = 0 V to 4.5 V, IS = −10 mA 0.3 0.35 0.4 Ω max RFLAT(ON) 1.7 Ω typ VS = 0 V to 4.5 V, IS = −10 mA 2.3 2.7 3 Ω max LEAKAGE CURRENTS VDD = 5.5 V, VSS = 0 V IS (Off) ±0.01 nA typ VS = 1 V/4.5 V, VD = 4.5 V/1 V, see Figure 4 ±0.1 ±1.5 ±12 nA max ID (Off) ±0.02 nA typ VS = 1 V/4.5 V, VD = 4.5 V/1 V, see Figure 4 ±0.15 ±2 ±20 nA max ID, IS (On) ±0.02 nA typ VS = VD = 1 V or 4.5 V, see Figure 5 ±0.15 ±2 ±20 nA max DIGITAL INPUTS VINH 2.0 V min VINL 0.8 V max IINL or IINH ±1 nA typ VIN = VGND or VDD ±0.1 µA max CIN 8 pF typ DYNAMIC CHARACTERISTICS1 Transition Time, tTRANSITION 199 ns typ RL = 300 Ω, CL = 35 pF 254 303 337 ns max VS = 2.5 V, see Figure 6 tON (EN) 68 ns typ RL = 300 Ω, CL = 35 pF 90 102 110 ns max VS = 2.5 V, see Figure 8 tOFF (EN) 201 ns typ RL = 300 Ω, CL = 35 pF 256 300 333 ns max VS = 2.5 V, see Figure 8 Rev. 0 | Page 5 of 13 Document Outline FEATURES APPLICATIONS GENERAL DESCRIPTION FUNCTIONAL BLOCK DIAGRAM TABLE OF CONTENTS REVISION HISTORY SPECIFICATIONS ±5 V DUAL SUPPLY 12 V SINGLE SUPPLY 5 V SINGLE SUPPLY 3.3 V SINGLE SUPPLY CONTINUOUS CURRENT PER CHANNEL, S OR D ABSOLUTE MAXIMUM RATINGS ESD CAUTION PIN CONFIGURATION AND FUNCTION DESCRIPTIONS TEST CIRCUITS OUTLINE DIMENSIONS DIE SPECIFICATIONS AND ASSEMBLY RECOMMENDATIONS ORDERING GUIDE
