Datasheet ADG1608, ADG1609 (Analog Devices)

FabricanteAnalog Devices
Descripción4.5 Ω RON, 8-Channel ±5 V,+12 V, +5 V, and +3.3 V Multiplexer
Páginas / Página20 / 1 — 4.5 Ω RON, 4-/8-Channel. ±5 V, +12 V, +5 V, and +3.3 V Multiplexers. Data …
RevisiónA
Formato / tamaño de archivoPDF / 480 Kb
Idioma del documentoInglés

4.5 Ω RON, 4-/8-Channel. ±5 V, +12 V, +5 V, and +3.3 V Multiplexers. Data Sheet. ADG1608/. ADG1609. FEATURES

Datasheet ADG1608, ADG1609 Analog Devices, Revisión: A

Línea de modelo para esta hoja de datos

Versión de texto del documento

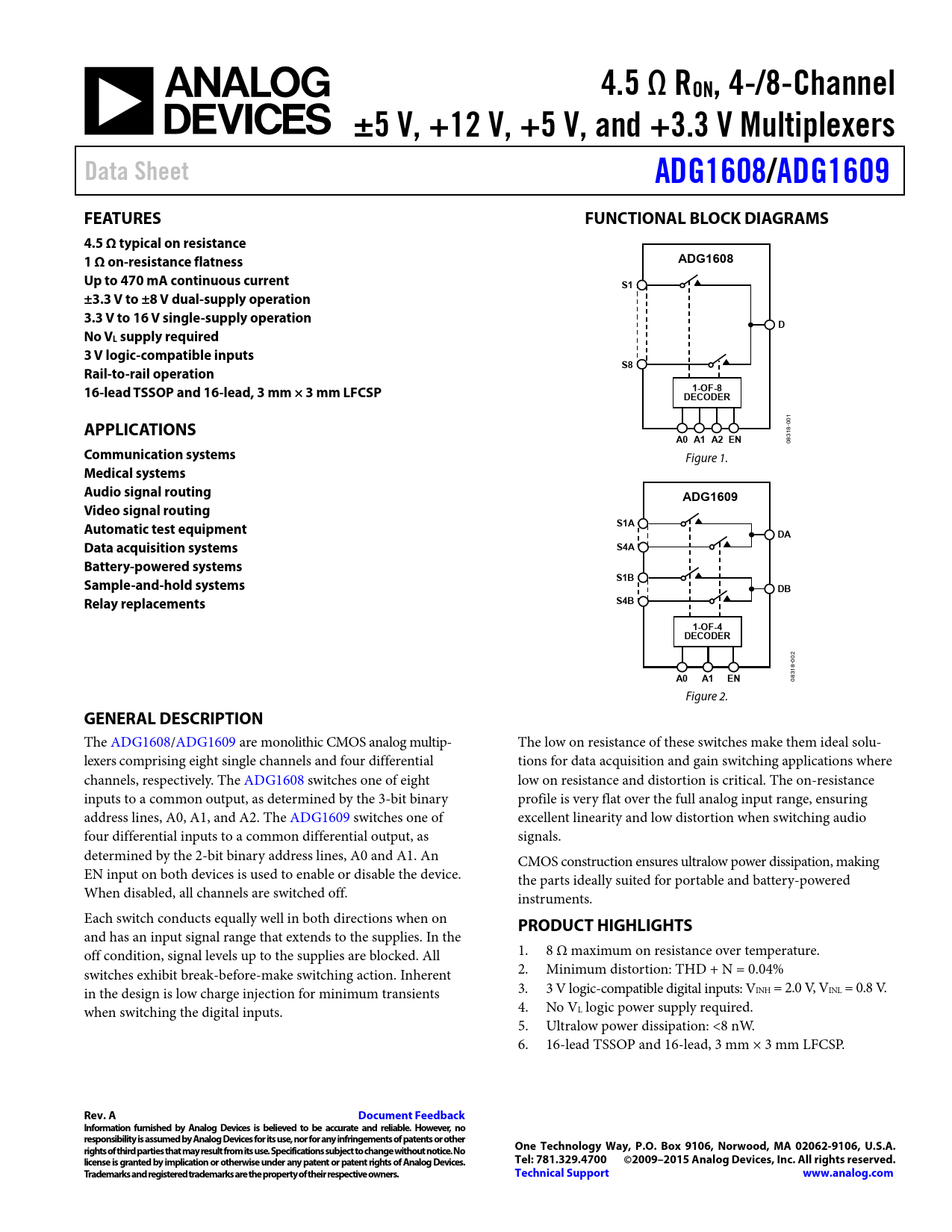

4.5 Ω RON, 4-/8-Channel ±5 V, +12 V, +5 V, and +3.3 V Multiplexers Data Sheet ADG1608/ ADG1609 FEATURES FUNCTIONAL BLOCK DIAGRAMS 4.5 Ω typical on resistance 1 Ω on-resistance flatness ADG1608 Up to 470 mA continuous current S1 ±3.3 V to ±8 V dual-supply operation 3.3 V to 16 V single-supply operation D No VL supply required 3 V logic-compatible inputs S8 Rail-to-rail operation 16-lead TSSOP and 16-lead, 3 mm × 3 mm LFCSP 1-OF-8 DECODER
01
APPLICATIONS
-0
A0 A1 A2 EN
318 08
Communication systems
Figure 1.
Medical systems Audio signal routing ADG1609 Video signal routing S1A Automatic test equipment DA Data acquisition systems S4A Battery-powered systems S1B Sample-and-hold systems DB Relay replacements S4B 1-OF-4 DECODER
2 00 8-
A0 A1 EN
831 0 Figure 2.
GENERAL DESCRIPTION
The ADG1608/ADG1609 are monolithic CMOS analog multip- The low on resistance of these switches make them ideal solu- lexers comprising eight single channels and four differential tions for data acquisition and gain switching applications where channels, respectively. The ADG1608 switches one of eight low on resistance and distortion is critical. The on-resistance inputs to a common output, as determined by the 3-bit binary profile is very flat over the full analog input range, ensuring address lines, A0, A1, and A2. The ADG1609 switches one of excellent linearity and low distortion when switching audio four differential inputs to a common differential output, as signals. determined by the 2-bit binary address lines, A0 and A1. An CMOS construction ensures ultralow power dissipation, making EN input on both devices is used to enable or disable the device. the parts ideally suited for portable and battery-powered When disabled, all channels are switched off. instruments. Each switch conducts equally well in both directions when on
PRODUCT HIGHLIGHTS
and has an input signal range that extends to the supplies. In the off condition, signal levels up to the supplies are blocked. All 1. 8 Ω maximum on resistance over temperature. switches exhibit break-before-make switching action. Inherent 2. Minimum distortion: THD + N = 0.04% in the design is low charge injection for minimum transients 3. 3 V logic-compatible digital inputs: VINH = 2.0 V, VINL = 0.8 V. when switching the digital inputs. 4. No VL logic power supply required. 5. Ultralow power dissipation: <8 nW. 6. 16-lead TSSOP and 16-lead, 3 mm × 3 mm LFCSP.
Rev. A Document Feedback Information furnished by Analog Devices is believed to be accurate and reliable. However, no responsibility is assumed by Analog Devices for its use, nor for any infringements of patents or other rights of third parties that may result from its use. Specifications subject to change without notice. No One Technology Way, P.O. Box 9106, Norwood, MA 02062-9106, U.S.A. license is granted by implication or otherwise under any patent or patent rights of Analog Devices. Tel: 781.329.4700 ©2009–2015 Analog Devices, Inc. All rights reserved. Trademarks and registered trademarks are the property of their respective owners. Technical Support www.analog.com
Document Outline FEATURES APPLICATIONS FUNCTIONAL BLOCK DIAGRAMS GENERAL DESCRIPTION PRODUCT HIGHLIGHTS TABLE OF CONTENTS REVISION HISTORY SPECIFICATIONS ±5 V DUAL SUPPLY 12 V SINGLE SUPPLY 5 V SINGLE SUPPLY 3.3 V SINGLE SUPPLY CONTINUOUS CURRENT PER CHANNEL, S OR D ABSOLUTE MAXIMUM RATINGS ESD CAUTION PIN CONFIGURATIONS AND FUNCTION DESCRIPTIONS TYPICAL PERFORMANCE CHARACTERISTICS TEST CIRCUITS TERMINOLOGY OUTLINE DIMENSIONS ORDERING GUIDE
