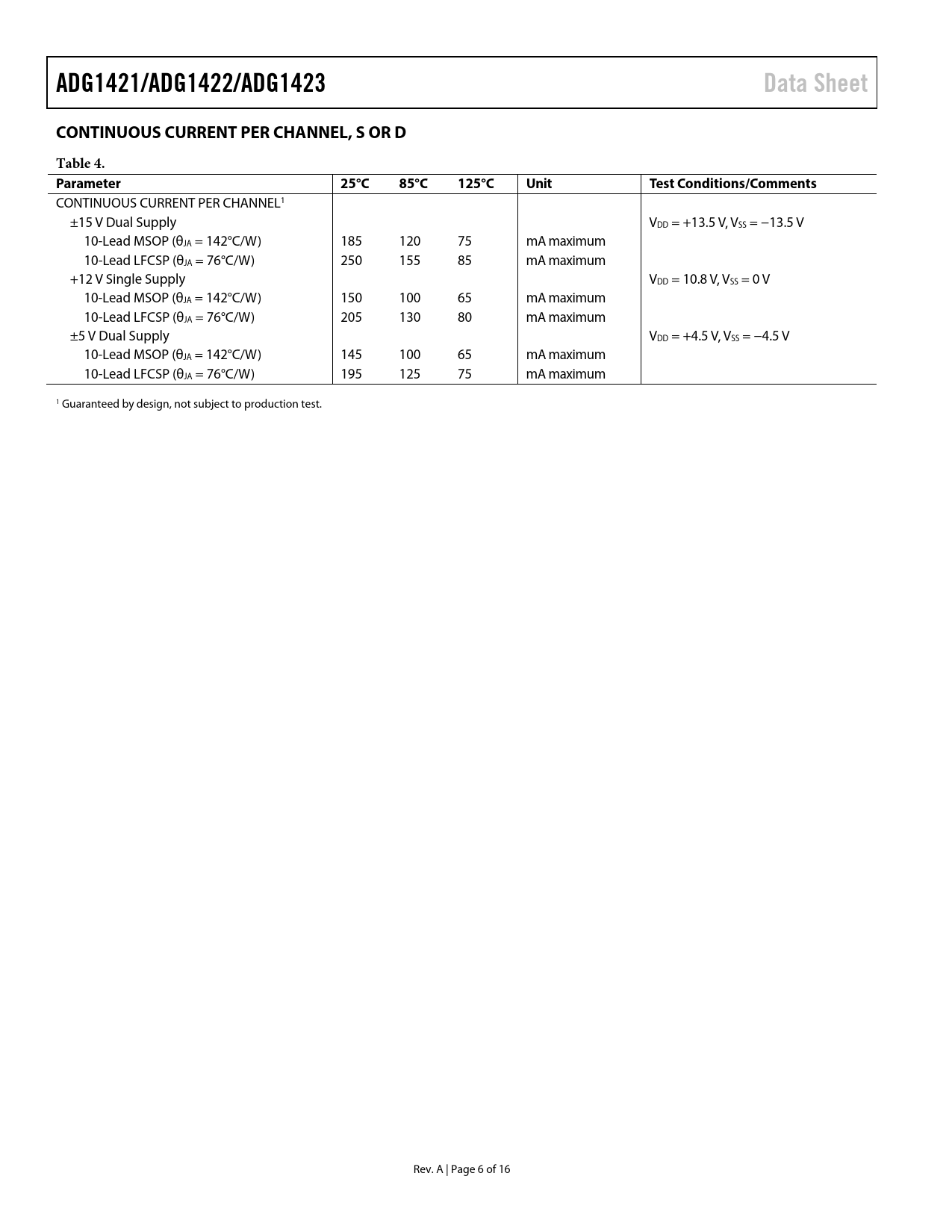

ADG1421/ADG1422/ADG1423. Data Sheet. CONTINUOUS CURRENT PER CHANNEL, S OR D. Table 4. Parameter. 25°C 85°C 125°C Unit. Test
Línea de modelo para esta hoja de datos
Versión de texto del documento
ADG1421/ADG1422/ADG1423 Data Sheet CONTINUOUS CURRENT PER CHANNEL, S OR D Table 4. Parameter 25°C 85°C 125°C Unit Test Conditions/Comments
CONTINUOUS CURRENT PER CHANNEL1 ±15 V Dual Supply VDD = +13.5 V, VSS = −13.5 V 10-Lead MSOP (θJA = 142°C/W) 185 120 75 mA maximum 10-Lead LFCSP (θJA = 76°C/W) 250 155 85 mA maximum +12 V Single Supply VDD = 10.8 V, VSS = 0 V 10-Lead MSOP (θJA = 142°C/W) 150 100 65 mA maximum 10-Lead LFCSP (θJA = 76°C/W) 205 130 80 mA maximum ±5 V Dual Supply VDD = +4.5 V, VSS = −4.5 V 10-Lead MSOP (θJA = 142°C/W) 145 100 65 mA maximum 10-Lead LFCSP (θJA = 76°C/W) 195 125 75 mA maximum 1 Guaranteed by design, not subject to production test. Rev. A | Page 6 of 16 Document Outline Features Applications General Description Functional Block Diagram Product Highlights Table of Contents Revision History Specifications ±15 V Dual Supply +12 V Single Supply ±5 V Dual Supply Continuous Current per Channel, S or D Absolute Maximum Ratings Thermal Resistance ESD Caution Pin Configurations and Function Descriptions Typical Performance Characteristics Test Circuits Terminology Outline Dimensions Ordering Guide
