Datasheet ADG1419 (Analog Devices) - 8
| Fabricante | Analog Devices |
| Descripción | 2.1 Ω On Resistance, ±15 V/+12 V/±5 V, iCMOS SPDT Switch |
| Páginas / Página | 16 / 8 — ADG1419. Data Sheet. PIN CONFIGURATIONS AND FUNCTION DESCRIPTIONS. D 1. 8 … |
| Revisión | A |
| Formato / tamaño de archivo | PDF / 442 Kb |
| Idioma del documento | Inglés |

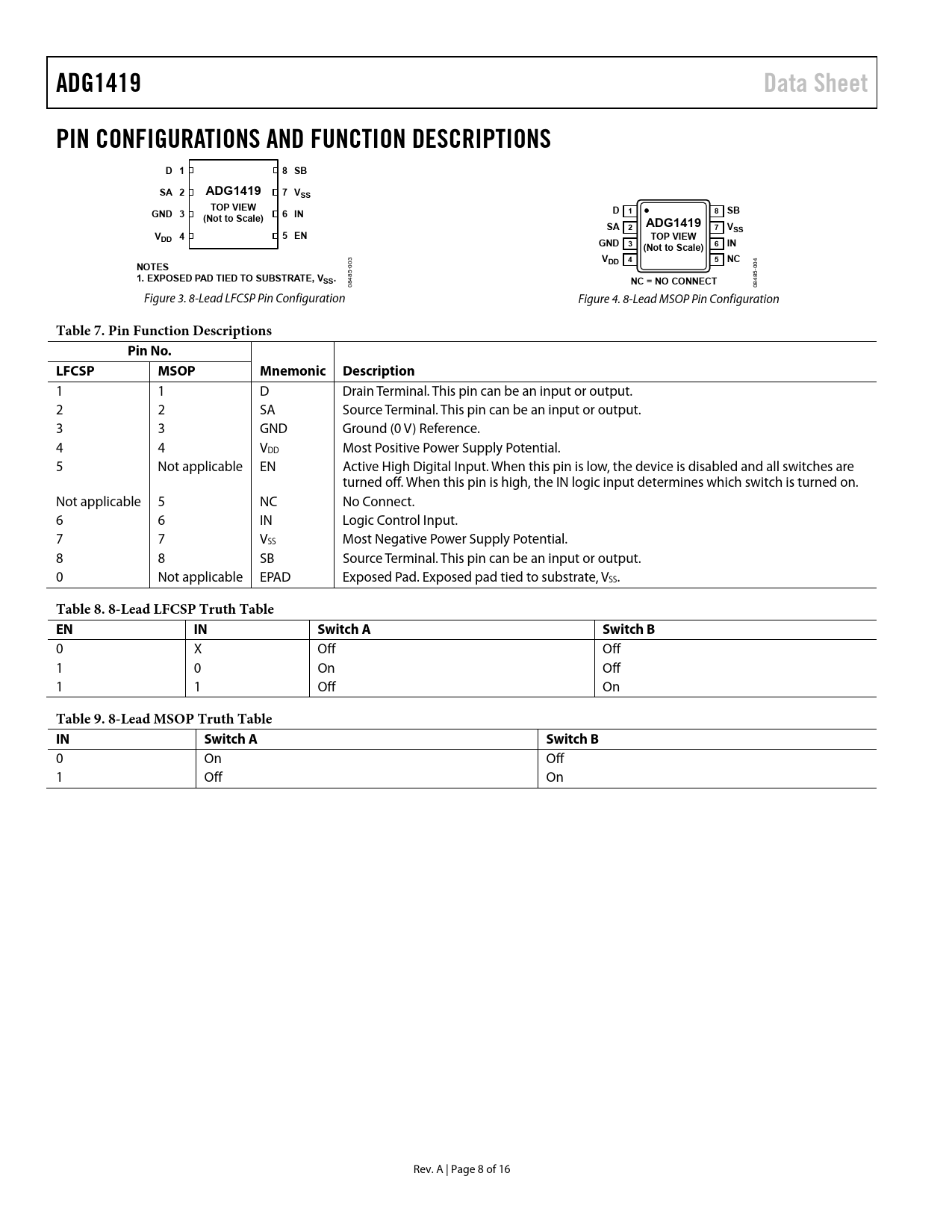

ADG1419. Data Sheet. PIN CONFIGURATIONS AND FUNCTION DESCRIPTIONS. D 1. 8 SB. SA 2. 7 VSS. TOP VIEW. GND 3. (Not to Scale). 6 IN. 5 EN. 5 NC
Línea de modelo para esta hoja de datos
Versión de texto del documento
ADG1419 Data Sheet PIN CONFIGURATIONS AND FUNCTION DESCRIPTIONS D 1 8 SB SA 2 ADG1419 7 VSS TOP VIEW GND 3 D 1 8 SB (Not to Scale) 6 IN SA ADG1419 2 7 VSS V 4 DD 5 EN TOP VIEW GND 3 6 IN (Not to Scale) V 5 NC NOTES
03
DD 4
04 0 0 5- 5-
1. EXPOSED PAD TIED TO SUBSTRATE, VSS.
48
NC = NO CONNECT
48 08 08 Figure 3. 8-Lead LFCSP Pin Configuration Figure 4. 8-Lead MSOP Pin Configuration
Table 7. Pin Function Descriptions Pin No. LFCSP MSOP Mnemonic Description
1 1 D Drain Terminal. This pin can be an input or output. 2 2 SA Source Terminal. This pin can be an input or output. 3 3 GND Ground (0 V) Reference. 4 4 VDD Most Positive Power Supply Potential. 5 Not applicable EN Active High Digital Input. When this pin is low, the device is disabled and all switches are turned off. When this pin is high, the IN logic input determines which switch is turned on. Not applicable 5 NC No Connect. 6 6 IN Logic Control Input. 7 7 VSS Most Negative Power Supply Potential. 8 8 SB Source Terminal. This pin can be an input or output. 0 Not applicable EPAD Exposed Pad. Exposed pad tied to substrate, VSS.
Table 8. 8-Lead LFCSP Truth Table EN IN Switch A Switch B
0 X Off Off 1 0 On Off 1 1 Off On
Table 9. 8-Lead MSOP Truth Table IN Switch A Switch B
0 On Off 1 Off On Rev. A | Page 8 of 16 Document Outline FEATURES APPLICATIONS FUNCTIONAL BLOCK DIAGRAMS GENERAL DESCRIPTION PRODUCT HIGHLIGHTS TABLE OF CONTENTS REVISION HISTORY SPECIFICATIONS ±15 V DUAL SUPPLY +12 V SINGLE SUPPLY ±5 V DUAL SUPPLY CONTINUOUS CURRENT PER CHANNEL, S OR D ABSOLUTE MAXIMUM RATINGS THERMAL RESISTANCE ESD CAUTION PIN CONFIGURATIONS AND FUNCTION DESCRIPTIONS TYPICAL PERFORMANCE CHARACTERISTICS TEST CIRCUITS TERMINOLOGY OUTLINE DIMENSIONS ORDERING GUIDE
