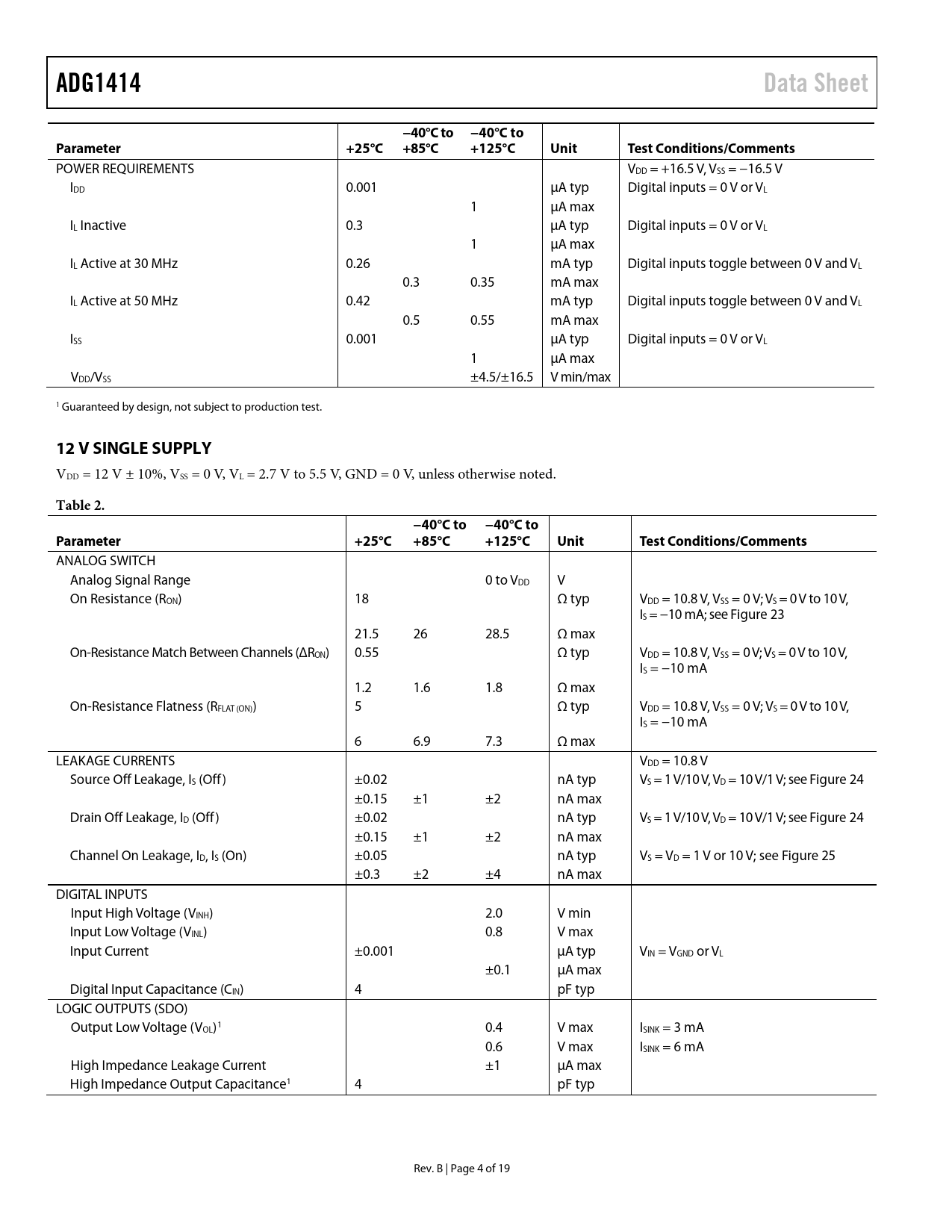

ADG1414 Data Sheet −40°C to −40°C to Parameter +25°C +85°C +125°C Unit Test Conditions/Comments
POWER REQUIREMENTS VDD = +16.5 V, VSS = −16.5 V IDD 0.001 µA typ Digital inputs = 0 V or VL 1 µA max IL Inactive 0.3 µA typ Digital inputs = 0 V or VL 1 µA max IL Active at 30 MHz 0.26 mA typ Digital inputs toggle between 0 V and VL 0.3 0.35 mA max IL Active at 50 MHz 0.42 mA typ Digital inputs toggle between 0 V and VL 0.5 0.55 mA max ISS 0.001 µA typ Digital inputs = 0 V or VL 1 µA max VDD/VSS ±4.5/±16.5 V min/max 1 Guaranteed by design, not subject to production test.
12 V SINGLE SUPPLY
VDD = 12 V ± 10%, VSS = 0 V, VL = 2.7 V to 5.5 V, GND = 0 V, unless otherwise noted.
Table 2. −40°C to −40°C to Parameter +25°C +85°C +125°C Unit Test Conditions/Comments
ANALOG SWITCH Analog Signal Range 0 to VDD V On Resistance (RON) 18 Ω typ VDD = 10.8 V, VSS = 0 V; VS = 0 V to 10 V, IS = −10 mA; see Figure 23 21.5 26 28.5 Ω max On-Resistance Match Between Channels (ΔRON) 0.55 Ω typ VDD = 10.8 V, VSS = 0 V; VS = 0 V to 10 V, IS = −10 mA 1.2 1.6 1.8 Ω max On-Resistance Flatness (RFLAT (ON)) 5 Ω typ VDD = 10.8 V, VSS = 0 V; VS = 0 V to 10 V, IS = −10 mA 6 6.9 7.3 Ω max LEAKAGE CURRENTS VDD = 10.8 V Source Off Leakage, IS (Off) ±0.02 nA typ VS = 1 V/10 V, VD = 10 V/1 V; see Figure 24 ±0.15 ±1 ±2 nA max Drain Off Leakage, ID (Off) ±0.02 nA typ VS = 1 V/10 V, VD = 10 V/1 V; see Figure 24 ±0.15 ±1 ±2 nA max Channel On Leakage, ID, IS (On) ±0.05 nA typ VS = VD = 1 V or 10 V; see Figure 25 ±0.3 ±2 ±4 nA max DIGITAL INPUTS Input High Voltage (VINH) 2.0 V min Input Low Voltage (VINL) 0.8 V max Input Current ±0.001 µA typ VIN = VGND or VL ±0.1 µA max Digital Input Capacitance (CIN) 4 pF typ LOGIC OUTPUTS (SDO) Output Low Voltage (VOL)1 0.4 V max ISINK = 3 mA 0.6 V max ISINK = 6 mA High Impedance Leakage Current ±1 µA max High Impedance Output Capacitance1 4 pF typ Rev. B | Page 4 of 19 Document Outline Features Applications Functional Block Diagram Product Highlights Revision History Specifications ±15 V Dual Supply 12 V Single Supply ±5 V Dual Supply Continuous Current per Channel Timing Characteristics Timing Diagrams Absolute Maximum Ratings Thermal Resistance ESD Caution Pin Configurations and Function Descriptions Typical Performance Characteristics Test Circuits Terminology Theory of Operation Serial Interface Input Shift Register Power-On Reset Daisy Chaining Outline Dimensions Ordering Guide
