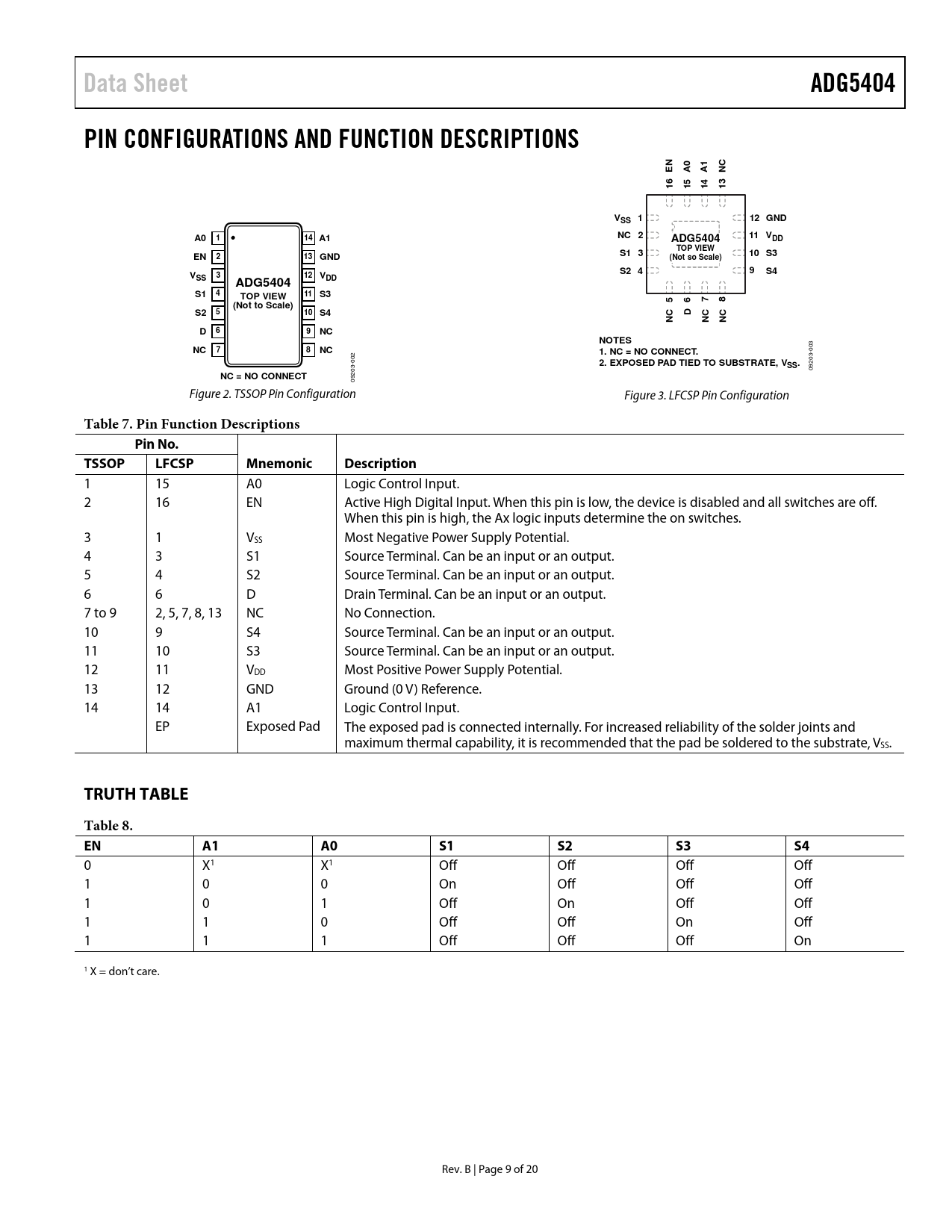

Data Sheet. ADG5404. PIN CONFIGURATIONS AND FUNCTION DESCRIPTIONS. VSS 1. 12 GND. 14 A1. NC 2. 11 V. TOP VIEW. 13 GND. (Not so Scale). S2 4
Línea de modelo para esta hoja de datos
Versión de texto del documento
Data Sheet ADG5404 PIN CONFIGURATIONS AND FUNCTION DESCRIPTIONS EN A0 A1 NC 16 15 14 13 VSS 1 12 GND A0 1 14 A1 NC 2 11 V ADG5404 DD TOP VIEW EN 3 10 2 S1 S3 13 GND (Not so Scale) S2 4 9 S4 V 3 SS 12 V ADG5404 DD S1 4 11 S3 TOP VIEW 5 6 7 8 (Not to Scale) S2 5 10 S4 D NC NC NC D 6 9 NC NOTES
03
NC 7 8 NC 1. NC = NO CONNECT.
0 02 0 03-
2. EXPOSED PAD TIED TO SUBSTRATE, V
3-
SS.
092
NC = NO CONNECT
20 09 Figure 2. TSSOP Pin Configuration Figure 3. LFCSP Pin Configuration
Table 7. Pin Function Descriptions Pin No. TSSOP LFCSP Mnemonic Description
1 15 A0 Logic Control Input. 2 16 EN Active High Digital Input. When this pin is low, the device is disabled and all switches are off. When this pin is high, the Ax logic inputs determine the on switches. 3 1 VSS Most Negative Power Supply Potential. 4 3 S1 Source Terminal. Can be an input or an output. 5 4 S2 Source Terminal. Can be an input or an output. 6 6 D Drain Terminal. Can be an input or an output. 7 to 9 2, 5, 7, 8, 13 NC No Connection. 10 9 S4 Source Terminal. Can be an input or an output. 11 10 S3 Source Terminal. Can be an input or an output. 12 11 VDD Most Positive Power Supply Potential. 13 12 GND Ground (0 V) Reference. 14 14 A1 Logic Control Input. EP Exposed Pad The exposed pad is connected internally. For increased reliability of the solder joints and maximum thermal capability, it is recommended that the pad be soldered to the substrate, VSS.
TRUTH TABLE Table 8. EN A1 A0 S1 S2 S3 S4
0 X1 X1 Off Off Off Off 1 0 0 On Off Off Off 1 0 1 Off On Off Off 1 1 0 Off Off On Off 1 1 1 Off Off Off On 1 X = don’t care. Rev. B | Page 9 of 20 Document Outline FEATURES APPLICATIONS FUNCTIONAL BLOCK DIAGRAM GENERAL DESCRIPTION PRODUCT HIGHLIGHTS REVISION HISTORY SPECIFICATIONS ±15 V DUAL SUPPLY ±20 V DUAL SUPPLY +12 V SINGLE SUPPLY +36 V SINGLE SUPPLY CONTINUOUS CURRENT PER CHANNEL, S OR D ABSOLUTE MAXIMUM RATINGS ESD CAUTION PIN CONFIGURATIONS AND FUNCTION DESCRIPTIONS TRUTH TABLE TYPICAL PERFORMANCE CHARACTERISTICS TEST CIRCUITS TERMINOLOGY TRENCH ISOLATION APPLICATIONS INFORMATION OUTLINE DIMENSIONS ORDERING GUIDE
