Enhanced Product. ADG5208-EP/ADG5209-EP. Parameter. 25°C. −40°C to +85°C −55°C to +125°C Unit. Test Conditions/Comments
Línea de modelo para esta hoja de datos
Versión de texto del documento
link to page 16 link to page 16 link to page 16 link to page 16 link to page 16 link to page 16

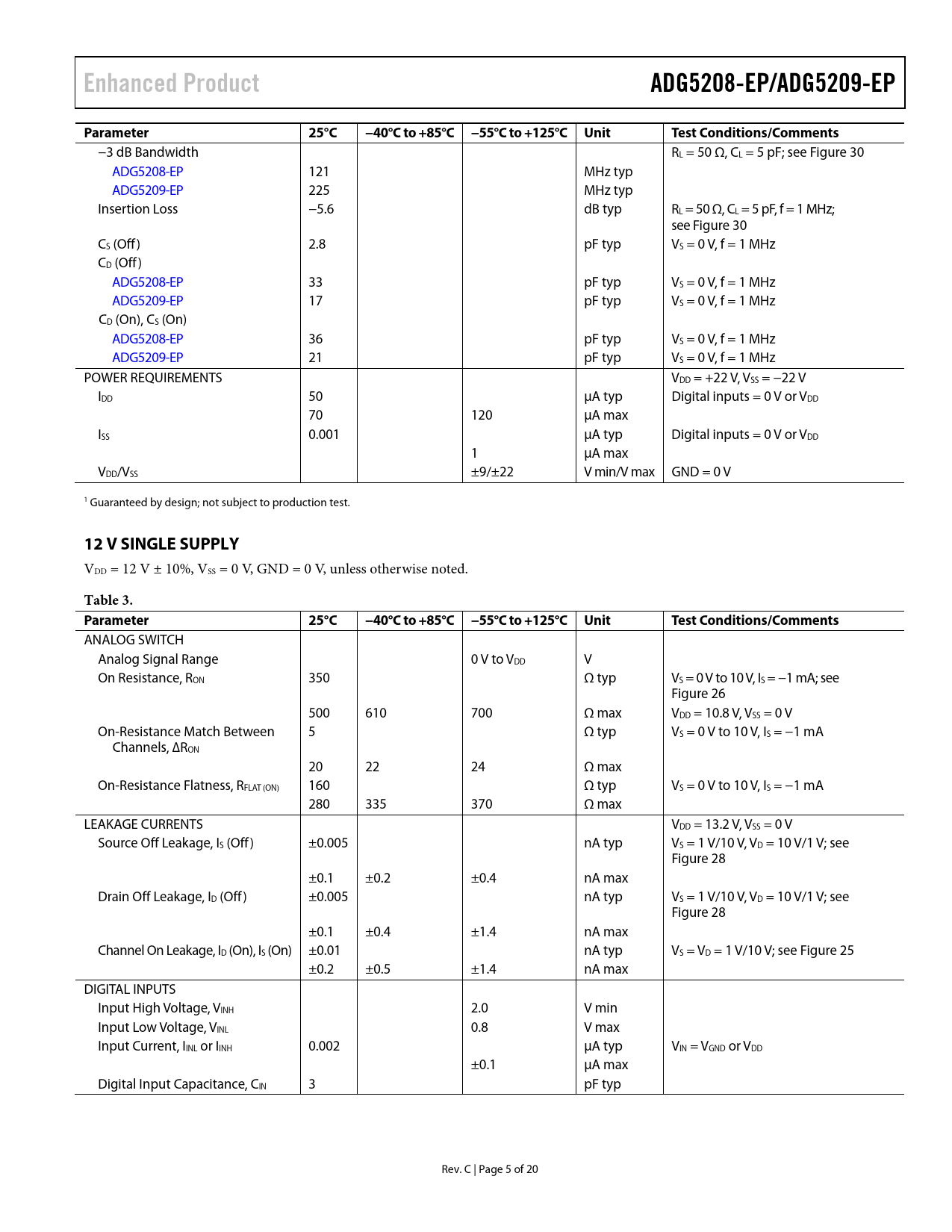

Enhanced Product ADG5208-EP/ADG5209-EP Parameter 25°C −40°C to +85°C −55°C to +125°C Unit Test Conditions/Comments
−3 dB Bandwidth RL = 50 Ω, CL = 5 pF; see Figure 30 ADG5208-EP 121 MHz typ ADG5209-EP 225 MHz typ Insertion Loss −5.6 dB typ RL = 50 Ω, CL = 5 pF, f = 1 MHz; see Figure 30 CS (Off) 2.8 pF typ VS = 0 V, f = 1 MHz CD (Off) ADG5208-EP 33 pF typ VS = 0 V, f = 1 MHz ADG5209-EP 17 pF typ VS = 0 V, f = 1 MHz CD (On), CS (On) ADG5208-EP 36 pF typ VS = 0 V, f = 1 MHz ADG5209-EP 21 pF typ VS = 0 V, f = 1 MHz POWER REQUIREMENTS VDD = +22 V, VSS = −22 V IDD 50 µA typ Digital inputs = 0 V or VDD 70 120 µA max ISS 0.001 µA typ Digital inputs = 0 V or VDD 1 µA max VDD/VSS ±9/±22 V min/V max GND = 0 V 1 Guaranteed by design; not subject to production test.
12 V SINGLE SUPPLY
VDD = 12 V ± 10%, VSS = 0 V, GND = 0 V, unless otherwise noted.
Table 3. Parameter 25°C −40°C to +85°C −55°C to +125°C Unit Test Conditions/Comments
ANALOG SWITCH Analog Signal Range 0 V to VDD V On Resistance, RON 350 Ω typ VS = 0 V to 10 V, IS = −1 mA; see Figure 26 500 610 700 Ω max VDD = 10.8 V, VSS = 0 V On-Resistance Match Between 5 Ω typ VS = 0 V to 10 V, IS = −1 mA Channels, ∆RON 20 22 24 Ω max On-Resistance Flatness, RFLAT (ON) 160 Ω typ VS = 0 V to 10 V, IS = −1 mA 280 335 370 Ω max LEAKAGE CURRENTS VDD = 13.2 V, VSS = 0 V Source Off Leakage, IS (Off) ±0.005 nA typ VS = 1 V/10 V, VD = 10 V/1 V; see Figure 28 ±0.1 ±0.2 ±0.4 nA max Drain Off Leakage, ID (Off) ±0.005 nA typ VS = 1 V/10 V, VD = 10 V/1 V; see Figure 28 ±0.1 ±0.4 ±1.4 nA max Channel On Leakage, ID (On), IS (On) ±0.01 nA typ VS = VD = 1 V/10 V; see Figure 25 ±0.2 ±0.5 ±1.4 nA max DIGITAL INPUTS Input High Voltage, VINH 2.0 V min Input Low Voltage, VINL 0.8 V max Input Current, IINL or IINH 0.002 µA typ VIN = VGND or VDD ±0.1 µA max Digital Input Capacitance, CIN 3 pF typ Rev. C | Page 5 of 20 Document Outline Features Applications General Description Functional Block Diagram Product Highlights Table of Contents Revision History Specifications ±15 V Dual Supply ±20 V Dual Supply 12 V Single Supply 36 V Single Supply Continuous Current per Channel, Sx, D, or Dx Absolute Maximum Ratings ESD Caution Pin Configurations and Function Descriptions Typical Performance Characteristics Test Circuits Outline Dimensions Ordering Guide
