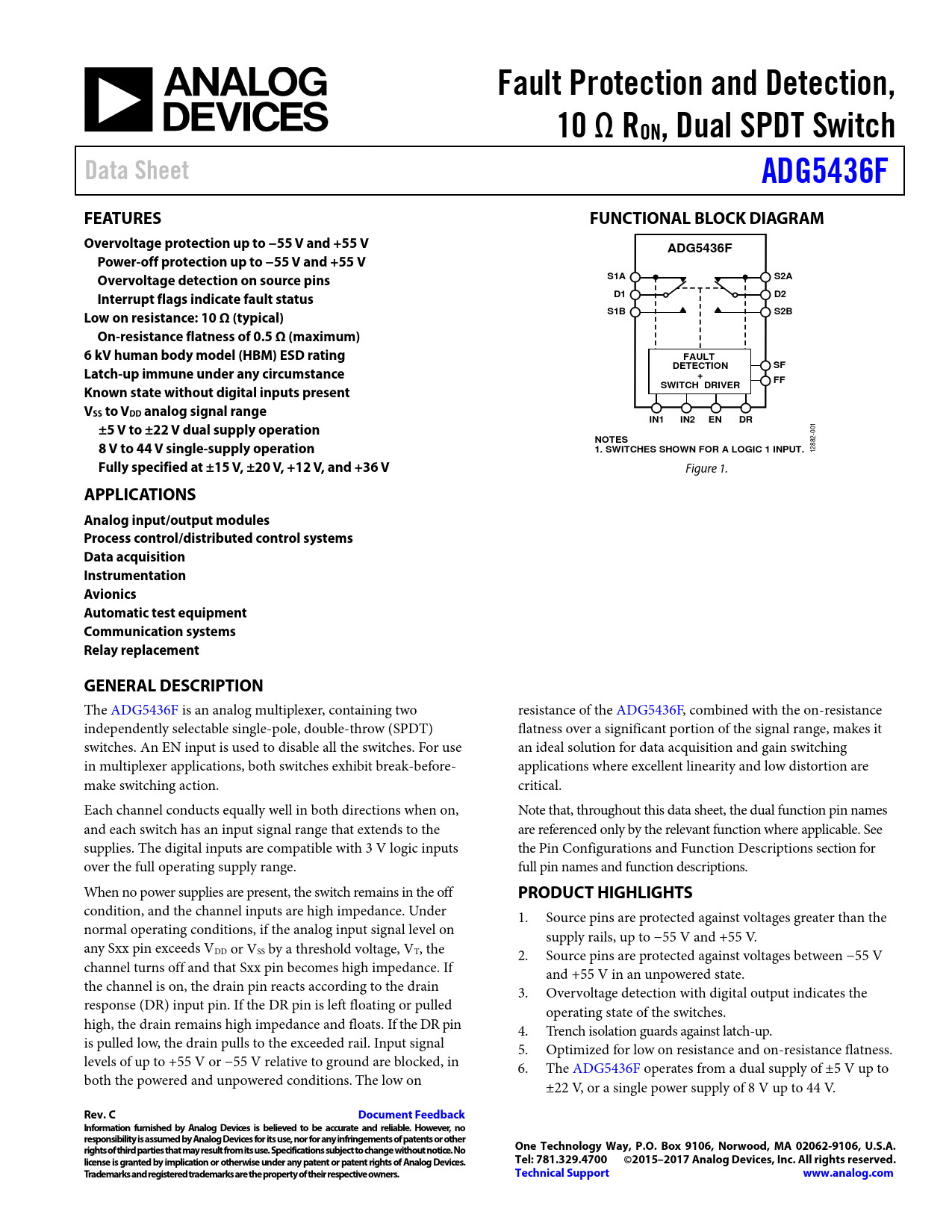

Fault Protection and Detection, 10 Ω RON, Dual SPDT Switch Data Sheet ADG5436F FEATURES FUNCTIONAL BLOCK DIAGRAM Overvoltage protection up to −55 V and +55 V ADG5436F Power-off protection up to −55 V and +55 V Overvoltage detection on source pins S1A S2A Interrupt flags indicate fault status D1 D2 Low on resistance: 10 Ω (typical) S1B S2B On-resistance flatness of 0.5 Ω (maximum) 6 kV human body model (HBM) ESD rating FAULT DETECTION SF Latch-up immune under any circumstance + FF Known state without digital inputs present SWITCH DRIVER VSS to VDD analog signal range IN1 IN2 EN DR ±5 V to ±22 V dual supply operation
001
NOTES 8 V to 44 V single-supply operation 1. SWITCHES SHOWN FOR A LOGIC 1 INPUT.
12882-
Fully specified at ±15 V, ±20 V, +12 V, and +36 V
Figure 1.
APPLICATIONS Analog input/output modules Process control/distributed control systems Data acquisition Instrumentation Avionics Automatic test equipment Communication systems Relay replacement GENERAL DESCRIPTION
The ADG5436F is an analog multiplexer, containing two resistance of the ADG5436F, combined with the on-resistance independently selectable single-pole, double-throw (SPDT) flatness over a significant portion of the signal range, makes it switches. An EN input is used to disable all the switches. For use an ideal solution for data acquisition and gain switching in multiplexer applications, both switches exhibit break-before- applications where excellent linearity and low distortion are make switching action. critical. Each channel conducts equal y wel in both directions when on, Note that, throughout this data sheet, the dual function pin names and each switch has an input signal range that extends to the are referenced only by the relevant function where applicable. See supplies. The digital inputs are compatible with 3 V logic inputs the Pin Configurations and Function Descriptions section for over the full operating supply range. full pin names and function descriptions. When no power supplies are present, the switch remains in the off
PRODUCT HIGHLIGHTS
condition, and the channel inputs are high impedance. Under 1. Source pins are protected against voltages greater than the normal operating conditions, if the analog input signal level on supply rails, up to −55 V and +55 V. any Sxx pin exceeds VDD or VSS by a threshold voltage, VT, the 2. Source pins are protected against voltages between −55 V channel turns off and that Sxx pin becomes high impedance. If and +55 V in an unpowered state. the channel is on, the drain pin reacts according to the drain 3. Overvoltage detection with digital output indicates the response (DR) input pin. If the DR pin is left floating or pulled operating state of the switches. high, the drain remains high impedance and floats. If the DR pin 4. Trench isolation guards against latch-up. is pulled low, the drain pulls to the exceeded rail. Input signal 5. Optimized for low on resistance and on-resistance flatness. levels of up to +55 V or −55 V relative to ground are blocked, in 6. The ADG5436F operates from a dual supply of ±5 V up to both the powered and unpowered conditions. The low on ±22 V, or a single power supply of 8 V up to 44 V.
