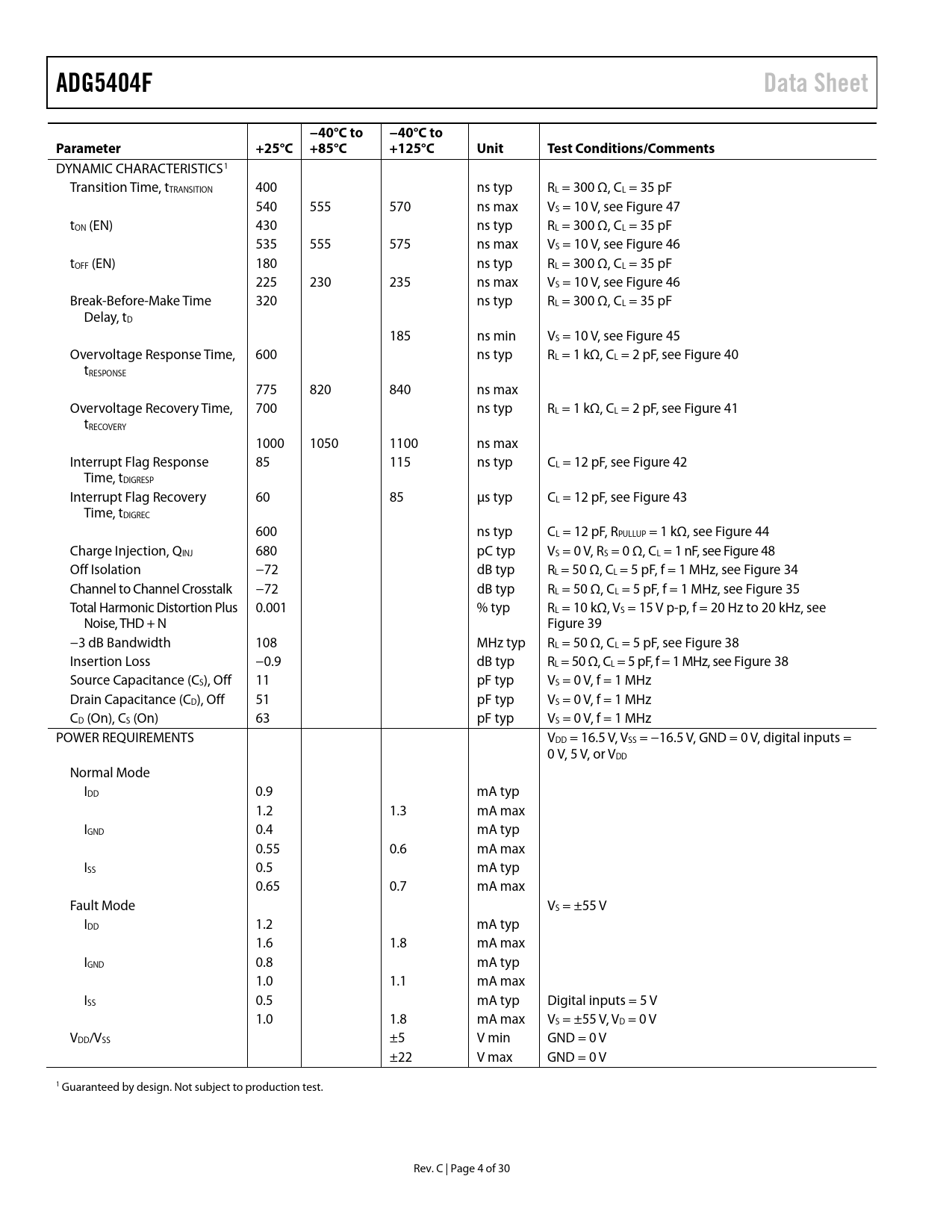

link to page 23 link to page 23 link to page 23 link to page 23 link to page 21 link to page 21 link to page 22 link to page 22 link to page 22 link to page 23 link to page 20 link to page 20 link to page 21 link to page 20 link to page 20 ADG5404FData Sheet−40°C to−40°C toParameter+25°C +85°C+125°CUnitTest Conditions/Comments DYNAMIC CHARACTERISTICS1 Transition Time, tTRANSITION 400 ns typ RL = 300 Ω, CL = 35 pF 540 555 570 ns max VS = 10 V, see Figure 47 tON (EN) 430 ns typ RL = 300 Ω, CL = 35 pF 535 555 575 ns max VS = 10 V, see Figure 46 tOFF (EN) 180 ns typ RL = 300 Ω, CL = 35 pF 225 230 235 ns max VS = 10 V, see Figure 46 Break-Before-Make Time 320 ns typ RL = 300 Ω, CL = 35 pF Delay, tD 185 ns min VS = 10 V, see Figure 45 Overvoltage Response Time, 600 ns typ RL = 1 kΩ, CL = 2 pF, see Figure 40 tRESPONSE 775 820 840 ns max Overvoltage Recovery Time, 700 ns typ RL = 1 kΩ, CL = 2 pF, see Figure 41 tRECOVERY 1000 1050 1100 ns max Interrupt Flag Response 85 115 ns typ CL = 12 pF, see Figure 42 Time, tDIGRESP Interrupt Flag Recovery 60 85 µs typ CL = 12 pF, see Figure 43 Time, tDIGREC 600 ns typ CL = 12 pF, RPULLUP = 1 kΩ, see Figure 44 Charge Injection, QINJ 680 pC typ VS = 0 V, RS = 0 Ω, CL = 1 nF, see Figure 48 Off Isolation −72 dB typ RL = 50 Ω, CL = 5 pF, f = 1 MHz, see Figure 34 Channel to Channel Crosstalk −72 dB typ RL = 50 Ω, CL = 5 pF, f = 1 MHz, see Figure 35 Total Harmonic Distortion Plus 0.001 % typ RL = 10 kΩ, VS = 15 V p-p, f = 20 Hz to 20 kHz, see Noise, THD + N Figure 39 −3 dB Bandwidth 108 MHz typ RL = 50 Ω, CL = 5 pF, see Figure 38 Insertion Loss −0.9 dB typ RL = 50 Ω, CL = 5 pF, f = 1 MHz, see Figure 38 Source Capacitance (CS), Off 11 pF typ VS = 0 V, f = 1 MHz Drain Capacitance (CD), Off 51 pF typ VS = 0 V, f = 1 MHz CD (On), CS (On) 63 pF typ VS = 0 V, f = 1 MHz POWER REQUIREMENTS VDD = 16.5 V, VSS = −16.5 V, GND = 0 V, digital inputs = 0 V, 5 V, or VDD Normal Mode IDD 0.9 mA typ 1.2 1.3 mA max IGND 0.4 mA typ 0.55 0.6 mA max ISS 0.5 mA typ 0.65 0.7 mA max Fault Mode VS = ±55 V IDD 1.2 mA typ 1.6 1.8 mA max IGND 0.8 mA typ 1.0 1.1 mA max ISS 0.5 mA typ Digital inputs = 5 V 1.0 1.8 mA max VS = ±55 V, VD = 0 V VDD/VSS ±5 V min GND = 0 V ±22 V max GND = 0 V 1 Guaranteed by design. Not subject to production test. Rev. C | Page 4 of 30 Document Outline FEATURES APPLICATIONS FUNCTIONAL BLOCK DIAGRAM GENERAL DESCRIPTION PRODUCT HIGHLIGHTS TABLE OF CONTENTS REVISION HISTORY SPECIFICATIONS ±15 V DUAL SUPPLY ±20 V DUAL SUPPLY 12 V SINGLE SUPPLY 36 V SINGLE SUPPLY CONTINUOUS CURRENT ABSOLUTE MAXIMUM RATINGS ESD CAUTION PIN CONFIGURATIONS AND FUNCTION DESCRIPTIONS TYPICAL PERFORMANCE CHARACTERISTICS TEST CIRCUITS TERMINOLOGY THEORY OF OPERATION SWITCH ARCHITECTURE ESD Performance Trench Isolation FAULT PROTECTION Power-On Protection Power-Off Protection Digital Input Protection Overvoltage Interrupt Flag APPLICATIONS INFORMATION POWER SUPPLY RAILS POWER SUPPLY SEQUENCING PROTECTION SIGNAL RANGE LOW IMPEDANCE CHANNEL PROTECTION POWER SUPPLY RECOMMENDATIONS HIGH VOLTAGE SURGE SUPPRESSION INTELLIGENT FAULT DETECTION LARGE VOLTAGE, HIGH FREQUENCY SIGNALS OUTLINE DIMENSIONS ORDERING GUIDE
