Data Sheet

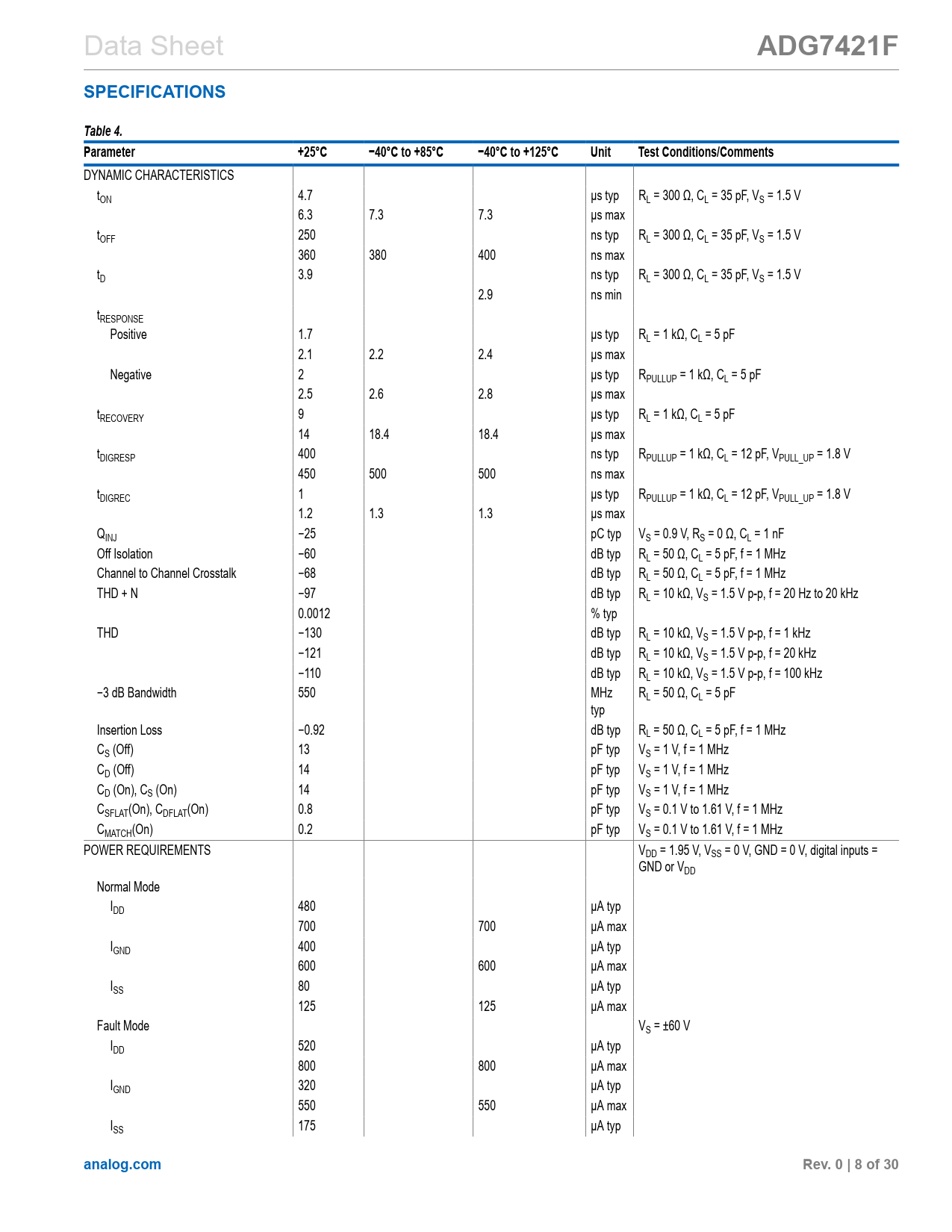

ADG7421F SPECIFICATIONS Table 4. Parameter +25°C −40°C to +85°C −40°C to +125°C Unit Test Conditions/Comments
DYNAMIC CHARACTERISTICS tON 4.7 µs typ RL = 300 Ω, CL = 35 pF, VS = 1.5 V 6.3 7.3 7.3 µs max tOFF 250 ns typ RL = 300 Ω, CL = 35 pF, VS = 1.5 V 360 380 400 ns max tD 3.9 ns typ RL = 300 Ω, CL = 35 pF, VS = 1.5 V 2.9 ns min tRESPONSE Positive 1.7 µs typ RL = 1 kΩ, CL = 5 pF 2.1 2.2 2.4 µs max Negative 2 µs typ RPULLUP = 1 kΩ, CL = 5 pF 2.5 2.6 2.8 µs max tRECOVERY 9 µs typ RL = 1 kΩ, CL = 5 pF 14 18.4 18.4 µs max tDIGRESP 400 ns typ RPULLUP = 1 kΩ, CL = 12 pF, VPULL_UP = 1.8 V 450 500 500 ns max tDIGREC 1 µs typ RPULLUP = 1 kΩ, CL = 12 pF, VPULL_UP = 1.8 V 1.2 1.3 1.3 µs max QINJ −25 pC typ VS = 0.9 V, RS = 0 Ω, CL = 1 nF Off Isolation −60 dB typ RL = 50 Ω, CL = 5 pF, f = 1 MHz Channel to Channel Crosstalk −68 dB typ RL = 50 Ω, CL = 5 pF, f = 1 MHz THD + N −97 dB typ RL = 10 kΩ, VS = 1.5 V p-p, f = 20 Hz to 20 kHz 0.0012 % typ THD −130 dB typ RL = 10 kΩ, VS = 1.5 V p-p, f = 1 kHz −121 dB typ RL = 10 kΩ, VS = 1.5 V p-p, f = 20 kHz −110 dB typ RL = 10 kΩ, VS = 1.5 V p-p, f = 100 kHz −3 dB Bandwidth 550 MHz RL = 50 Ω, CL = 5 pF typ Insertion Loss −0.92 dB typ RL = 50 Ω, CL = 5 pF, f = 1 MHz CS (Off) 13 pF typ VS = 1 V, f = 1 MHz CD (Off) 14 pF typ VS = 1 V, f = 1 MHz CD (On), CS (On) 14 pF typ VS = 1 V, f = 1 MHz CSFLAT(On), CDFLAT(On) 0.8 pF typ VS = 0.1 V to 1.61 V, f = 1 MHz CMATCH(On) 0.2 pF typ VS = 0.1 V to 1.61 V, f = 1 MHz POWER REQUIREMENTS VDD = 1.95 V, VSS = 0 V, GND = 0 V, digital inputs = GND or VDD Normal Mode IDD 480 µA typ 700 700 µA max IGND 400 µA typ 600 600 µA max ISS 80 µA typ 125 125 µA max Fault Mode VS = ±60 V IDD 520 µA typ 800 800 µA max IGND 320 µA typ 550 550 µA max ISS 175 µA typ
analog.com Rev. 0 | 8 of 30
