Data Sheet

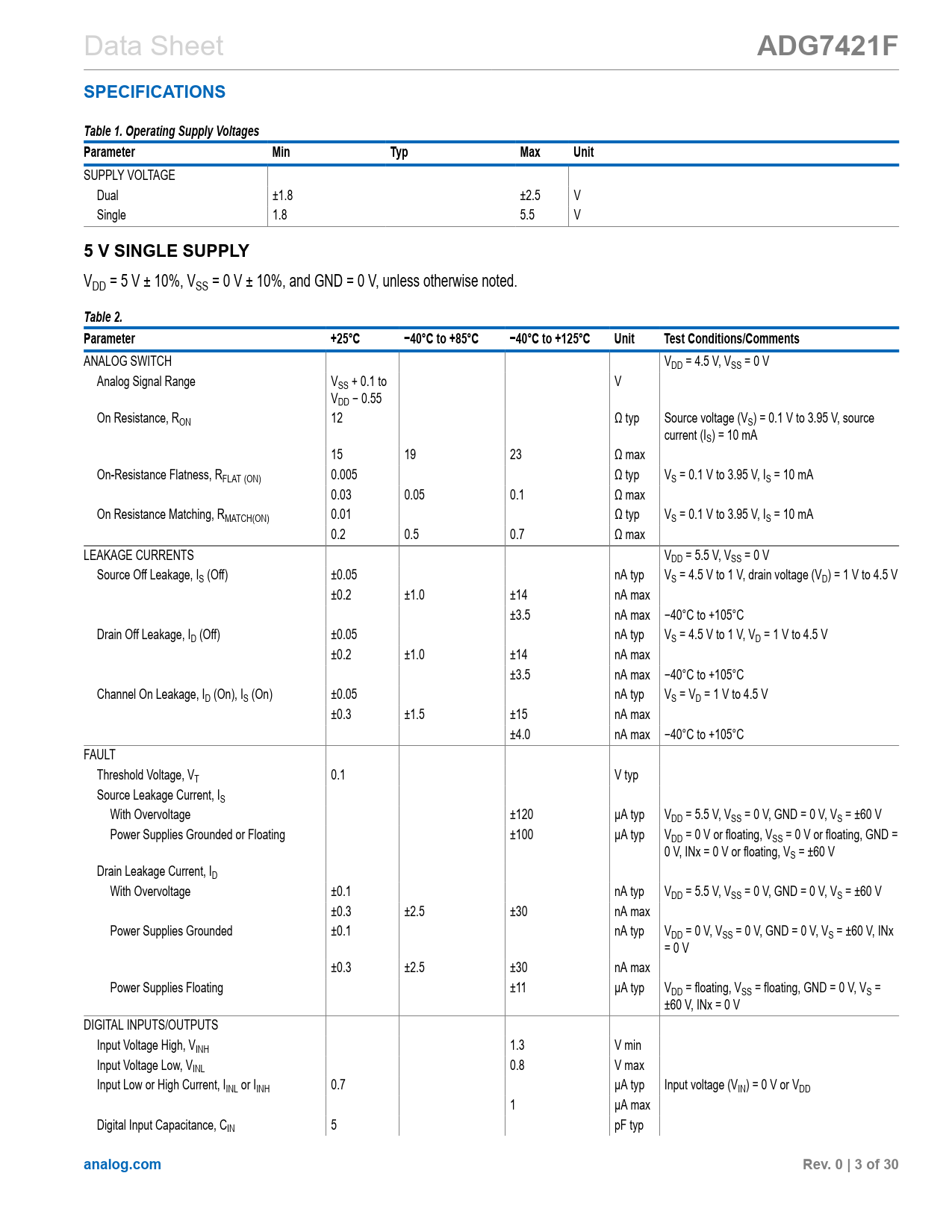

ADG7421F SPECIFICATIONS Table 1. Operating Supply Voltages Parameter Min Typ Max Unit
SUPPLY VOLTAGE Dual ±1.8 ±2.5 V Single 1.8 5.5 V
5 V SINGLE SUPPLY
VDD = 5 V ± 10%, VSS = 0 V ± 10%, and GND = 0 V, unless otherwise noted.
Table 2. Parameter +25°C −40°C to +85°C −40°C to +125°C Unit Test Conditions/Comments
ANALOG SWITCH VDD = 4.5 V, VSS = 0 V Analog Signal Range VSS + 0.1 to V VDD − 0.55 On Resistance, RON 12 Ω typ Source voltage (VS) = 0.1 V to 3.95 V, source current (IS) = 10 mA 15 19 23 Ω max On-Resistance Flatness, RFLAT (ON) 0.005 Ω typ VS = 0.1 V to 3.95 V, IS = 10 mA 0.03 0.05 0.1 Ω max On Resistance Matching, RMATCH(ON) 0.01 Ω typ VS = 0.1 V to 3.95 V, IS = 10 mA 0.2 0.5 0.7 Ω max LEAKAGE CURRENTS VDD = 5.5 V, VSS = 0 V Source Off Leakage, IS (Off) ±0.05 nA typ VS = 4.5 V to 1 V, drain voltage (VD) = 1 V to 4.5 V ±0.2 ±1.0 ±14 nA max ±3.5 nA max −40°C to +105°C Drain Off Leakage, ID (Off) ±0.05 nA typ VS = 4.5 V to 1 V, VD = 1 V to 4.5 V ±0.2 ±1.0 ±14 nA max ±3.5 nA max −40°C to +105°C Channel On Leakage, ID (On), IS (On) ±0.05 nA typ VS = VD = 1 V to 4.5 V ±0.3 ±1.5 ±15 nA max ±4.0 nA max −40°C to +105°C FAULT Threshold Voltage, VT 0.1 V typ Source Leakage Current, IS With Overvoltage ±120 µA typ VDD = 5.5 V, VSS = 0 V, GND = 0 V, VS = ±60 V Power Supplies Grounded or Floating ±100 µA typ VDD = 0 V or floating, VSS = 0 V or floating, GND = 0 V, INx = 0 V or floating, VS = ±60 V Drain Leakage Current, ID With Overvoltage ±0.1 nA typ VDD = 5.5 V, VSS = 0 V, GND = 0 V, VS = ±60 V ±0.3 ±2.5 ±30 nA max Power Supplies Grounded ±0.1 nA typ VDD = 0 V, VSS = 0 V, GND = 0 V, VS = ±60 V, INx = 0 V ±0.3 ±2.5 ±30 nA max Power Supplies Floating ±11 µA typ VDD = floating, VSS = floating, GND = 0 V, VS = ±60 V, INx = 0 V DIGITAL INPUTS/OUTPUTS Input Voltage High, VINH 1.3 V min Input Voltage Low, VINL 0.8 V max Input Low or High Current, IINL or IINH 0.7 µA typ Input voltage (VIN) = 0 V or VDD 1 µA max Digital Input Capacitance, CIN 5 pF typ
analog.com Rev. 0 | 3 of 30
