Datasheet ADG1519 (Analog Devices) - 10
| Fabricante | Analog Devices |
| Descripción | 3.8 Ω On-Resistance, SPDT Switch |
| Páginas / Página | 15 / 10 — ADG1519. TEST CIRCUITS. Figure 20. On Leakage. Figure 18. On Resistance … |
| Formato / tamaño de archivo | PDF / 673 Kb |
| Idioma del documento | Inglés |
ADG1519. TEST CIRCUITS. Figure 20. On Leakage. Figure 18. On Resistance (IDS Is the Drain to Source Current.)
Línea de modelo para esta hoja de datos
Versión de texto del documento
Data Sheet

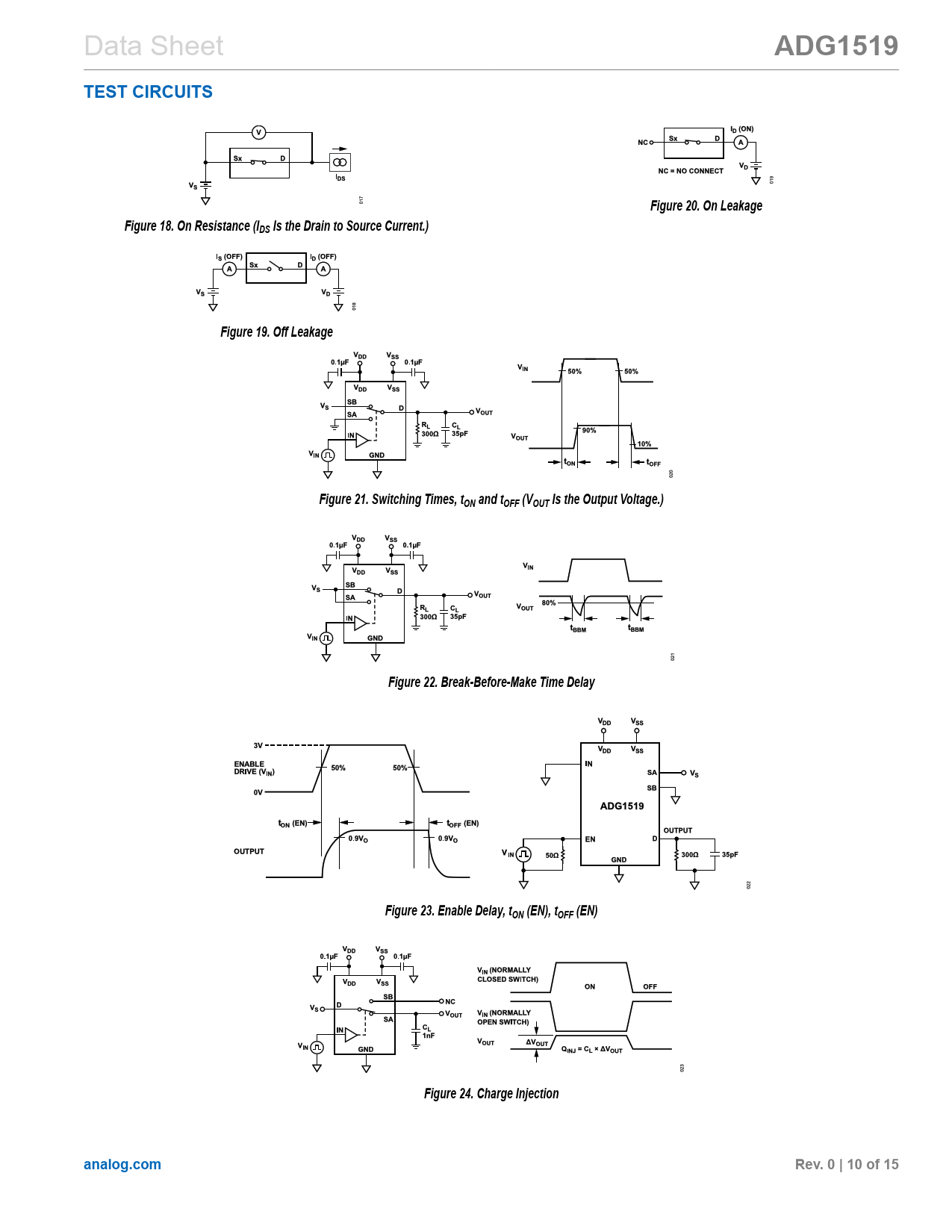

ADG1519 TEST CIRCUITS Figure 20. On Leakage Figure 18. On Resistance (IDS Is the Drain to Source Current.) Figure 19. Off Leakage Figure 21. Switching Times, tON and tOFF (VOUT Is the Output Voltage.) Figure 22. Break-Before-Make Time Delay Figure 23. Enable Delay, tON (EN), tOFF (EN) Figure 24. Charge Injection analog.com Rev. 0 | 10 of 15
