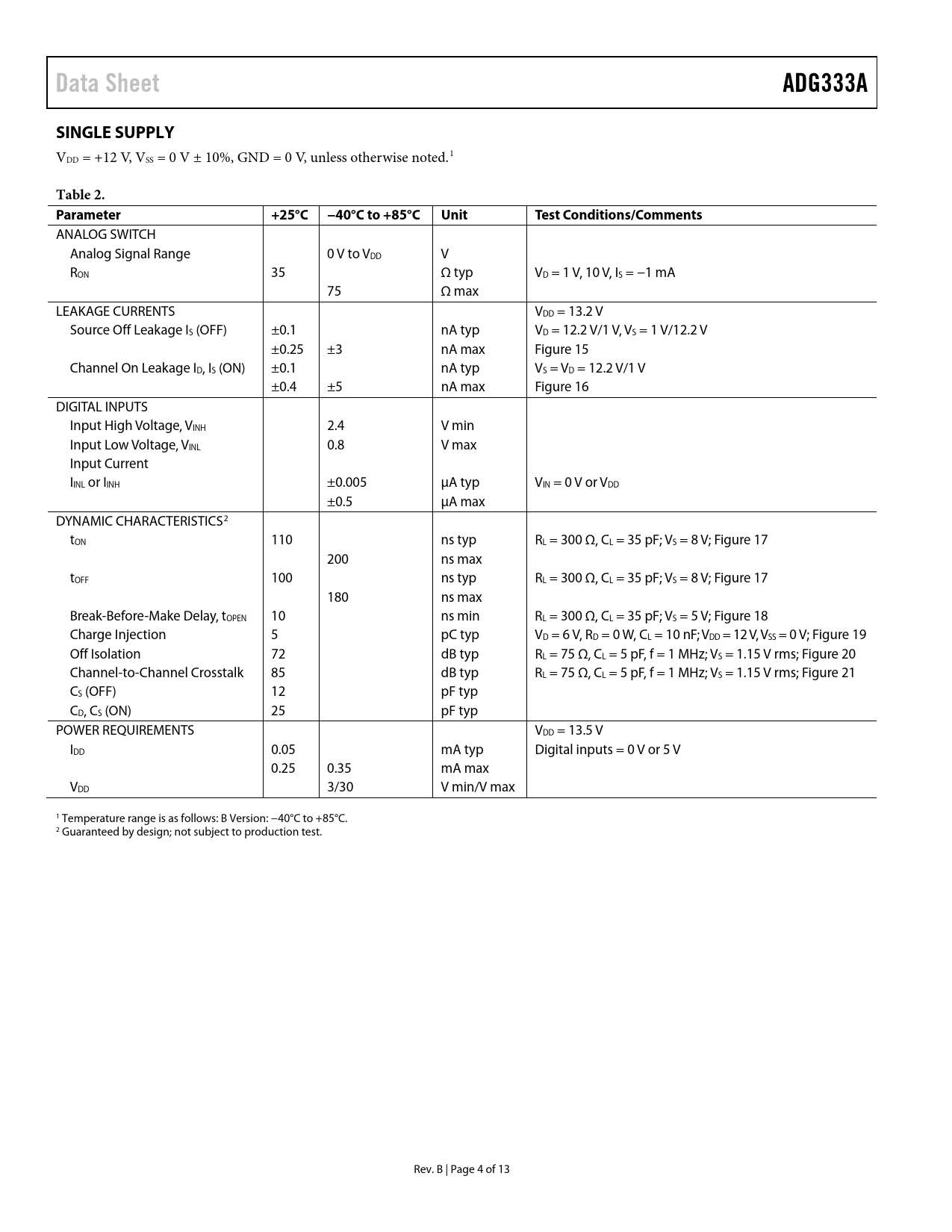

Data Sheet ADG333A SINGLE SUPPLY
VDD = +12 V, VSS = 0 V ± 10%, GND = 0 V, unless otherwise noted.1
Table 2. Parameter +25°C −40°C to +85°C Unit Test Conditions/Comments
ANALOG SWITCH Analog Signal Range 0 V to VDD V RON 35 Ω typ VD = 1 V, 10 V, IS = −1 mA 75 Ω max LEAKAGE CURRENTS VDD = 13.2 V Source Off Leakage IS (OFF) ±0.1 nA typ VD = 12.2 V/1 V, VS = 1 V/12.2 V ±0.25 ±3 nA max Figure 15 Channel On Leakage ID, IS (ON) ±0.1 nA typ VS = VD = 12.2 V/1 V ±0.4 ±5 nA max Figure 16 DIGITAL INPUTS Input High Voltage, VINH 2.4 V min Input Low Voltage, VINL 0.8 V max Input Current IINL or IINH ±0.005 µA typ VIN = 0 V or VDD ±0.5 µA max DYNAMIC CHARACTERISTICS2 tON 110 ns typ RL = 300 Ω, CL = 35 pF; VS = 8 V; Figure 17 200 ns max tOFF 100 ns typ RL = 300 Ω, CL = 35 pF; VS = 8 V; Figure 17 180 ns max Break-Before-Make Delay, tOPEN 10 ns min RL = 300 Ω, CL = 35 pF; VS = 5 V; Figure 18 Charge Injection 5 pC typ VD = 6 V, RD = 0 W, CL = 10 nF; VDD = 12 V, VSS = 0 V; Figure 19 Off Isolation 72 dB typ RL = 75 Ω, CL = 5 pF, f = 1 MHz; VS = 1.15 V rms; Figure 20 Channel-to-Channel Crosstalk 85 dB typ RL = 75 Ω, CL = 5 pF, f = 1 MHz; VS = 1.15 V rms; Figure 21 CS (OFF) 12 pF typ CD, CS (ON) 25 pF typ POWER REQUIREMENTS VDD = 13.5 V IDD 0.05 mA typ Digital inputs = 0 V or 5 V 0.25 0.35 mA max VDD 3/30 V min/V max 1 Temperature range is as follows: B Version: −40°C to +85°C. 2 Guaranteed by design; not subject to production test. Rev. B | Page 4 of 13 Document Outline FEATURES APPLICATIONS FUNCTIONAL BLOCK DIAGRAM GENERAL DESCRIPTION PRODUCT HIGHLIGHTS TABLE OF CONTENTS REVISION HISTORY SPECIFICATIONS DUAL SUPPLY SINGLE SUPPLY ABSOLUTE MAXIMUM RATINGS ESD CAUTION TERMINOLOGY PIN CONFIGURATIONS AND FUNCTION DESCRIPTIONS TYPICAL PERFORMANCE CHARACTERISTICS TEST CIRCUITS APPLICATIONS INFORMATION ADG333A SUPPLY VOLTAGES POWER SUPPLY SEQUENCING OUTLINE DIMENSIONS ORDERING GUIDE
