CDM22011-600LRFP. N-CHANNEL. LR POWER MOSFET. 11 AMP, 600 VOLT. ELECTRICAL CHARACTERISTICS - Continued:. SYMBOL TEST. CONDITIONS. TYP
Línea de modelo para esta hoja de datos
Versión de texto del documento

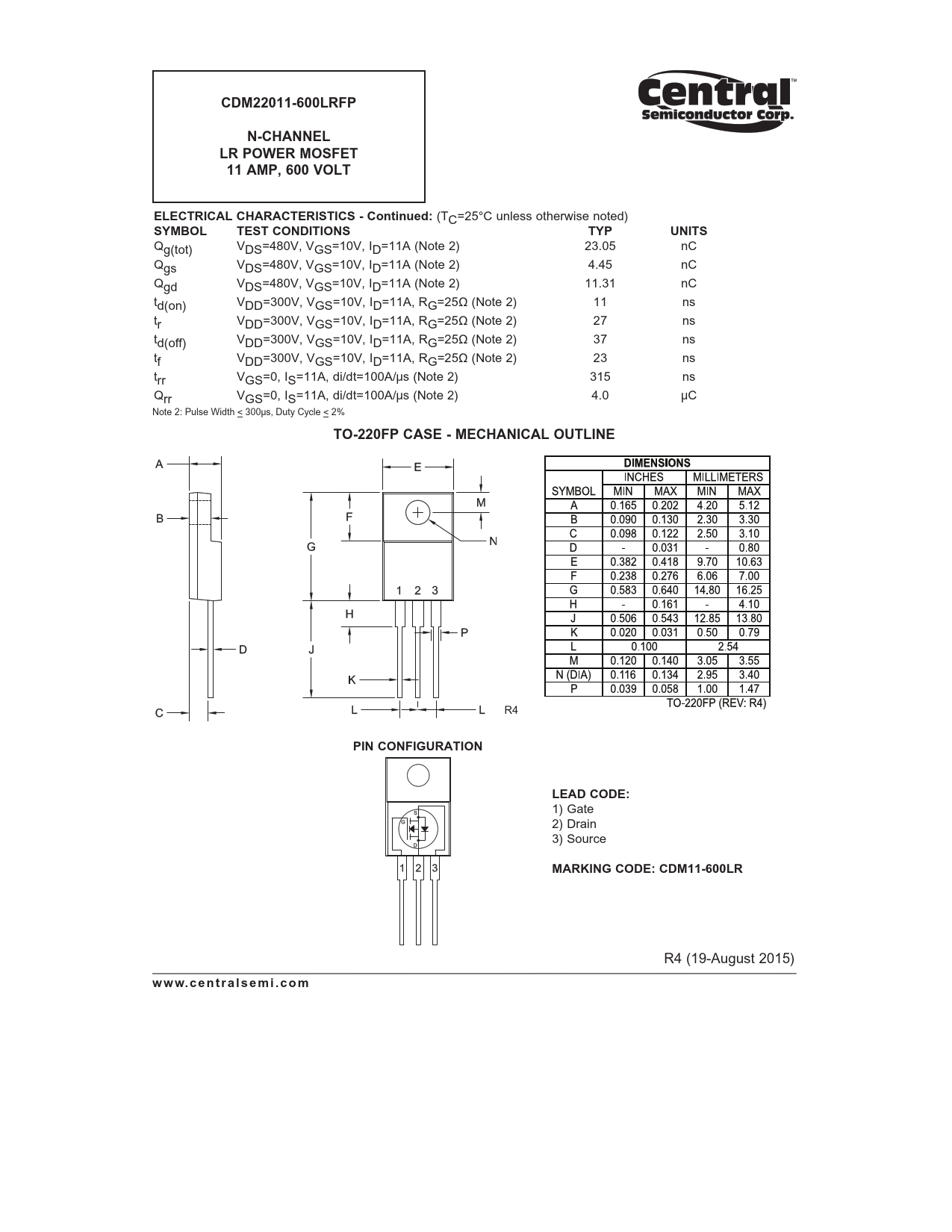

CDM22011-600LRFP N-CHANNEL LR POWER MOSFET 11 AMP, 600 VOLT ELECTRICAL CHARACTERISTICS - Continued:
(TC=25°C unless otherwise noted)
SYMBOL TEST CONDITIONS TYP UNITS
Qg(tot) VDS=480V, VGS=10V, ID=11A (Note 2) 23.05 nC Qgs VDS=480V, VGS=10V, ID=11A (Note 2) 4.45 nC Qgd VDS=480V, VGS=10V, ID=11A (Note 2) 11.31 nC td(on) VDD=300V, VGS=10V, ID=11A, RG=25Ω (Note 2) 11 ns tr VDD=300V, VGS=10V, ID=11A, RG=25Ω (Note 2) 27 ns td(off) VDD=300V, VGS=10V, ID=11A, RG=25Ω (Note 2) 37 ns tf VDD=300V, VGS=10V, ID=11A, RG=25Ω (Note 2) 23 ns trr VGS=0, IS=11A, di/dt=100A/μs (Note 2) 315 ns Qrr VGS=0, IS=11A, di/dt=100A/μs (Note 2) 4.0 μC Note 2: Pulse Width < 300μs, Duty Cycle < 2%
TO-220FP CASE - MECHANICAL OUTLINE
R4
PIN CONFIGURATION LEAD CODE:
1) Gate 2) Drain 3) Source
MARKING CODE: CDM11-600LR
R4 (19-August 2015)
