Datasheet BUZ71 (STMicroelectronics) - 3
| Fabricante | STMicroelectronics |
| Descripción | N - CHANNEL 50V - 0.085Ω - 17A TO-220 STripFET POWER MOSFET |
| Páginas / Página | 8 / 3 — BUZ71. ELECTRICAL CHARACTERISTICS. Symbo l. Parameter. Test Con ditions. … |
| Formato / tamaño de archivo | PDF / 89 Kb |
| Idioma del documento | Inglés |
BUZ71. ELECTRICAL CHARACTERISTICS. Symbo l. Parameter. Test Con ditions. Min. Typ. Max. Unit
Línea de modelo para esta hoja de datos
Versión de texto del documento
BUZ71 ELECTRICAL CHARACTERISTICS
(continued) SOURCE DRAIN DIODE
Symbo l Parameter Test Con ditions Min. Typ. Max. Unit

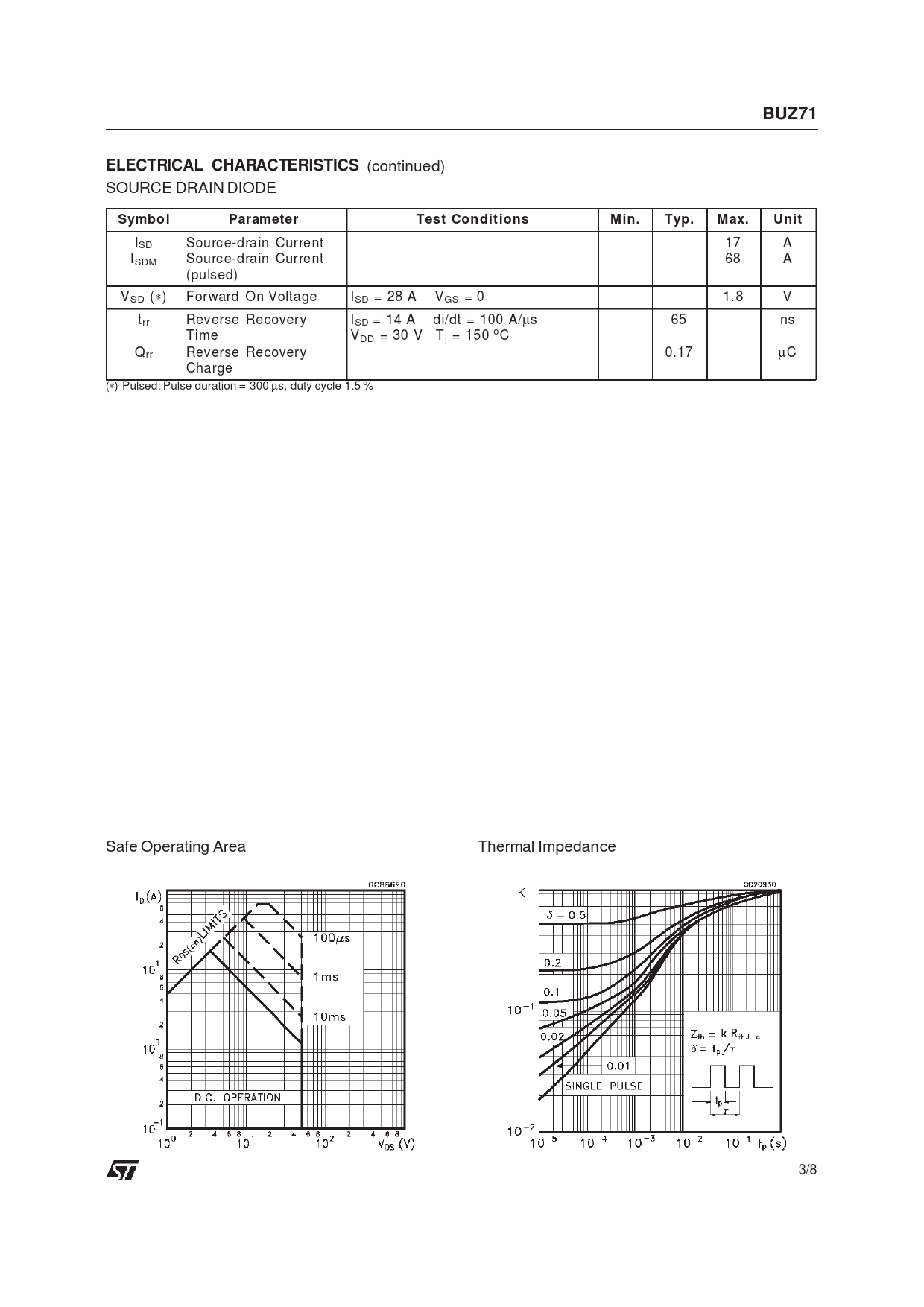

ISD Source-drain Current 17 A ISDM Source-drain Current 68 A (pulsed) VSD (∗) Forward On Voltage ISD = 28 A VGS = 0 1. 8 V trr Reverse Recovery ISD = 14 A di/dt = 100 A/µs 65 ns Time VDD = 30 V Tj = 150 oC Qrr Reverse Recovery 0.17 µC Charge (∗) Pulsed: Pulse duration = 300 µs, duty cycle 1.5 % Safe Operating Area Thermal Impedance 3/8
(continued) SOURCE DRAIN DIODE
Symbo l Parameter Test Con ditions Min. Typ. Max. Unit
ISD Source-drain Current 17 A ISDM Source-drain Current 68 A (pulsed) VSD (∗) Forward On Voltage ISD = 28 A VGS = 0 1. 8 V trr Reverse Recovery ISD = 14 A di/dt = 100 A/µs 65 ns Time VDD = 30 V Tj = 150 oC Qrr Reverse Recovery 0.17 µC Charge (∗) Pulsed: Pulse duration = 300 µs, duty cycle 1.5 % Safe Operating Area Thermal Impedance 3/8
