Datasheet SBG3030CT, SBG3040CT, SBG3045CT (Diodes) - 4
| Fabricante | Diodes |
| Descripción | 30A SURFACE MOUNT SCHOTTKY BARRIER RECTIFIER |
| Páginas / Página | 5 / 4 — NOT RECOMMENDED FOR NEW DESIGN -. NO ALTERNATE PART. SBG3030CT - … |
| Formato / tamaño de archivo | PDF / 195 Kb |
| Idioma del documento | Inglés |
NOT RECOMMENDED FOR NEW DESIGN -. NO ALTERNATE PART. SBG3030CT - SBG3045CT. Package Outline Dimensions. TO263. Dim. Min. Max
Línea de modelo para esta hoja de datos
Versión de texto del documento

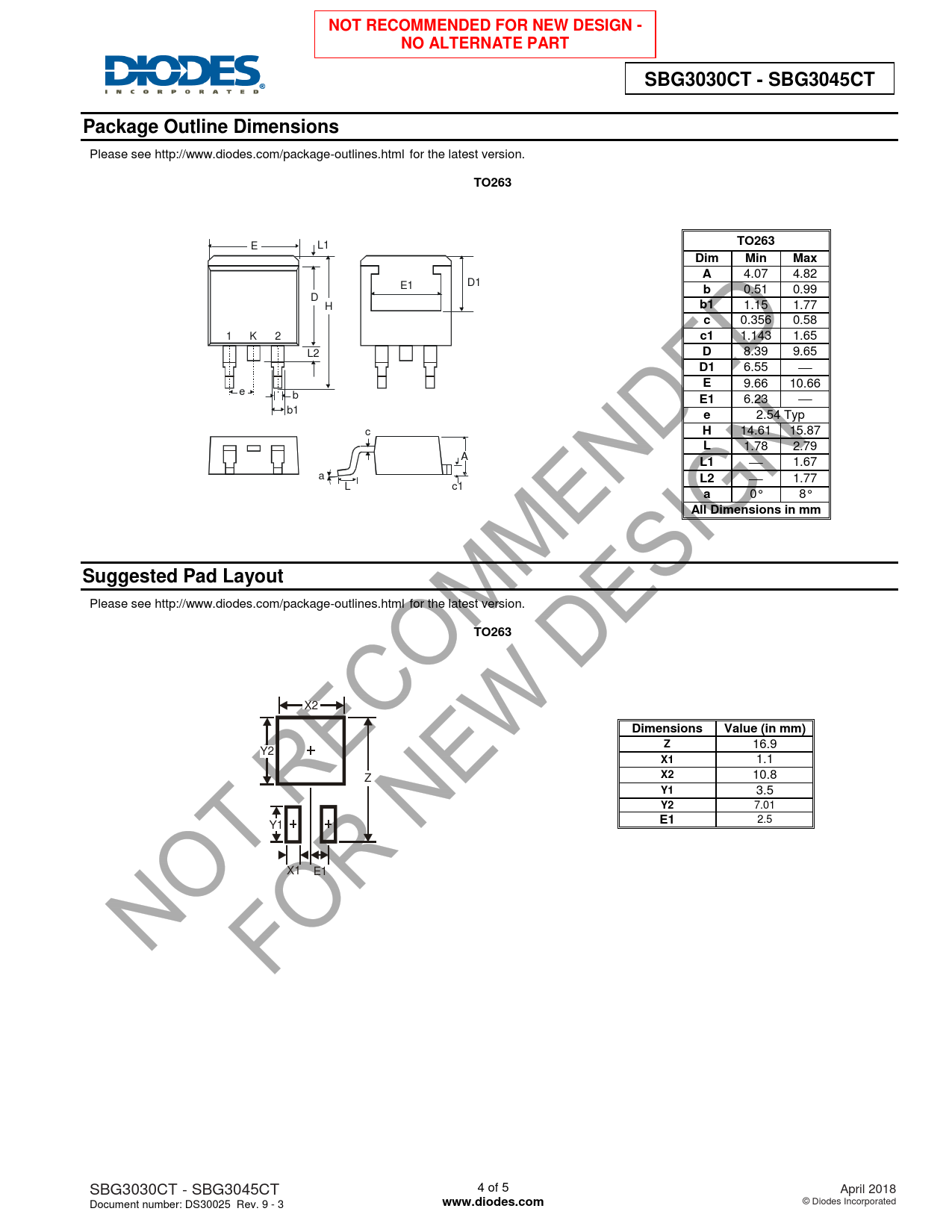

NOT RECOMMENDED FOR NEW DESIGN - NO ALTERNATE PART SBG3030CT - SBG3045CT Package Outline Dimensions
Please see http://www.diodes.com/package-outlines.html for the latest version.
TO263 TO263
E L1
Dim Min Max A
4.07 4.82 E1 D1
b
0.51 0.99 D H
b1
1.15 1.77
c
0.356 0.58 1 K 2
c1
1.143 1.65 L2
D
8.39 9.65
D1
6.55
E
9.66 10.66 e b
E1
6.23 b1
e
2.54 Typ c
H
14.61 15.87
L
1.78 2.79 A
L1
1.67 a
L2
1.77 L c1
a
0° 8°
All Dimensions in mm Suggested Pad Layout
Please see http://www.diodes.com/package-outlines.html for the latest version.
TO263
X2
Dimensions Value (in mm) Z
16.9 Y2
X1
1.1
X2
10.8 Z
Y1
3.5
Y2
7.01
E1
2.5 Y1 X1 E1 SBG3030CT - SBG3045CT 4 of 5 April 2018 Document number: DS30025 Rev. 9 - 3
www.diodes.com
© Diodes Incorporated
