Datasheet TCK127BG (Toshiba) - 4
| Fabricante | Toshiba |
| Descripción | 0.08 nA Ultra small IQ 1.0 A Load Switch IC in Ultra Small Package |
| Páginas / Página | 13 / 4 — TCK127BG. AC Characteristics (Ta = 25°C). VIN = 1.2 V. VIN = 3.3 V. AC … |
| Formato / tamaño de archivo | PDF / 1.0 Mb |
| Idioma del documento | Inglés |

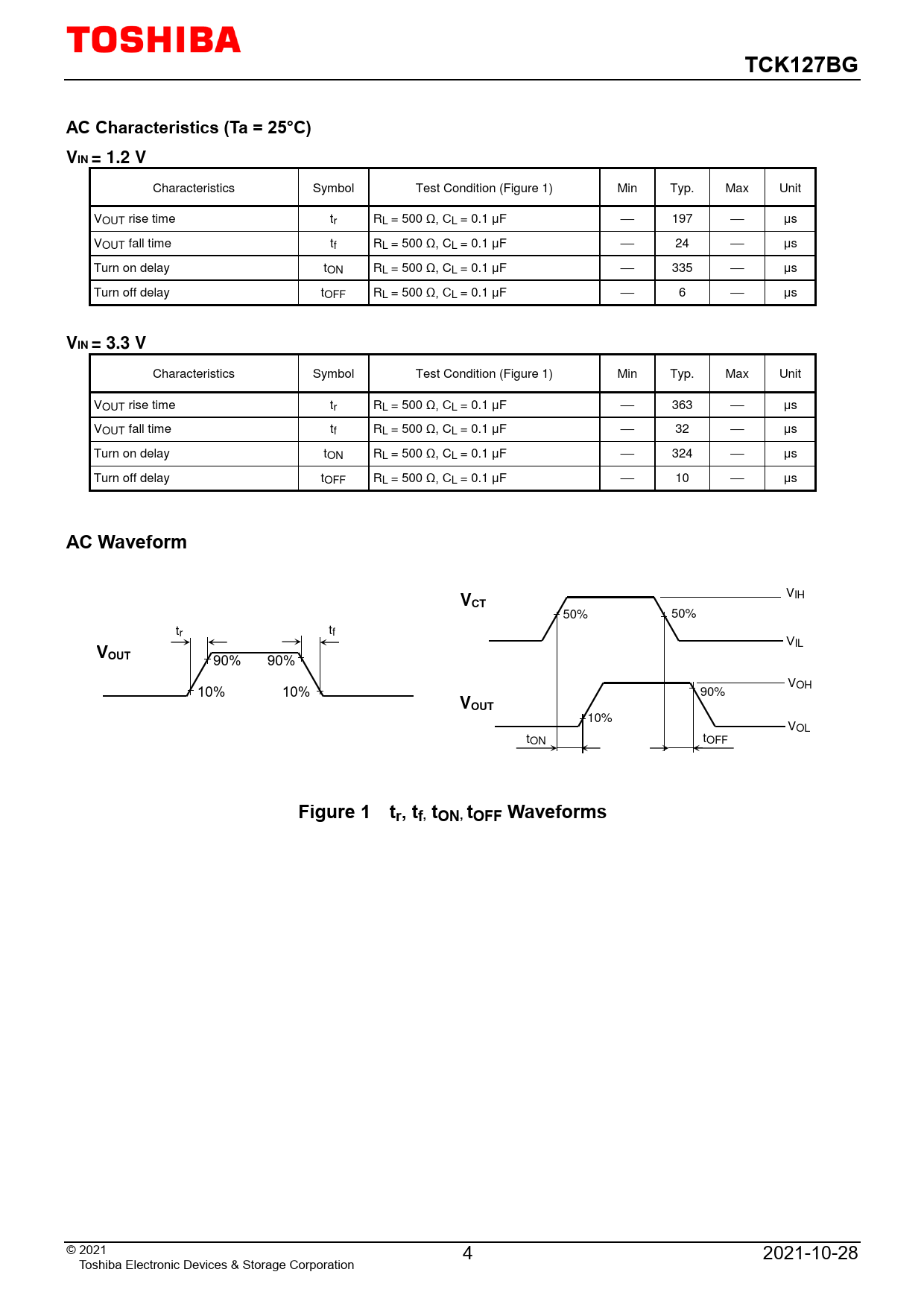

TCK127BG. AC Characteristics (Ta = 25°C). VIN = 1.2 V. VIN = 3.3 V. AC Waveform. VCT. OUT. Figure 1 tr, tf, tON, tOFF Waveforms
Línea de modelo para esta hoja de datos
Versión de texto del documento
TCK127BG AC Characteristics (Ta = 25°C) VIN = 1.2 V
Characteristics Symbol Test Condition (Figure 1) Min Typ. Max Unit VOUT rise time tr RL = 500 Ω, CL = 0.1 μF 197 μs VOUT fall time tf RL = 500 Ω, CL = 0.1 μF 24 μs Turn on delay tON RL = 500 Ω, CL = 0.1 μF 335 μs Turn off delay tOFF RL = 500 Ω, CL = 0.1 μF 6 μs
VIN = 3.3 V
Characteristics Symbol Test Condition (Figure 1) Min Typ. Max Unit VOUT rise time tr RL = 500 Ω, CL = 0.1 μF 363 μs VOUT fall time tf RL = 500 Ω, CL = 0.1 μF 32 μs Turn on delay tON RL = 500 Ω, CL = 0.1 μF 324 μs Turn off delay tOFF RL = 500 Ω, CL = 0.1 μF 10 μs
AC Waveform
VIH
VCT
50% 50% tr tf VIL
V OUT
90% 90% VOH 10% 10% 90%
V OUT
10% V OL tON tOFF
Figure 1 tr, tf, tON, tOFF Waveforms
