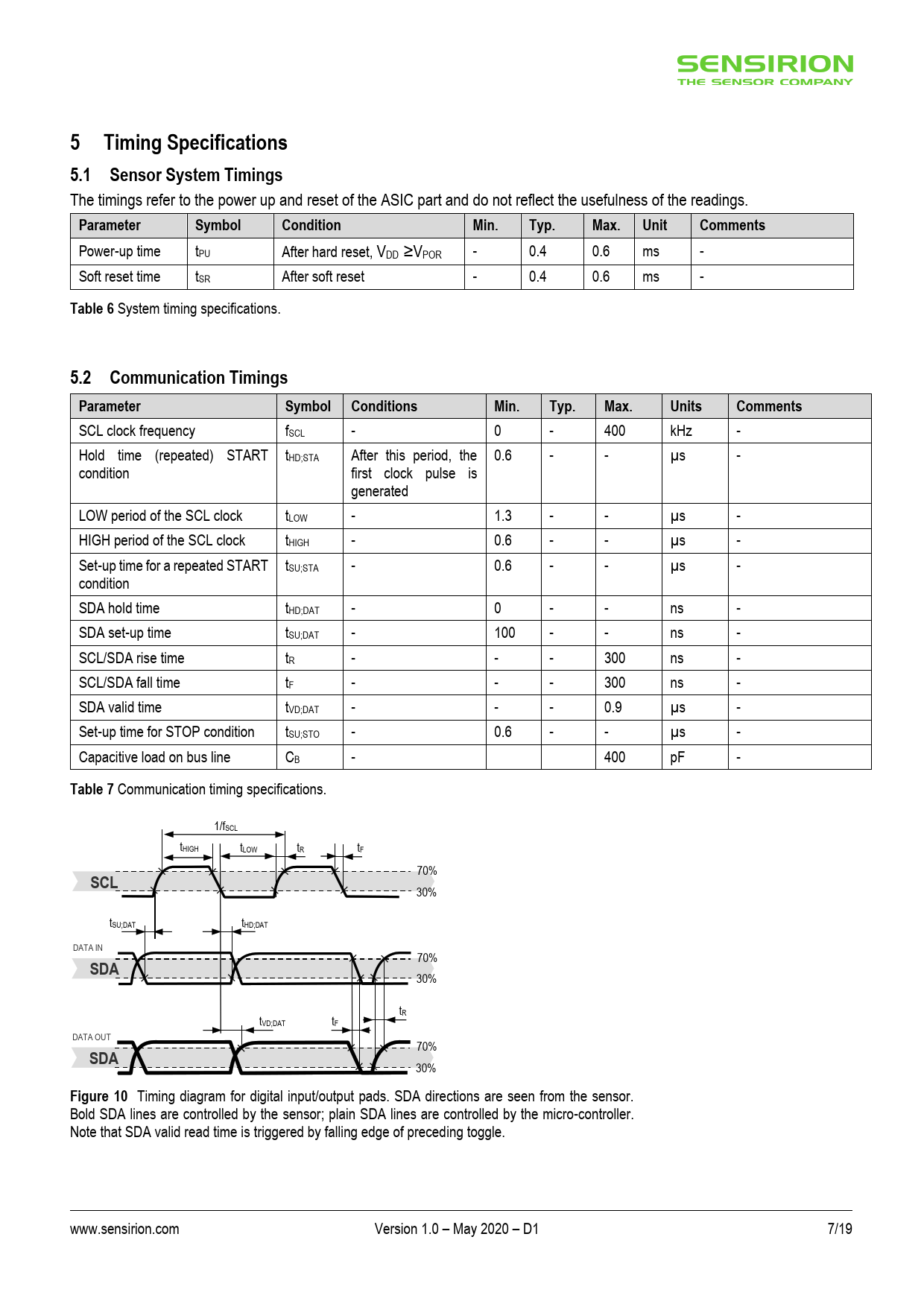

5 Timing Specifications 5.1 Sensor System Timings
The timings refer to the power up and reset of the ASIC part and do not reflect the usefulness of the readings.
Parameter Symbol Condition Min. Typ. Max. Unit Comments
Power-up time tPU After hard reset, VDD ≥VPOR - 0.4 0.6 ms - Soft reset time tSR After soft reset - 0.4 0.6 ms -
Table 6
System timing specifications.
5.2 Communication Timings Parameter Symbol Conditions Min. Typ. Max. Units Comments
SCL clock frequency fSCL - 0 - 400 kHz - Hold time (repeated) START tHD;STA After this period, the 0.6 - - µs - condition first clock pulse is generated LOW period of the SCL clock tLOW - 1.3 - - µs - HIGH period of the SCL clock tHIGH - 0.6 - - µs - Set-up time for a repeated START tSU;STA - 0.6 - - µs - condition SDA hold time tHD;DAT - 0 - - ns - SDA set-up time tSU;DAT - 100 - - ns - SCL/SDA rise time tR - - - 300 ns - SCL/SDA fall time tF - - - 300 ns - SDA valid time tVD;DAT - - - 0.9 µs - Set-up time for STOP condition tSU;STO - 0.6 - - µs - Capacitive load on bus line CB - 400 pF -
Table 7
Communication timing specifications. 1/fSCL tHIGH tLOW tR tF 70%
SCL
30% tSU;DAT tHD;DAT DATA IN 70%
SDA
30% tR tVD;DAT tF DATA OUT 70%
SDA
30%
Figure 10
