ADR1399. PIN CONFIGURATION AND FUNCTION DESCRIPTIONS

ADR1399 PIN CONFIGURATION AND FUNCTION DESCRIPTIONS

Línea de modelo para esta hoja de datos

Versión de texto del documento

Data Sheet

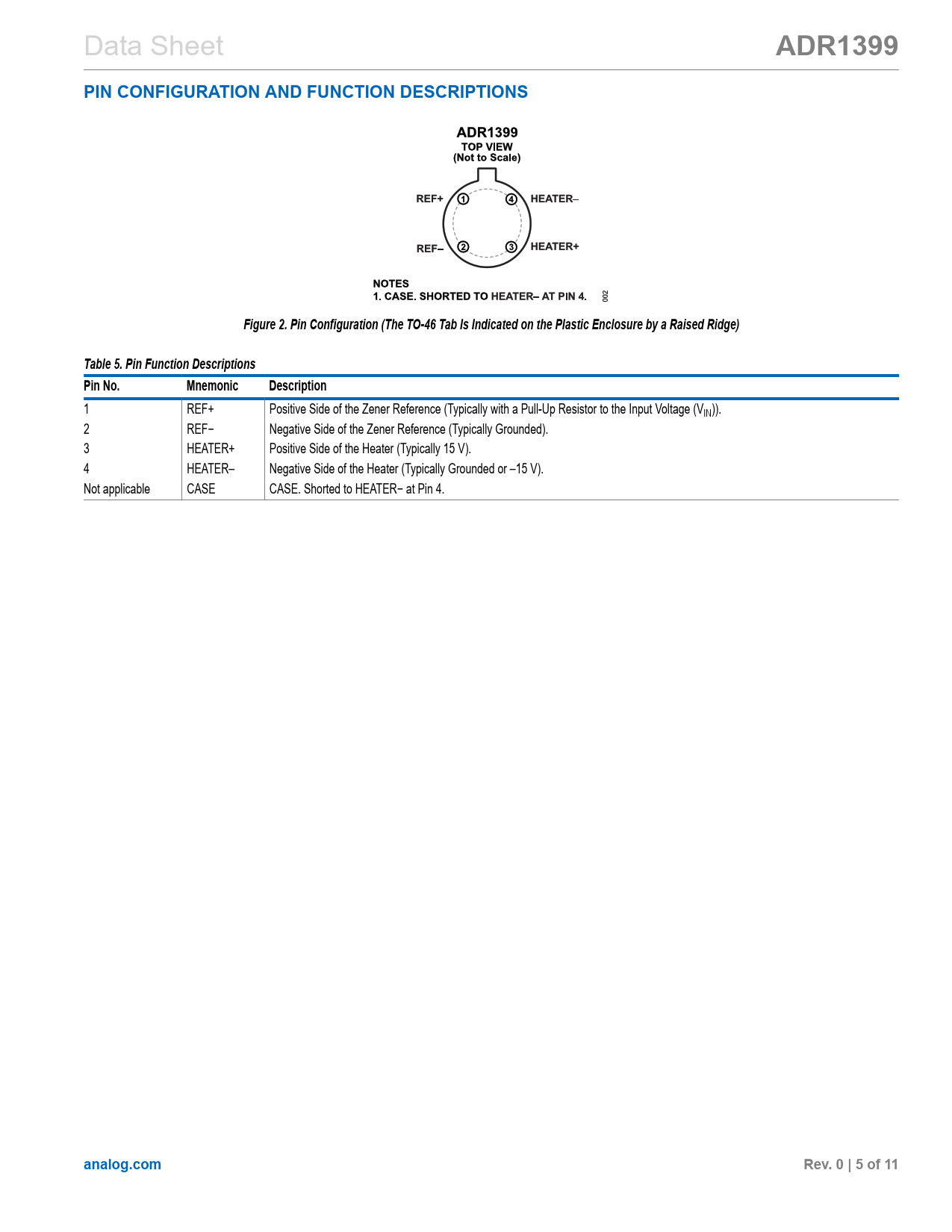

ADR1399 PIN CONFIGURATION AND FUNCTION DESCRIPTIONS Figure 2. Pin Configuration (The TO-46 Tab Is Indicated on the Plastic Enclosure by a Raised Ridge) Table 5. Pin Function Descriptions Pin No. Mnemonic Description
1 REF+ Positive Side of the Zener Reference (Typically with a Pull-Up Resistor to the Input Voltage (VIN)). 2 REF− Negative Side of the Zener Reference (Typically Grounded). 3 HEATER+ Positive Side of the Heater (Typically 15 V). 4 HEATER– Negative Side of the Heater (Typically Grounded or –15 V). Not applicable CASE CASE. Shorted to HEATER− at Pin 4.
analog.com Rev. 0 | 5 of 11
