CBRHD SERIES. SURFACE MOUNT SILICON. HIGH DENSITY. 0.5 AMP. BRIDGE RECTIFIER. HD DIP CASE - MECHANICAL OUTLINE. DIMENSIONS
Línea de modelo para esta hoja de datos
Versión de texto del documento

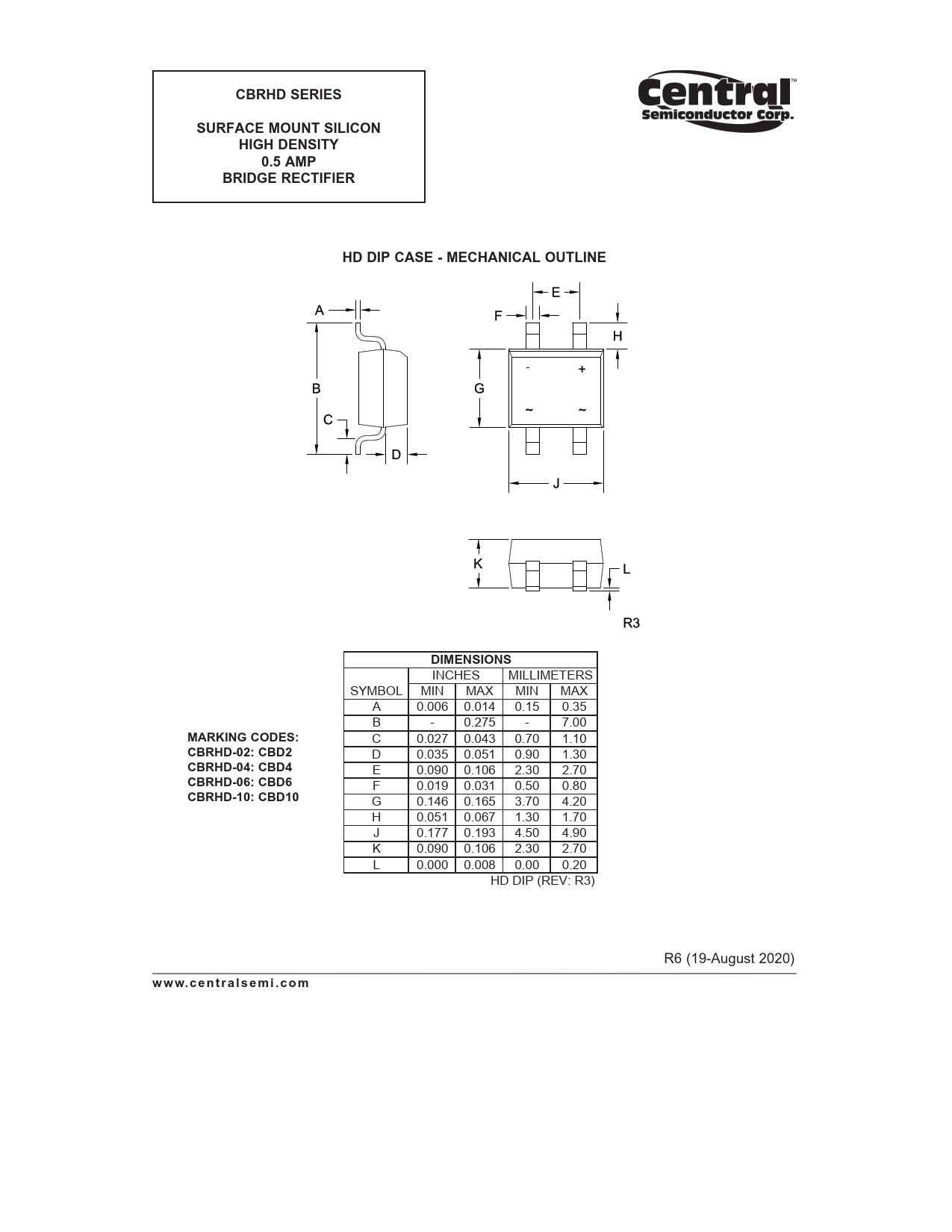

CBRHD SERIES SURFACE MOUNT SILICON HIGH DENSITY 0.5 AMP BRIDGE RECTIFIER HD DIP CASE - MECHANICAL OUTLINE DIMENSIONS
INCHES MILLIMETERS SYMBOL MIN MAX MIN MAX A 0.006 0.014 0.15 0.35 B - 0.275 - 7.00
MARKING CODES:
C 0.027 0.043 0.70 1.10
CBRHD-02: CBD2
D 0.035 0.051 0.90 1.30
CBRHD-04: CBD4
E 0.090 0.106 2.30 2.70
CBRHD-06: CBD6
F 0.019 0.031 0.50 0.80
CBRHD-10: CBD10
G 0.146 0.165 3.70 4.20 H 0.051 0.067 1.30 1.70 J 0.177 0.193 4.50 4.90 K 0.090 0.106 2.30 2.70 L 0.000 0.008 0.00 0.20 HD DIP (REV: R3) R6 (19-August 2020)
www.centralsemi.com
INCHES MILLIMETERS SYMBOL MIN MAX MIN MAX A 0.006 0.014 0.15 0.35 B - 0.275 - 7.00
MARKING CODES:
C 0.027 0.043 0.70 1.10
CBRHD-02: CBD2
D 0.035 0.051 0.90 1.30
CBRHD-04: CBD4
E 0.090 0.106 2.30 2.70
CBRHD-06: CBD6
F 0.019 0.031 0.50 0.80
CBRHD-10: CBD10
G 0.146 0.165 3.70 4.20 H 0.051 0.067 1.30 1.70 J 0.177 0.193 4.50 4.90 K 0.090 0.106 2.30 2.70 L 0.000 0.008 0.00 0.20 HD DIP (REV: R3) R6 (19-August 2020)
www.centralsemi.com
