Datasheet CBRHD-01 (Central Semiconductor) - 2
| Fabricante | Central Semiconductor |
| Descripción | Surface mount SILICON HIGH DENSITY 0.8 AMP BRIDGE RECTIFIER |
| Páginas / Página | 3 / 2 — CBRHD-01. SURFACE MOUNT SILICON. HIGH DENSITY. 0.8 AMP. BRIDGE RECTIFIER. … |
| Formato / tamaño de archivo | PDF / 440 Kb |
| Idioma del documento | Inglés |

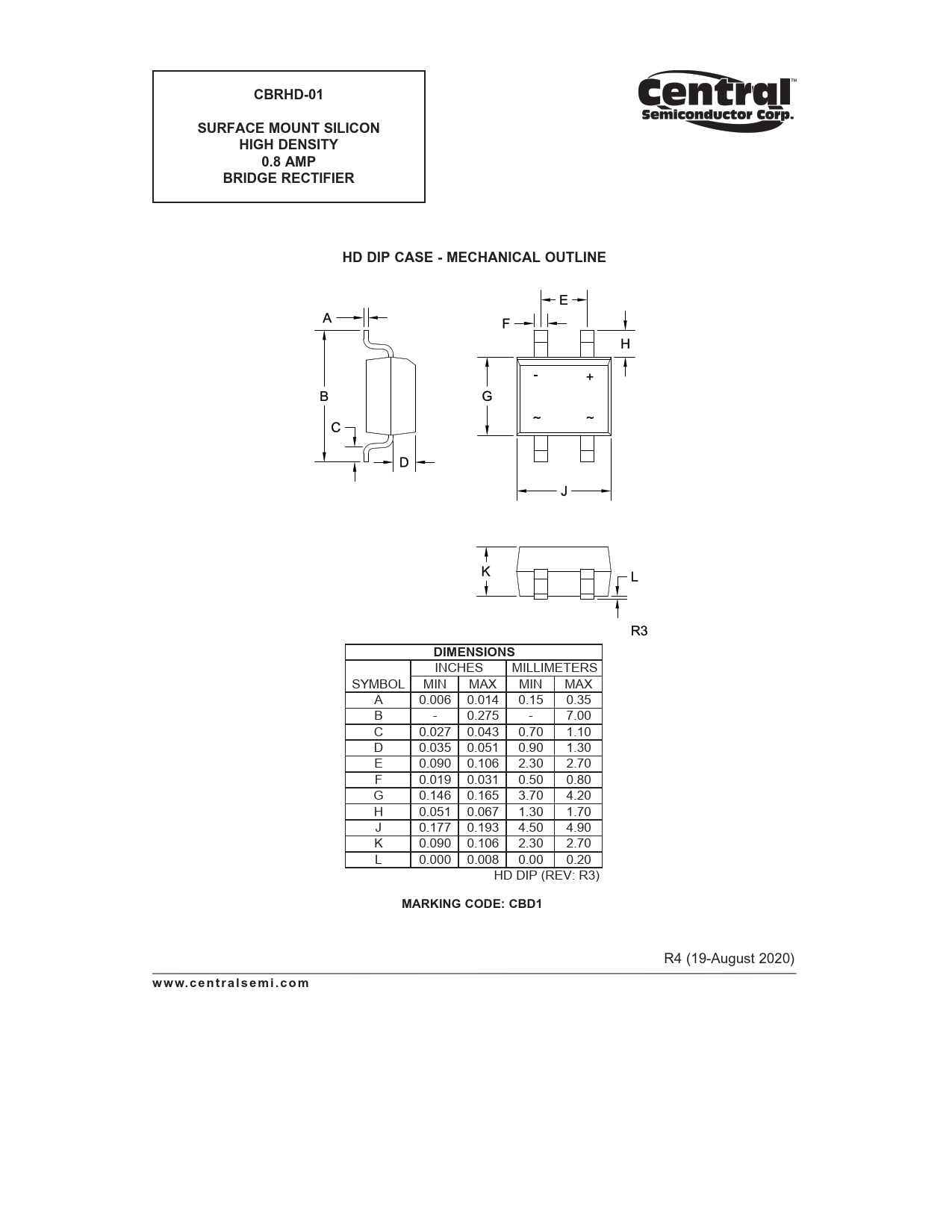

CBRHD-01. SURFACE MOUNT SILICON. HIGH DENSITY. 0.8 AMP. BRIDGE RECTIFIER. HD DIP CASE - MECHANICAL OUTLINE. DIMENSIONS
Línea de modelo para esta hoja de datos
Versión de texto del documento
CBRHD-01 SURFACE MOUNT SILICON HIGH DENSITY 0.8 AMP BRIDGE RECTIFIER HD DIP CASE - MECHANICAL OUTLINE DIMENSIONS
INCHES MILLIMETERS SYMBOL MIN MAX MIN MAX A 0.006 0.014 0.15 0.35 B - 0.275 - 7.00 C 0.027 0.043 0.70 1.10 D 0.035 0.051 0.90 1.30 E 0.090 0.106 2.30 2.70 F 0.019 0.031 0.50 0.80 G 0.146 0.165 3.70 4.20 H 0.051 0.067 1.30 1.70 J 0.177 0.193 4.50 4.90 K 0.090 0.106 2.30 2.70 L 0.000 0.008 0.00 0.20 HD DIP (REV: R3)
MARKING CODE: CBD1
R4 (19-August 2020)
www.centralsemi.com
INCHES MILLIMETERS SYMBOL MIN MAX MIN MAX A 0.006 0.014 0.15 0.35 B - 0.275 - 7.00 C 0.027 0.043 0.70 1.10 D 0.035 0.051 0.90 1.30 E 0.090 0.106 2.30 2.70 F 0.019 0.031 0.50 0.80 G 0.146 0.165 3.70 4.20 H 0.051 0.067 1.30 1.70 J 0.177 0.193 4.50 4.90 K 0.090 0.106 2.30 2.70 L 0.000 0.008 0.00 0.20 HD DIP (REV: R3)
MARKING CODE: CBD1
R4 (19-August 2020)
www.centralsemi.com
