Datasheet CBRDFSH1-40, CBRDFSH1-60, CBRDFSH1-100 (Central Semiconductor) - 2
| Fabricante | Central Semiconductor |
| Descripción | SURFACE MOUNT 1.0 AMP SILICON SCHOTTKY BRIDGE RECTIFIERS |
| Páginas / Página | 6 / 2 — CBRDFSH1-40. CBRDFSH1-60. CBRDFSH1-100. SURFACE MOUNT. 1.0 AMP SILICON. … |
| Formato / tamaño de archivo | PDF / 822 Kb |
| Idioma del documento | Inglés |
CBRDFSH1-40. CBRDFSH1-60. CBRDFSH1-100. SURFACE MOUNT. 1.0 AMP SILICON. SCHOTTKY BRIDGE RECTIFIERS
Línea de modelo para esta hoja de datos
Versión de texto del documento

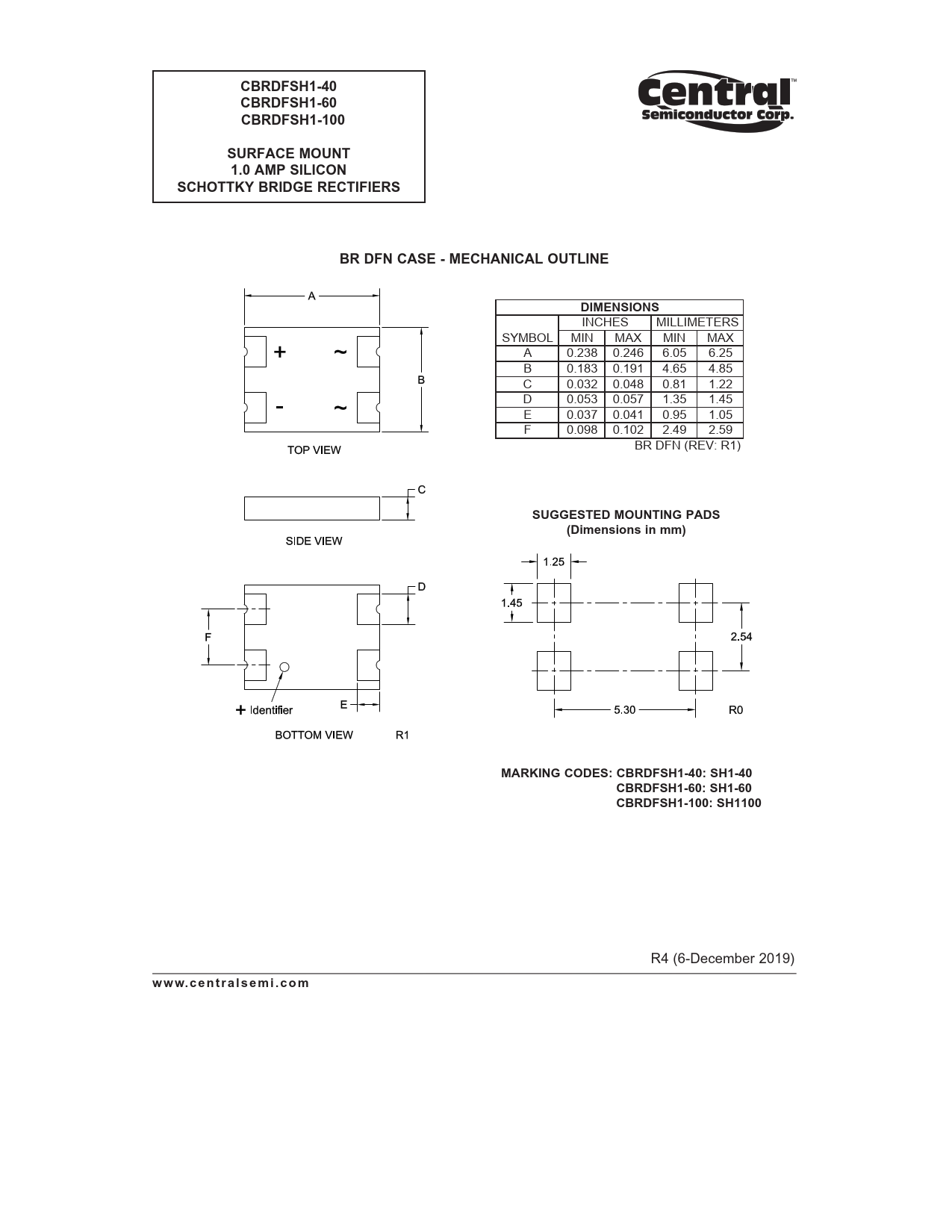

CBRDFSH1-40 CBRDFSH1-60 CBRDFSH1-100 SURFACE MOUNT 1.0 AMP SILICON SCHOTTKY BRIDGE RECTIFIERS BR DFN CASE - MECHANICAL OUTLINE DIMENSIONS
INCHES MILLIMETERS SYMBOL MIN MAX MIN MAX A 0.238 0.246 6.05 6.25 B 0.183 0.191 4.65 4.85 C 0.032 0.048 0.81 1.22 D 0.053 0.057 1.35 1.45 E 0.037 0.041 0.95 1.05 F 0.098 0.102 2.49 2.59 BR DFN (REV: R1)
SUGGESTED MOUNTING PADS (Dimensions in mm) MARKING CODES: CBRDFSH1-40: SH1-40 CBRDFSH1-60: SH1-60 CBRDFSH1-100: SH1100
R4 (6-December 2019)
www.centra lsemi.com
INCHES MILLIMETERS SYMBOL MIN MAX MIN MAX A 0.238 0.246 6.05 6.25 B 0.183 0.191 4.65 4.85 C 0.032 0.048 0.81 1.22 D 0.053 0.057 1.35 1.45 E 0.037 0.041 0.95 1.05 F 0.098 0.102 2.49 2.59 BR DFN (REV: R1)
SUGGESTED MOUNTING PADS (Dimensions in mm) MARKING CODES: CBRDFSH1-40: SH1-40 CBRDFSH1-60: SH1-60 CBRDFSH1-100: SH1100
