Datasheet MCR1101-5-3, MCR1101-20-3, MCR1101-50-3 (Aceinna) - 8
| Fabricante | Aceinna |
| Descripción | High Accuracy Current Sensor IC with 1.5MHz 3dB Bandwidth and Isolation ±5A, ±20A, ±50A, 3.3V, Ratiometric |
| Páginas / Página | 13 / 8 — Table 8 – PERFORMANCE CHARACTERISTICS- 5A VERSIONS (MCR1101-5-3). … |
| Formato / tamaño de archivo | PDF / 1.2 Mb |
| Idioma del documento | Inglés |

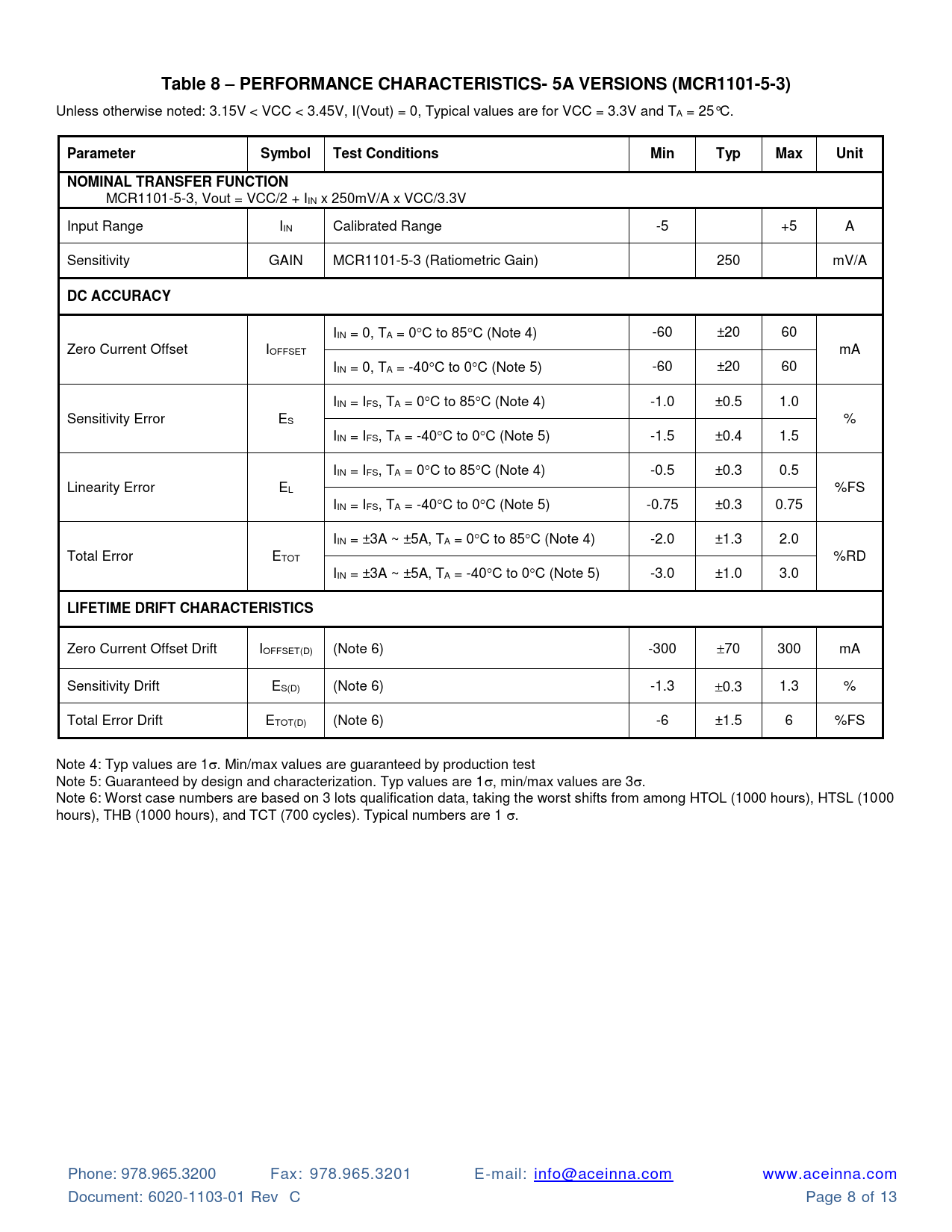

Table 8 – PERFORMANCE CHARACTERISTICS- 5A VERSIONS (MCR1101-5-3). Parameter. Symbol. Test Conditions. Min. Typ. Max. Unit
Línea de modelo para esta hoja de datos
Versión de texto del documento
Table 8 – PERFORMANCE CHARACTERISTICS- 5A VERSIONS (MCR1101-5-3)
Unless otherwise noted: 3.15V < VCC < 3.45V, I(Vout) = 0, Typical values are for VCC = 3.3V and TA = 25°C.
Parameter Symbol Test Conditions Min Typ Max Unit NOMINAL TRANSFER FUNCTION
MCR1101-5-3, Vout = VCC/2 + IIN x 250mV/A x VCC/3.3V Input Range IIN Calibrated Range -5 +5 A Sensitivity GAIN MCR1101-5-3 (Ratiometric Gain) 250 mV/A
DC ACCURACY
IIN = 0, TA = 0C to 85C (Note 4) -60 ±20 60 Zero Current Offset IOFFSET mA IIN = 0, TA = -40C to 0C (Note 5) -60 ±20 60 IIN = IFS, TA = 0C to 85C (Note 4) -1.0 ±0.5 1.0 Sensitivity Error ES % IIN = IFS, TA = -40C to 0C (Note 5) -1.5 ±0.4 1.5 IIN = IFS, TA = 0C to 85C (Note 4) -0.5 ±0.3 0.5 Linearity Error EL %FS IIN = IFS, TA = -40C to 0C (Note 5) -0.75 ±0.3 0.75 IIN = ±3A ~ ±5A, TA = 0C to 85C (Note 4) -2.0 ±1.3 2.0 Total Error ETOT %RD IIN = ±3A ~ ±5A, TA = -40C to 0C (Note 5) -3.0 ±1.0 3.0
LIFETIME DRIFT CHARACTERISTICS
Zero Current Offset Drift IOFFSET(D) (Note 6) -300 70 300 mA Sensitivity Drift ES(D) (Note 6) -1.3 0.3 1.3 % Total Error Drift ETOT(D) (Note 6) -6 ±1.5 6 %FS Note 4: Typ values are 1. Min/max values are guaranteed by production test Note 5: Guaranteed by design and characterization. Typ values are 1, min/max values are 3. Note 6: Worst case numbers are based on 3 lots qualification data, taking the worst shifts from among HTOL (1000 hours), HTSL (1000 hours), THB (1000 hours), and TCT (700 cycles). Typical numbers are 1 . Phone: 978.965.3200 Fax: 978.965.3201 E-mail: info@aceinna.com www.aceinna.com Document: 6020-1103-01 Rev C Page 8 of 13
