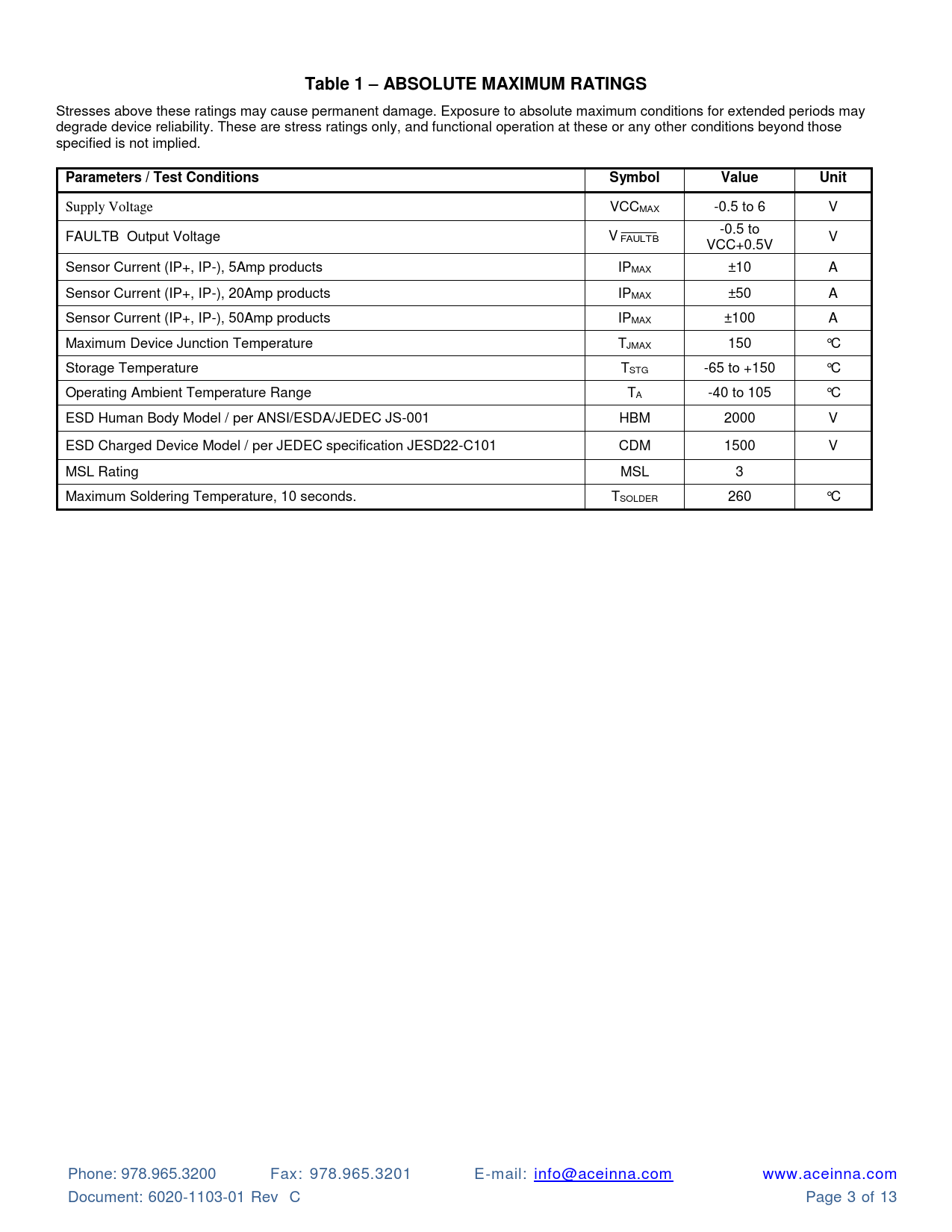

Table 1 –ABSOLUTE MAXIMUM RATINGS Stresses above these ratings may cause permanent damage. Exposure to absolute maximum conditions for extended periods may degrade device reliability. These are stress ratings only, and functional operation at these or any other conditions beyond those specified is not implied. Parameters / Test ConditionsSymbolValueUnit Supply Voltage VCCMAX -0.5 to 6 V -0.5 to FAULTB Output Voltage V FAULTB V VCC+0.5V Sensor Current (IP+, IP-), 5Amp products IPMAX ±10 A Sensor Current (IP+, IP-), 20Amp products IPMAX ±50 A Sensor Current (IP+, IP-), 50Amp products IPMAX ±100 A Maximum Device Junction Temperature TJMAX 150 °C Storage Temperature TSTG -65 to +150 °C Operating Ambient Temperature Range TA -40 to 105 °C ESD Human Body Model / per ANSI/ESDA/JEDEC JS-001 HBM 2000 V ESD Charged Device Model / per JEDEC specification JESD22-C101 CDM 1500 V MSL Rating MSL 3 Maximum Soldering Temperature, 10 seconds. TSOLDER 260 °C Phone: 978.965.3200 Fax: 978.965.3201 E-mail: info@aceinna.com www.aceinna.com Document: 6020-1103-01 Rev C Page 3 of 13
